Features

Specifications

Material: Stainless Steel, Cast Iron

Dimension: 1100*1100*1400mm

Filter Media: Polypropylene

Filtration Efficiency: 99.9% @1um

Filter Quantity: 14 Pcs

Filter Size: 143*900mm

Filter Area: 20m2

Maintenance Height: 1150mm

Installation Type: Push In

Cover Type: Hinged

Body Design: Outdoor Installation

Body Protection: Anti-rain

Filter Material: Polypropylene

Filter Length: 900mm

Filter Width: 143mm

Highlight:

stainless steel silo bin vent

dust collector for concrete batching

Basic Infomation

Place of Origin: China

Certification: ISO 9001, ISO14001,CE

Payment & Shipping Terms

Gallery

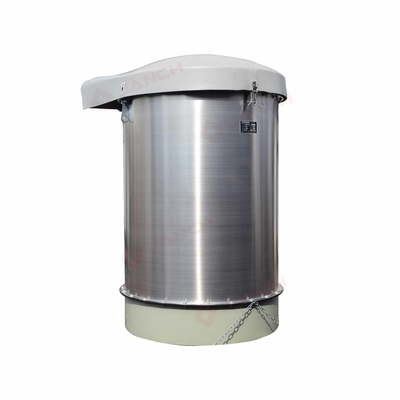

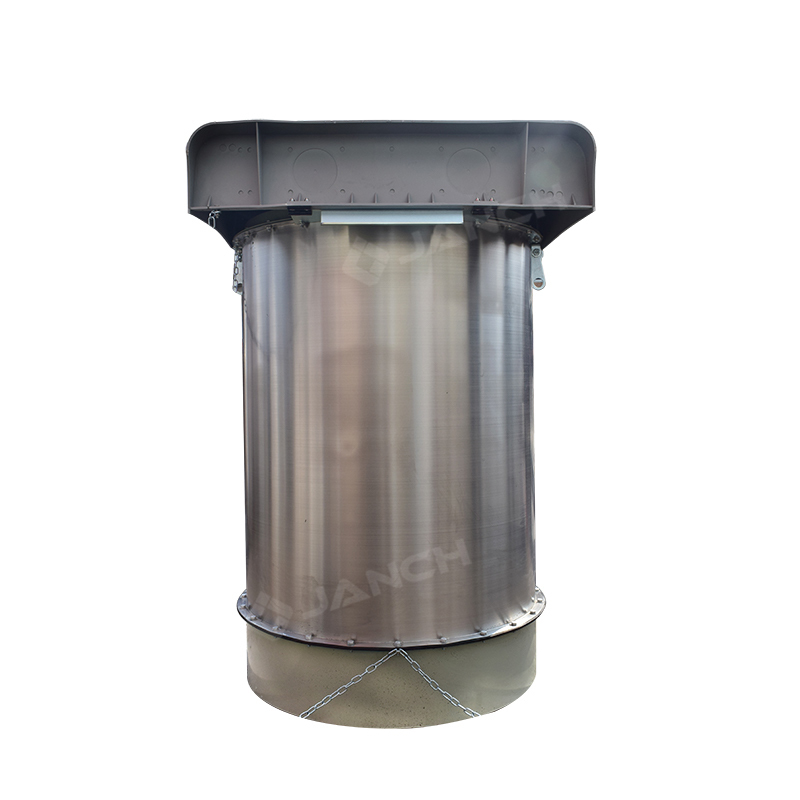

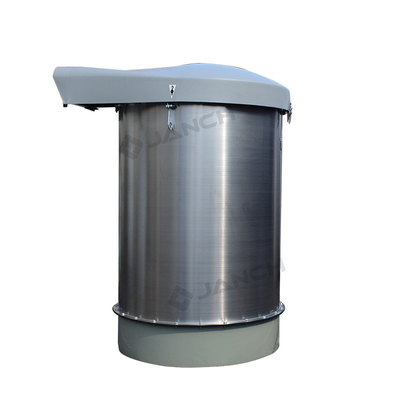

Silo Bin Vent Dust Collector 1100x1100x1400mm Stainless Steel

Product Description

Product Name & Concept: The Dust Collector is an essential air pollution control device designed to capture and remove airborne dust particles generated during the concrete production process.
Purpose: It is primarily used on cement silos, mixers, and conveying points to maintain air quality and meet environmental standards.
Key Advantages: Effectively reduces visible dust emissions. Helps comply with environmental regulations and promotes a cleaner, safer working environment.

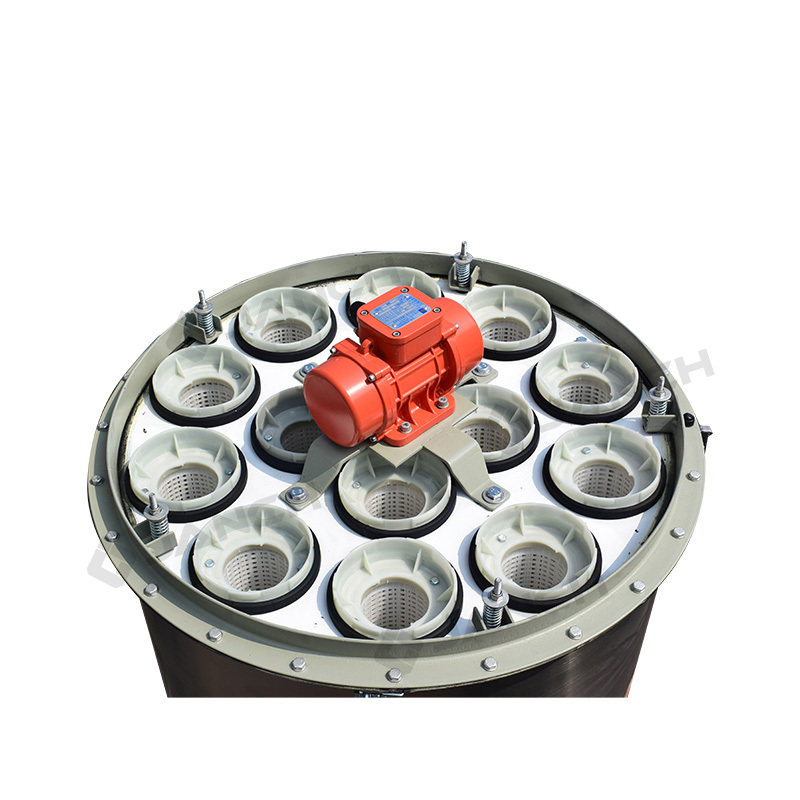

Vibrated Silo Venting Filters with Vibration Cleaning Shaking SiloTop Dust Collector

High-performance dust collection system designed for silo applications with vibration cleaning mechanism for efficient operation.

Key Features

Stainless Steel Body: Outdoor installation design with anti-rain and robust protection
High Quality Filter Media: Polypropylene filter material with 99.9% efficiency @1μm
Large Filter Area: 14 pieces of 143×900mm filters providing 20m² total filtration area
Push-In Filter Installation: Easy installation and maintenance with 3.8ft (1150mm) maintenance height
Hinged Cover Design: Durable, easy-opening cover with long-lasting anti-rain protection

Product Images
