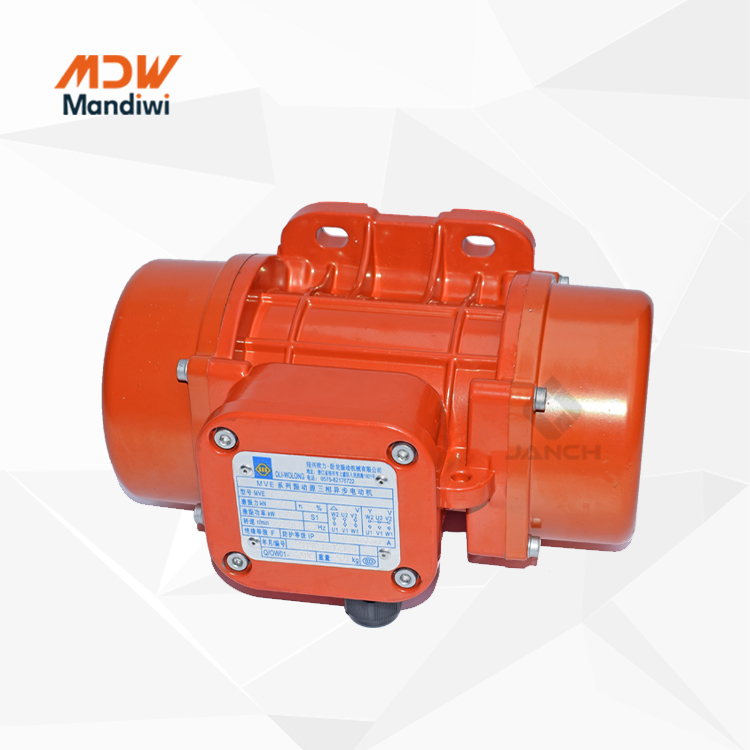

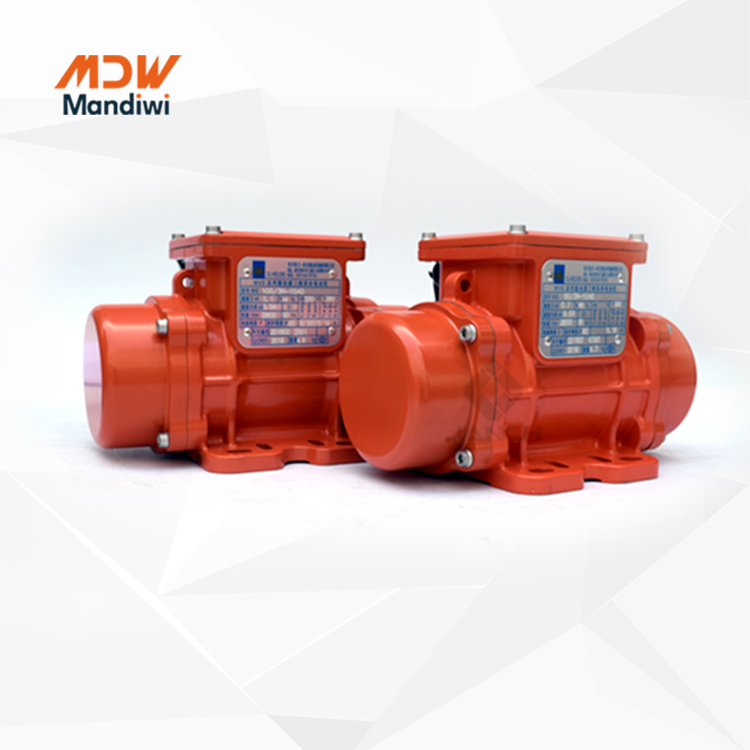

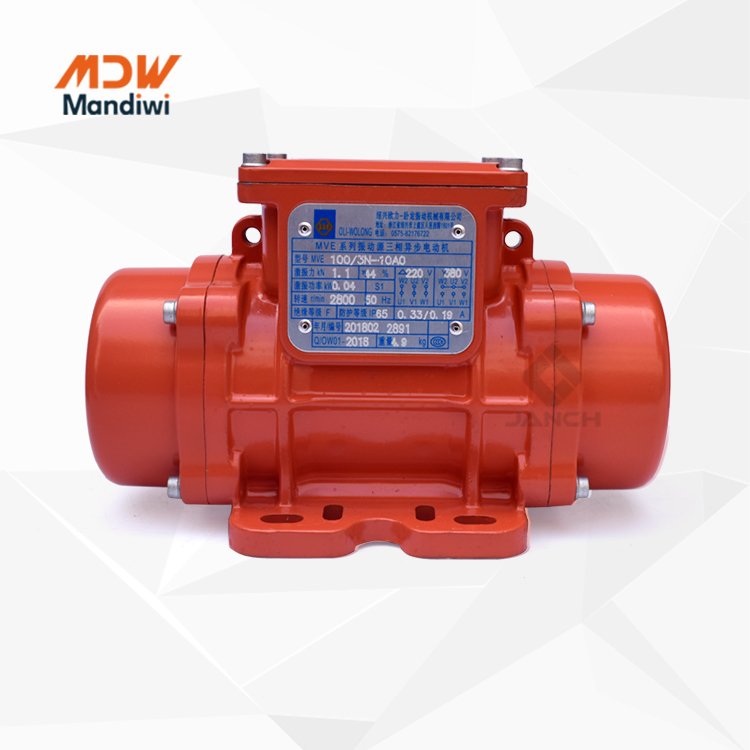

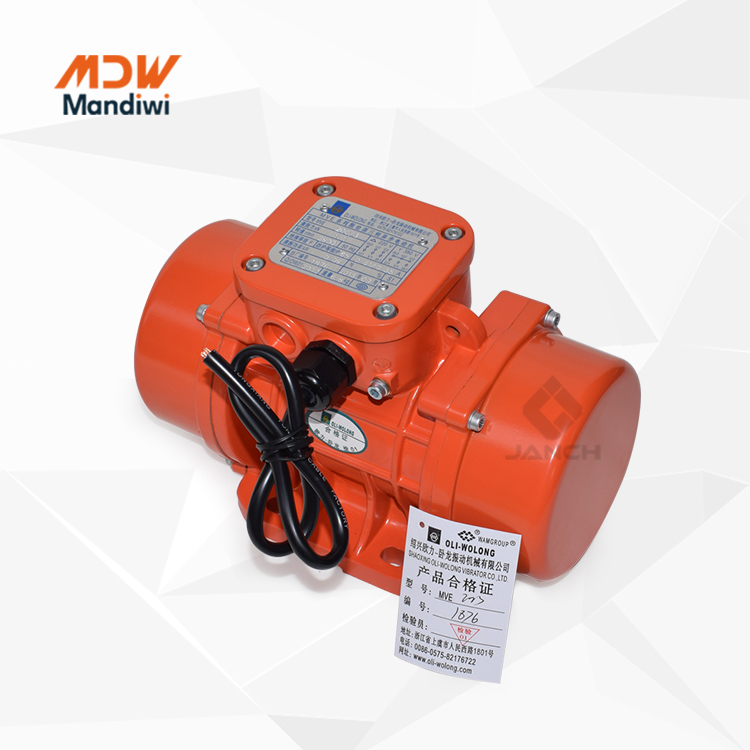

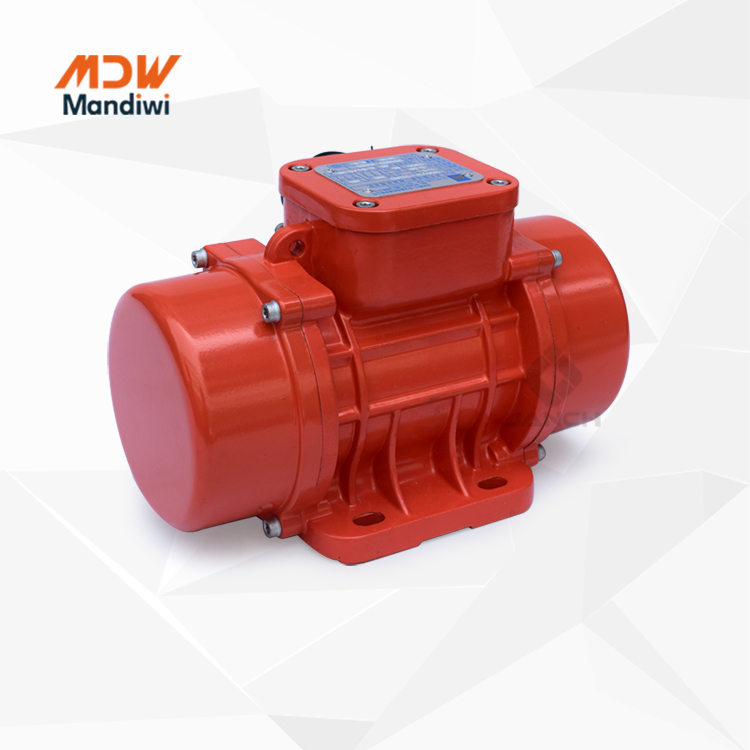

Name: OLI External Electric Vibrator 220V/380V 4.8kg for Construction Mining
Brand: Hunan Jiancheng Technology Co., Ltd
Price: 65.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Drive Mode: Electric Vibrator

Frequency: 50HZ/60HZ

Voltage: 220V/380V Or Customized

Weight: 4.8 Kg

Vibration Force: 1KN/2KN/Customize

Poles: 2/4/6/8poles

Speed: 3000rpm

Core Components: Bearing, Motor

IP Rating: IP65

Model Range: MVE60/3 To MVE1600/3

Power Range: 0.04kw To 1.25kw

Current Range: 0.25A To 2.94A

Size Range: 10A0 To 60A0

Force Range: 0.7kN To 16kN

Type: External

Highlight:

external electric vibrator for construction

380V concrete vibrator 4.8kg

mining vibrator with warranty

Basic Infomation

Place of Origin: China

Brand Name: Mandiwi, Oli, etc

Payment & Shipping Terms

Gallery

OLI External Electric Vibrator 220V/380V 4.8kg for Construction Mining

Product Description

Product Name & Concept: The Low-Maintenance Vibration Motor is designed for continuous operation with minimal service requirements.
Purpose: It is used to dislodge material stuck to the walls of hoppers and silos, aiding in complete discharge.
Key Advantages: Features a sealed design that protects against dust and moisture. Offers energy-efficient operation and long service intervals, lowering the total cost of ownership

OLI Multiple Voltages External Horizontal Electric Vibrator

MVE Series Vibration Motor - OLI-WOLONG Original

Electric motovibrators for vibrating equipment. Standard MVE series with multiple voltage options available.

Key Specifications

Available in 2/4/6/8 poles
Speed options: 3000/1500/1000/750 rpm
IP65 protection rating

Technical Parameters

Model	Force (kg)	Force (kN)	Power (kw)	Speed (r/min)	Current (A max)	Weight (Kg)	Size
MVE60/3 -10A0	71	0.7	0.04	2800	0.25	4.7	10A0
MVE100/3-10A0	102	1	0.04	2800	0.25	4.9	10A0
MVE200/3-10A0	102	1	0.09	2800	0.35	6.6	10A0
MVE200/3-20A0	204	2	0.09	2900	0.35	6.6	20A0
MVE300/3 -30A0	306	3	0.16	2800	0.52	10.2	30A0
MVE400/3 -30A0	408	4	0.2	2800	0.58	11	30A0
MVE500/3 -40A0	510	5	0.37	2800	0.96	16	40A0
MVE700/3 -40A0	714	7	0.45	2800	1.25	16.8	40A0
MVE800/3 -50A0	815	8	0.55	2800	1.45	20.1	50A0
MVE1200/3 -50A0	1019	10	0.75	2800	1.85	21.8	50A0
MVE1300/3 -50A0	1325	13	1.1	2800	2.44	23.9	50A0
MVE1600/3 -60A0	1631	16	1.25	2800	2.94	54	60A0

Applications

Manufacturer Profile

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, provides cost-effective, high-quality products including Valves, Level Monitoring Components, Vibrators, Dust Filters, Screw Conveyors, and Concrete Mixers.

After years of development, MDW has established cooperation with internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, and exports to Europe, North America, South Asia, West Asia, Middle East, and Africa.

Design philosophy: 'Focus, Simplicity, Efficiency and Reliability'

Company mission: 'Escorting the operation of the mixing station and creating maximum value for customers'
