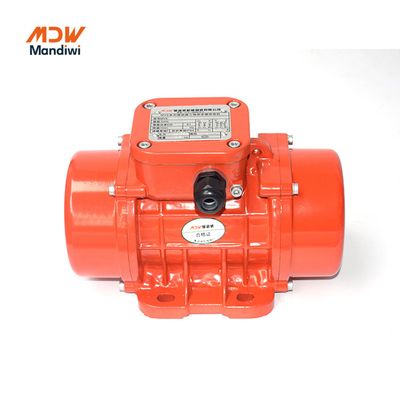

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators

5 pieces
MOQ
$60.00/pieces 5-9 pieces
Price
60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining, Other
Showroom Location: None
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pressure Vessel
Condition: New
Type: External
Drive Mode: Electric Vibrator
Frequency: 740-18000rpm As Options
Voltage: 200-600V As Options
Weight: 25 Kg
Dimension(L*W*H): 60*34*32
Warranty: 1 Year
UNIQUE SELLING POINT: High Operating Efficiency
After-sales Service Provided: No Overseas Service Provided
Color: Orange Or Customized
Packing: Carton Box
Item: Concrete Bricks Making Machine Vibrating Table
Vibrating Frequency: 2900-6600vil/min
Vibrating Speed: 2860times/min
Highlight:

60*34*32 Size Concrete Vibrating Motor

,

Cement Bin Concrete Vibrating Motor

,

External Electric Vibrators

Basic Infomation
Place of Origin: China
Brand Name: Oli
Payment & Shipping Terms
Packaging Details: 1set per master carton, with a water-proof bag protect the vibrator
Delivery Time: 15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators





Product Description

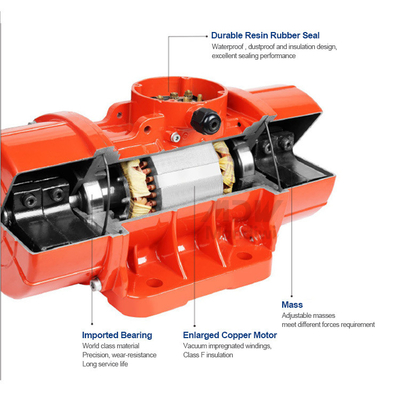

MDW electric vibrating motors were designed and assembled availing of the most recent technologies and using top quality materials and components. The motor casings, the support flanges and the shafts were designed according to FMEA criteria and are assembled using top quality aluminium alloys, cast iron and steel alloys, to allow the vibrator to deal with high intensity applications and guarantee safe operations in every condition.



60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 0

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 1

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 2

Product Parameters:



Model

Force

Power

Speed Rpm

Current

Weight

Size

kg

kN

kw

r/min

(A max)

(Kg)

MVE60/3 -10A0

71

0.7

0.04

2800

0.25

4.7

10A0

MVE100/3-10A0

102

1

0.04

2800

0.25

4.9

10A0

MVE200/3-10A0

102

1

0.09

2800

0.35

6.6

10A0

MVE200/3-20A0

204

2

0.09

2900

0.35

6.6

20A0

MVE300/3 -30A0

306

3

0.16

2800

0.52

10.2

30A0

MVE400/3 -30A0

408

4

0.2

2800

0.58

11

30A0

MVE500/3 -40A0

510

5

0.37

2800

0.96

16

40A0

MVE700/3 -40A0

714

7

0.45

2800

1.25

16.8

40A0

MVE800/3 -50A0

815

8

0.55

2800

1.45

20.1

50A0

MVE1200/3 -50A0

1019

10

0.75

2800

1.85

21.8

50A0

MVE1300/3 -50A0

1325

13

1.1

2800

2.44

23.9

50A0

MVE1600/3 -60A0

1631

16

1.25

2800

2.94

54

60A0



Applications:



Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.



60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 3

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 4

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 5

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 6

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 7

Company Profile

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators 8

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.



After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
