220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff

5 pieces
MOQ
$55.00/pieces 5-49 pieces
Price
220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor
Condition: New
Type: External
Drive Mode: Electric Vibrator
Frequency: 50HZ/60HZ
Voltage: 220V/380V, 220V/380V/ Or Customized
Weight: 4.8 Kg
Warranty: 1 Year
UNIQUE SELLING POINT: High Operating Efficiency
Vibration Frequency: 50HZ/60HZ
Application: Construction Mining Foodstuff Industries
Vibration Force: 1KN/2KN/Customize
Poles: 2/4/6/8poles
Speed: 3000rpm
Highlight:

380V Electric Vibrating Motors

,

220V Electric Vibrating Motors

,

Mining Electric Vibrating Motors

Basic Infomation
Place of Origin: China
Brand Name: Mandiwi, Oli, etc
Payment & Shipping Terms
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

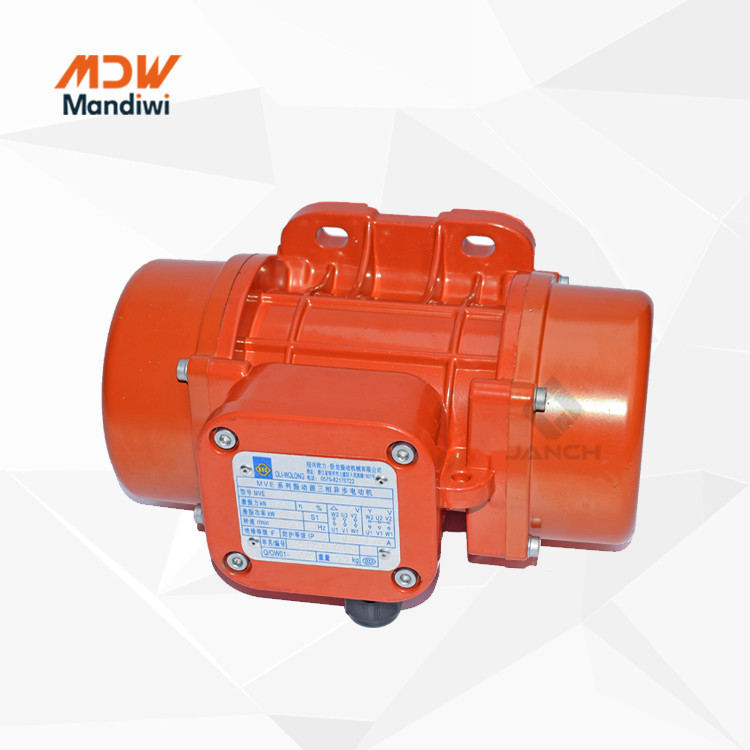

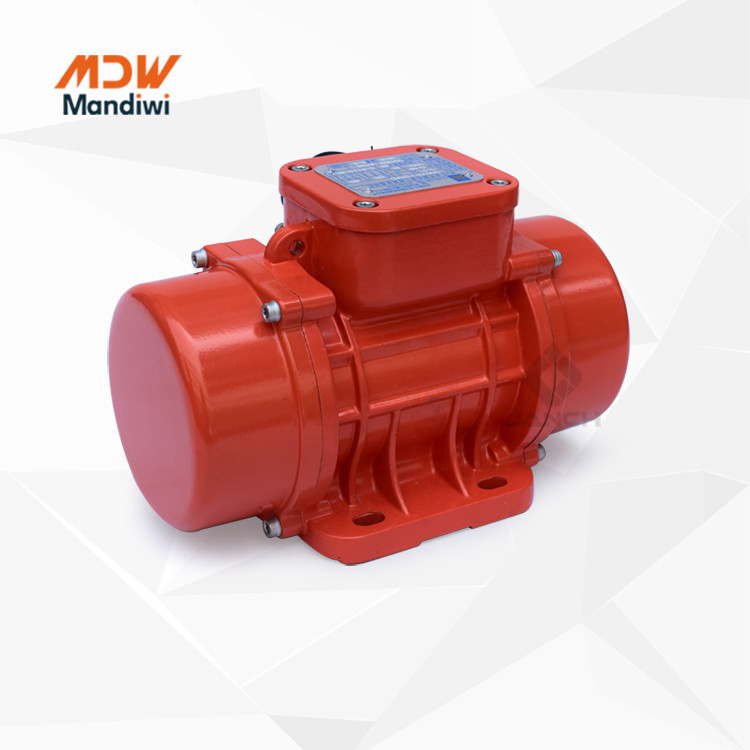

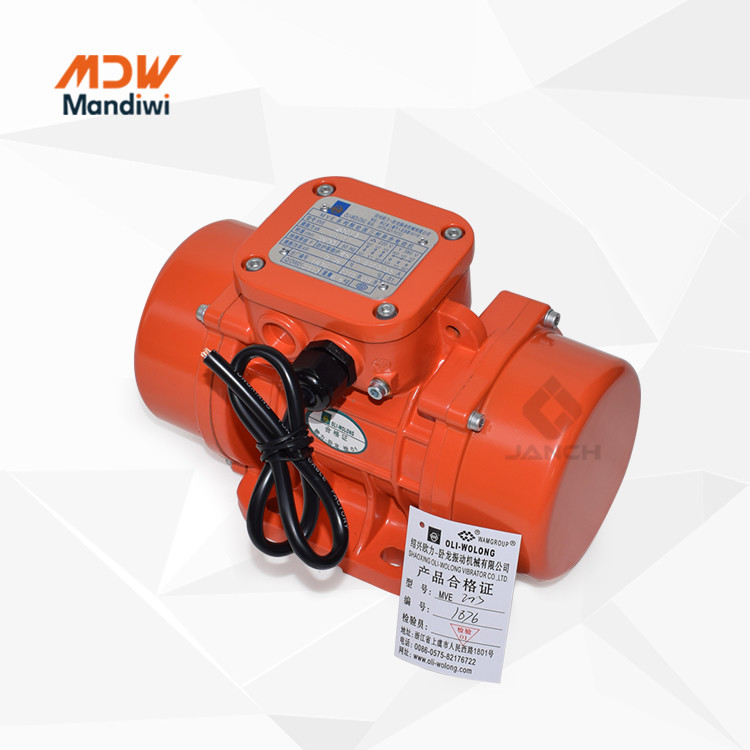

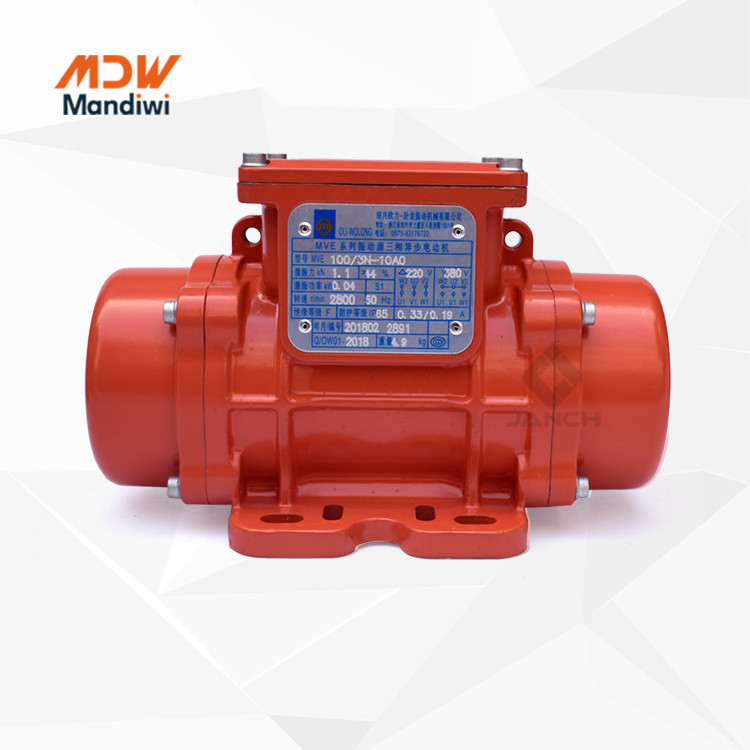

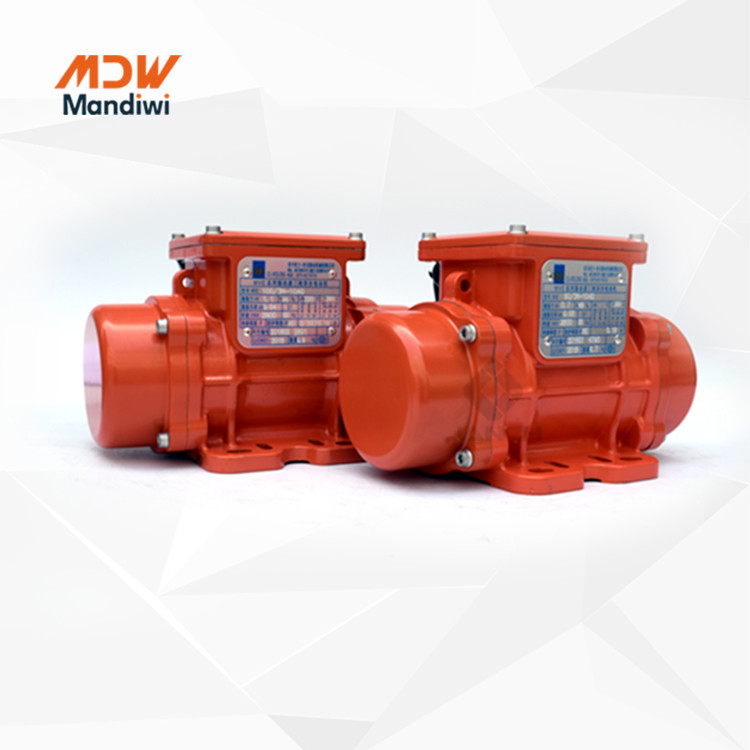

220V/380V OLI External Electric Vibrator For Construction Mining Foodstuff Application







Products Description



MVE series Vibration Motor-OLI-WOLONG Original

Electric motovibrators for vibrating equipments. Standard, MVE series

Multiple voltage available.

HAVE 2/4/6/8 poles,

Speed 3000/1500/1000/750 rpm

IP65





QUALITY

World class materials, Class F insulation, Durable sealing

Premium bearings

Vacuum insulation,  FMEA analysis, 3D quality check



EFFICIENCY

Optimised power/weight ratio, S1 continuous duty service

Optimized electric design



RELIABILITY

PTC thermistor 130 °C

Specific grease retaining device,

IP66 protection, Class F insulation



FLEXIBILITY

Easy mass adjustment

Various voltages and frequencies available





220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 0

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 1

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 2

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 3



Product Parameters:



Model Force Power Speed Rpm Current Weight Size
kg kN kw r/min (A max) (Kg)
MVE60/3 -10A0 71 0.7 0.04 2800 0.25 4.7 10A0
MVE100/3-10A0 102 1 0.04 2800 0.25 4.9 10A0
MVE200/3-10A0 102 1 0.09 2800 0.35 6.6 10A0
MVE200/3-20A0 204 2 0.09 2900 0.35 6.6 20A0
MVE300/3 -30A0 306 3 0.16 2800 0.52 10.2 30A0
MVE400/3 -30A0 408 4 0.2 2800 0.58 11 30A0
MVE500/3 -40A0 510 5 0.37 2800 0.96 16 40A0
MVE700/3 -40A0 714 7 0.45 2800 1.25 16.8 40A0
MVE800/3 -50A0 815 8 0.55 2800 1.45 20.1 50A0
MVE1200/3 -50A0 1019 10 0.75 2800 1.85 21.8 50A0
MVE1300/3 -50A0 1325 13 1.1 2800 2.44 23.9 50A0
MVE1600/3 -60A0 1631 16 1.25 2800 2.94 54 60A0





Application:



Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.



220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 4

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 5

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 6



Our Advantages

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 7

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 8

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 9

Company Profile

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 10

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.



After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 11

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 12

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 13

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 14

Certifications

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 15

Exhibition

220V/380V OLI External Electric Vibrating Motors For Construction Mining Foodstuff 16
