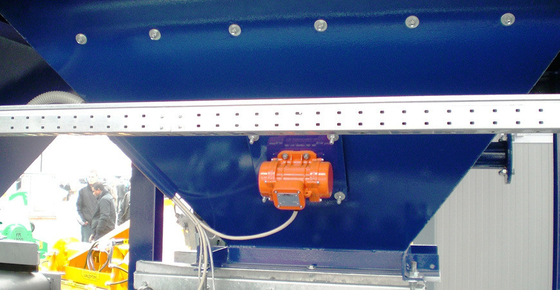

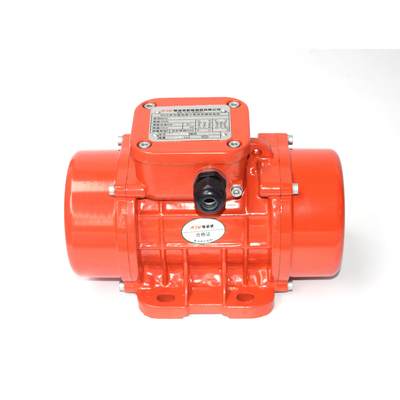

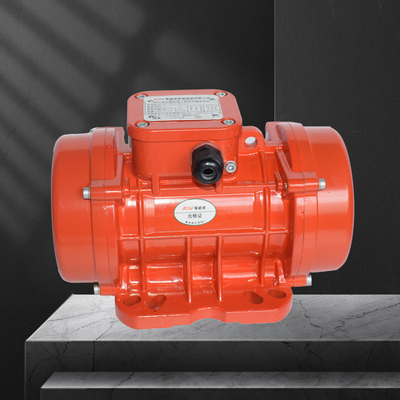

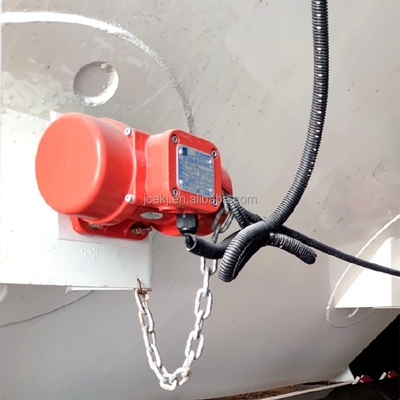

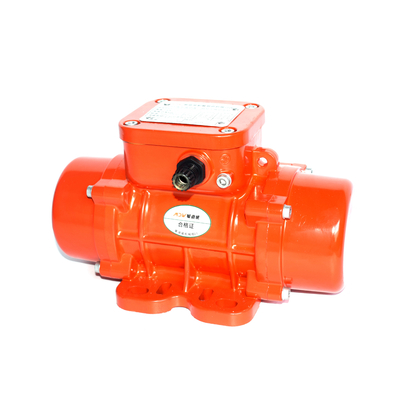

Mandiwi Electric Vibration Motors for Cement Silo Bin Hoppers 25 kg Frequency 740-18000rpm

Features

• Centrifugal force: 20 ~ 26,000 kg
• Voltages 12 and 24 VDC, from 220 to 690VAC

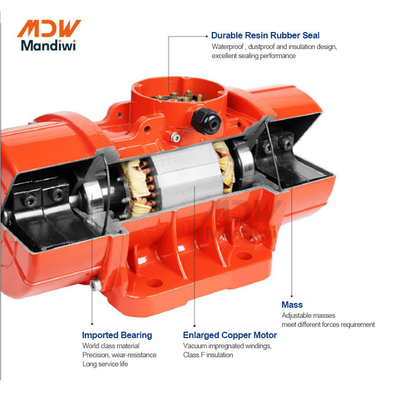

• Windings impregnated under vacuum with class F insulating materials
• Optimized design and components for demanding applications.

Advantages

• Greased for life = Zero maintenance *
• Wide range of centrifugal forces for all applications
• Different voltages available for global applications

* for special applications contact our technical service

Options

• 2, 4, 6, 8 poles, three-phase
• 2 single phase poles
• Direct current

Accessories

• Standard PTC from size 60 (available on request for smaller sizes)
• Half-Split covers for quick mass adjustment – on request from size 60
• Stainless steel covers on request from size 23
• Anti-corrosion painting for ” food ” applications
• Extended motor shaft for connection of multiple units with mechanical coupling

• Product Parameters:



  Model	Force		Power	Speed Rpm	Current	Weight	Size
  	kg	kN	kw	r/min	(A max)	(Kg)
  MVE60/3 -10A0	71	0.7	0.04	2800	0.25	4.7	10A0
  MVE100/3-10A0	102	1	0.04	2800	0.25	4.9	10A0
  MVE200/3-10A0	102	1	0.09	2800	0.35	6.6	10A0
  MVE200/3-20A0	204	2	0.09	2900	0.35	6.6	20A0
  MVE300/3 -30A0	306	3	0.16	2800	0.52	10.2	30A0
  MVE400/3 -30A0	408	4	0.2	2800	0.58	11	30A0
  MVE500/3 -40A0	510	5	0.37	2800	0.96	16	40A0
  MVE700/3 -40A0	714	7	0.45	2800	1.25	16.8	40A0
  MVE800/3 -50A0	815	8	0.55	2800	1.45	20.1	50A0
  MVE1200/3 -50A0	1019	10	0.75	2800	1.85	21.8	50A0
  MVE1300/3 -50A0	1325	13	1.1	2800	2.44	23.9	50A0
  MVE1600/3 -60A0	1631	16	1.25	2800	2.94	54	60A0



Applications

Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.
