Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

5 pieces
MOQ
$68.00/pieces 5-29 pieces
Price
Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank
Features Gallery Product Description Request A Quote
Features
Specifications
Application: General, Fixed On Silo Top, Different Indusries Available
Port Size: 273mm
Warranty: 1years
Power: Pneumatic
Structure: Safety
Customized Support: OEM, ODM
Product Name: Spring-loaded Pressure Relief Valves
Body Diameter: 273mm (10in)
Material: Stainless Steel
Air Volume: Up To 7000m³/h(4120CFM)
Negaive Pressure: -0.005 Bar (0.07psi)
Excess Pressure: +0.05Bar (0.72psi)
Color: White, Silver, Yellow, Or Customized
Highlight:

Silo Top Pressure Relief Valves

,

Automatic Pressure Relief Valves

,

Cement Tank Pressure Relief Valves

Basic Infomation
Place of Origin: China
Brand Name: MDW, WAM
Model Number: VCP2731B
Payment & Shipping Terms
Packaging Details: Carton packing, 1set/carton
Delivery Time: 10-15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

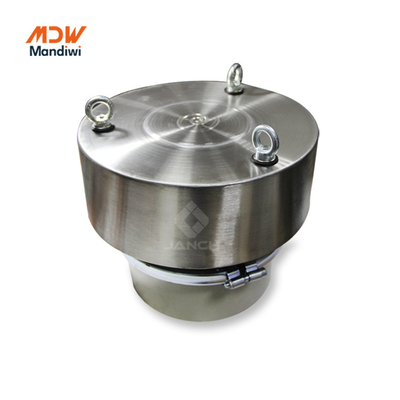

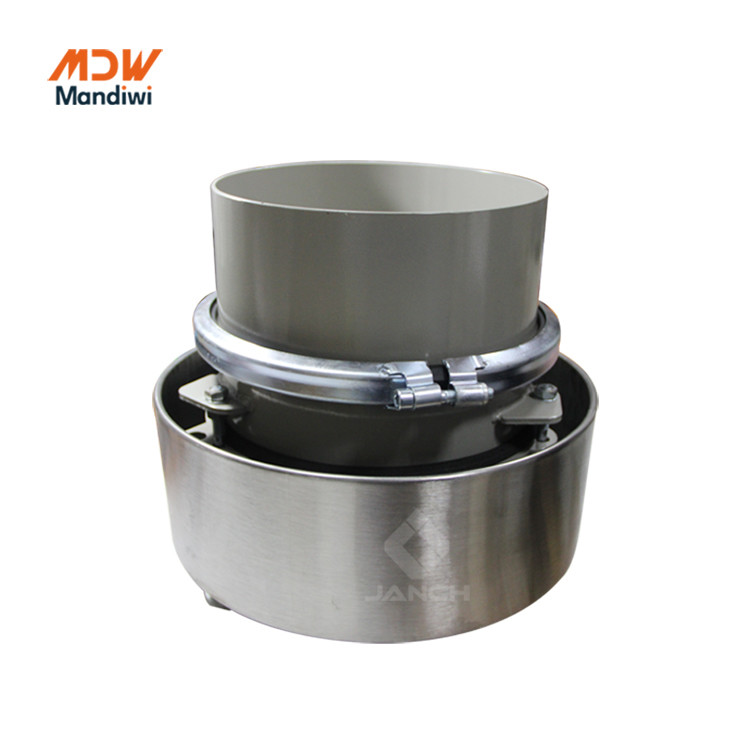

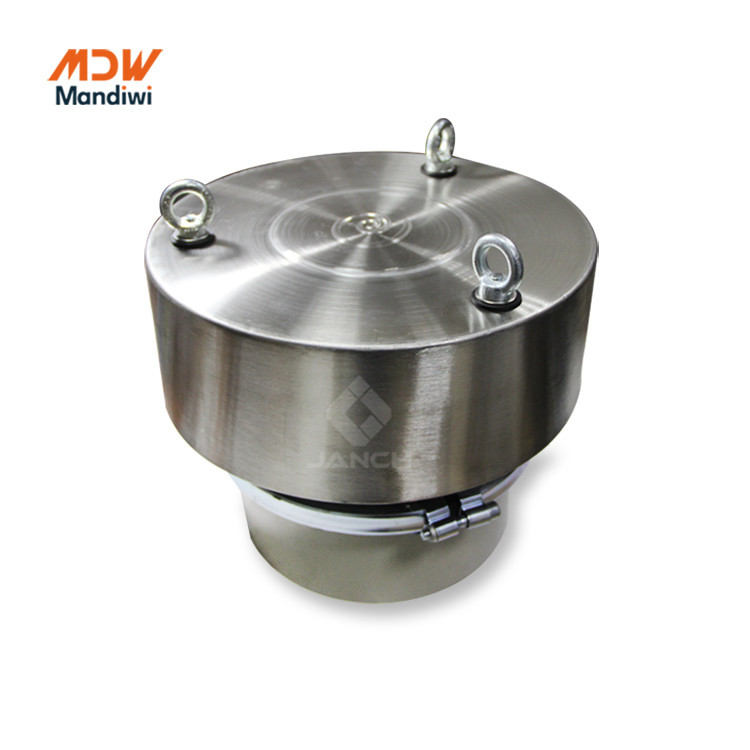

White Gravity Explosion Automatic Silo Top Pressure Relief Valve For Safety Cement Tank

Products Description

Mandiwi (MDW) Silo safeguard, Silotop Pressure Relief Valves.

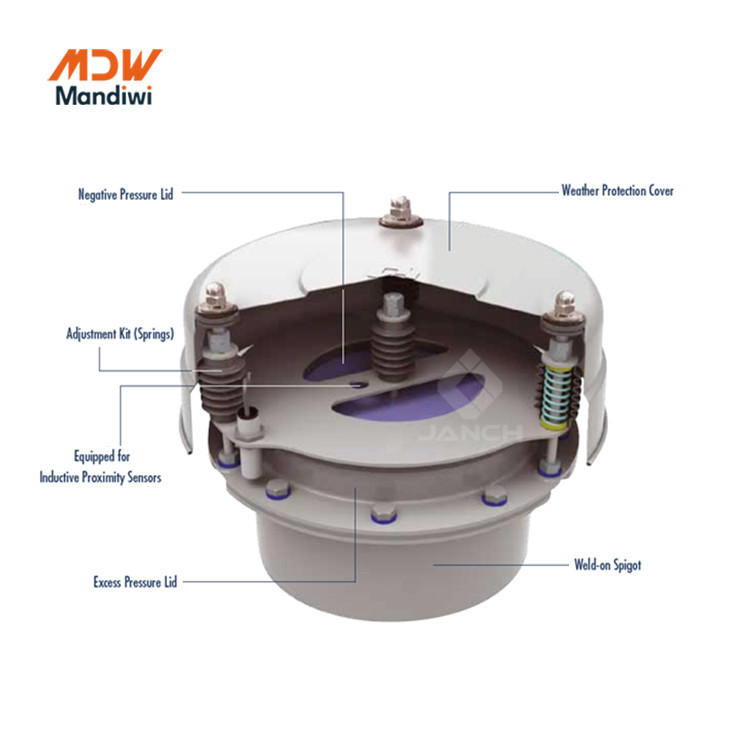

Spring-loaded pressure relief valves,

- Painted mild-steel or 304 stainless steel casing material

- Stainless-steel weather protection cover
- Adjustment Kit (Springs)

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 0

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 1

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 2

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 3

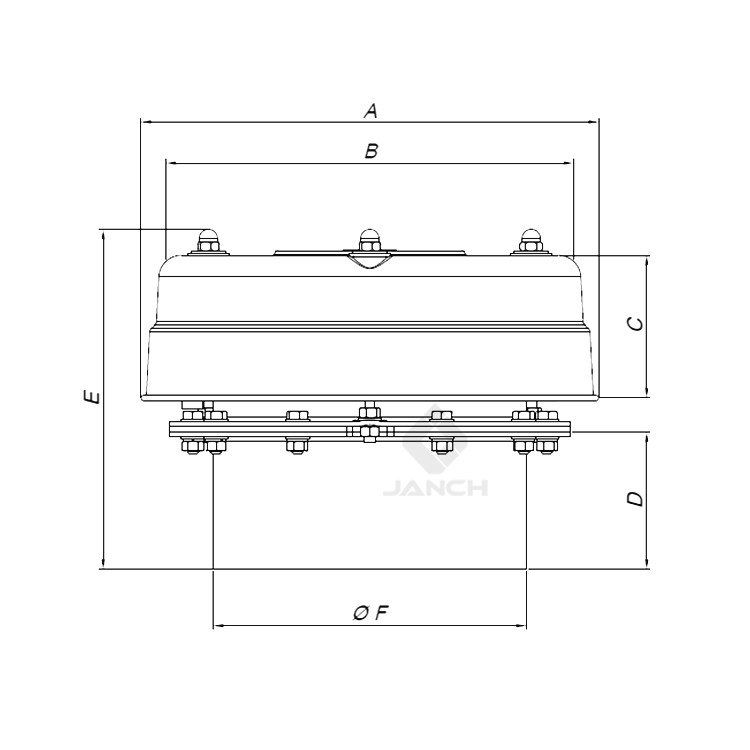

SIZE 273

(mm)

A

400

B

356

C

125

D

120

E

325

φF

273

NW(kg)

9.5

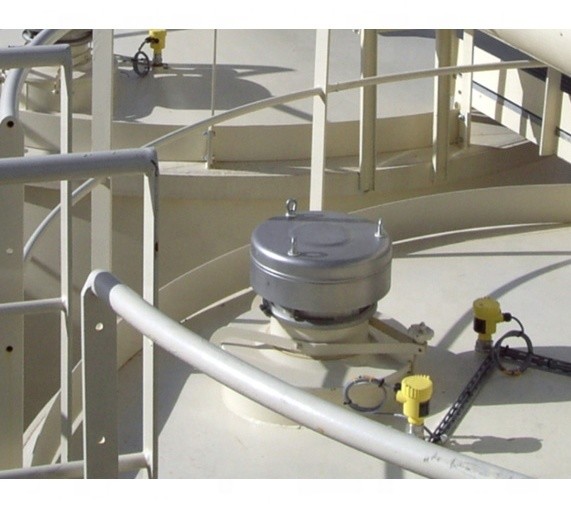

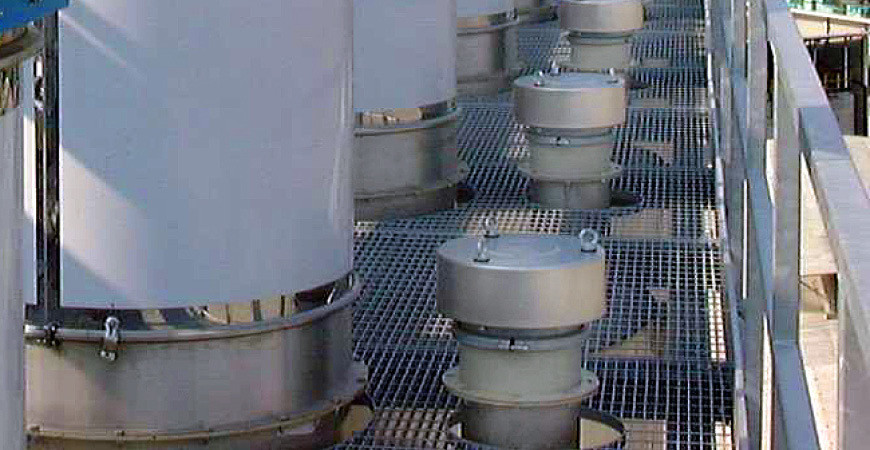

Application

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 4

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 5

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 6

Packaging and Shipment



Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 7

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 8





Exhibition

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 9

Company Profile

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank 10

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.



After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
