Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Product Summary
Explosion-Proof Valve For Cement Silo Top Pressure Relief In Concrete Batching Plants Products Description: MDW Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure ...
Product Custom Attributes
Condition:
New
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Warranty:
1 Year
Product Name:
Spring-loaded Pressure Relief Valves
Body Diameter:
273mm (10in)
Material:
Carbon Steel
Air Volume:
Up To 7000m³/h(4120CFM)
Negaive Pressure:
-0.005 Bar (0.07psi)
Excess Pressure:
+0.05Bar (0.72psi)
Application:
Fixed On Silo Top, Different Indusries Available
Highlight:
Explosion Proof Pressure Relief Valves
,Concrete Batching Plants Pressure Relief Valves
,Cement Silo Top Pressure Relief Valves
Basic Properties
Place of Origin:
China
Brand Name:
Mandiwi, WAM
Model Number:
273
Trading Properties
Minimum Order Quantity:
5 pieces
Price:
$56.00/pieces 5-29 pieces
Packaging Details:
Carton packing, 1set/carton
Delivery Time:
10-15 working days
Payment Terms:
T/T, LC, Trade assurance Order, Western Union
Product Description
Explosion-Proof Valve For Cement Silo Top Pressure Relief In Concrete Batching Plants
Products Description:

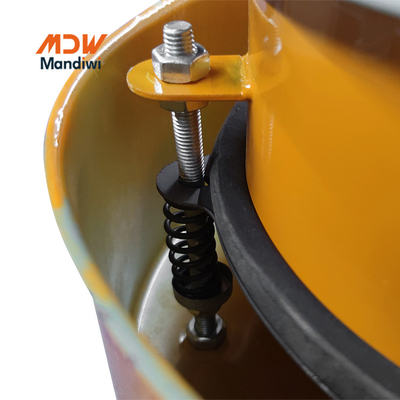

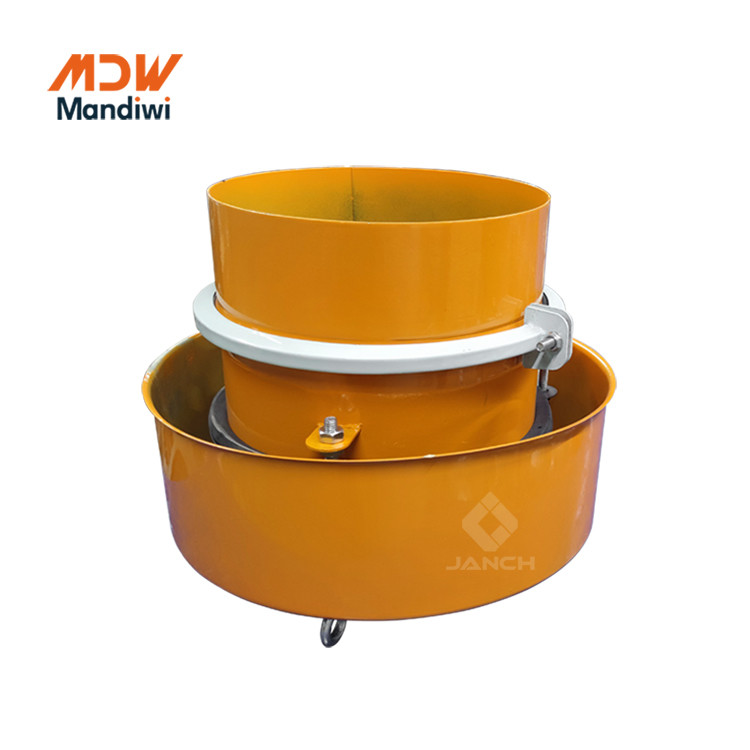

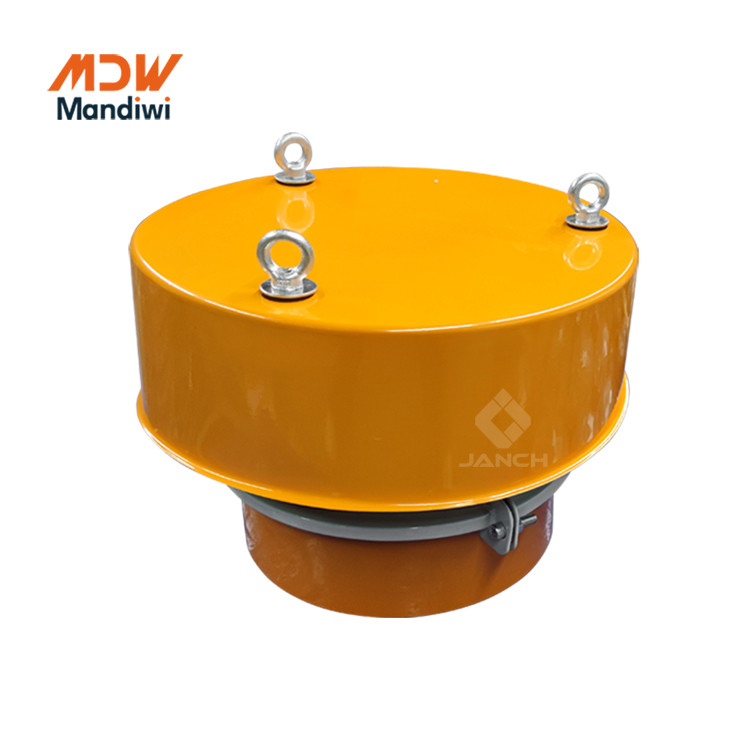

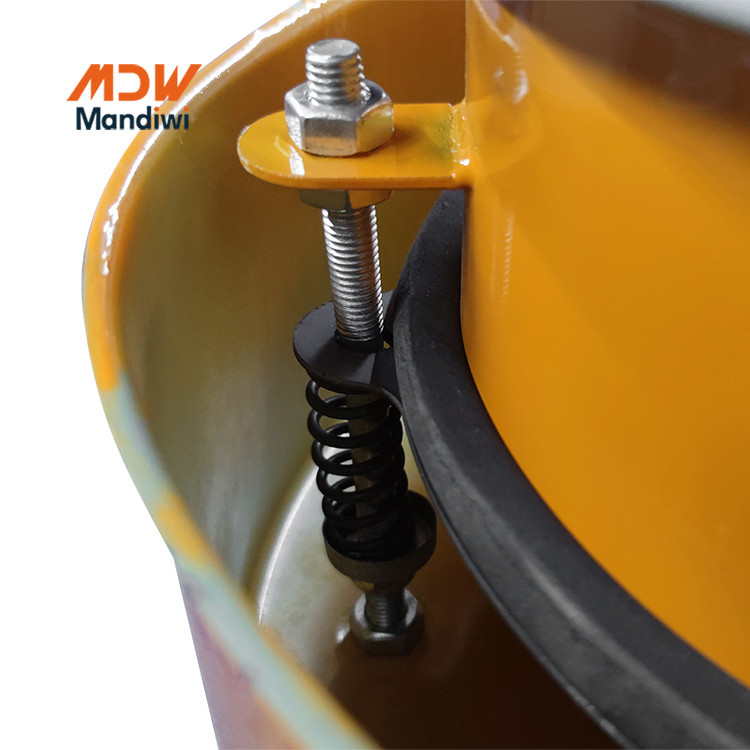

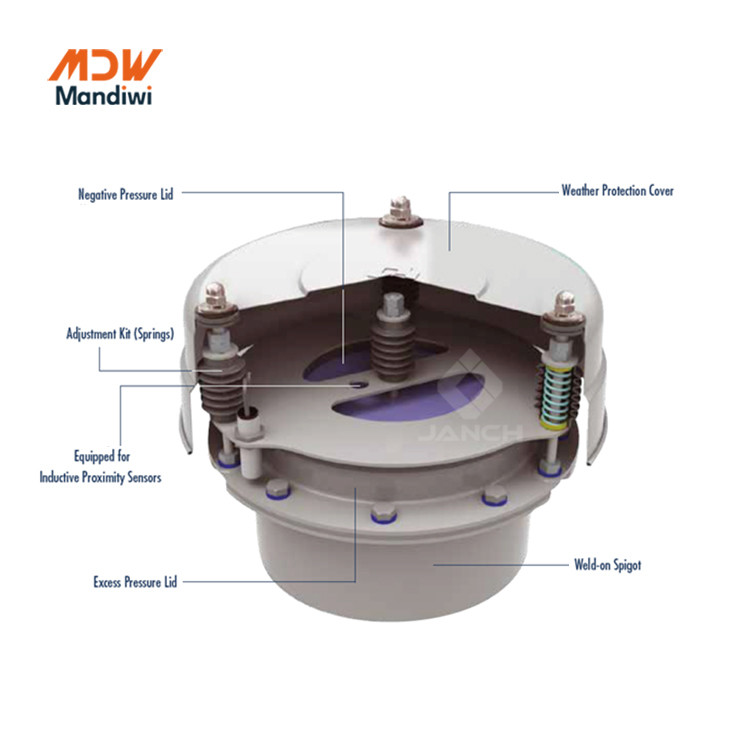

MDW Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.

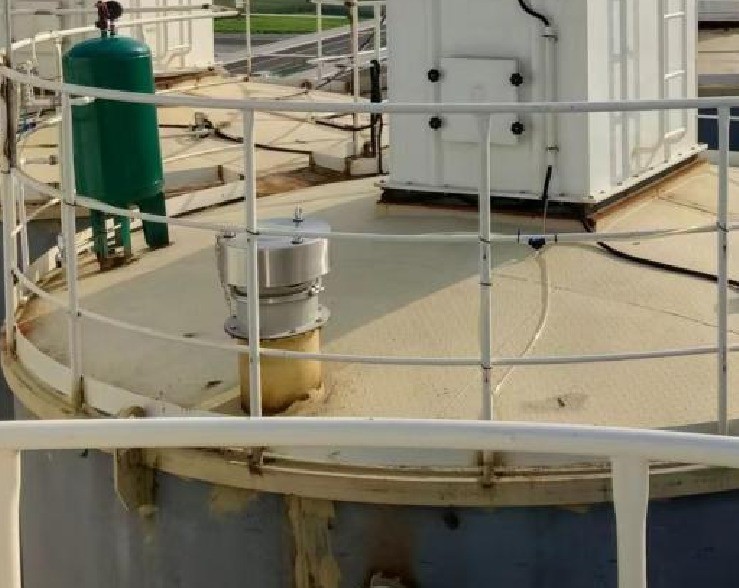

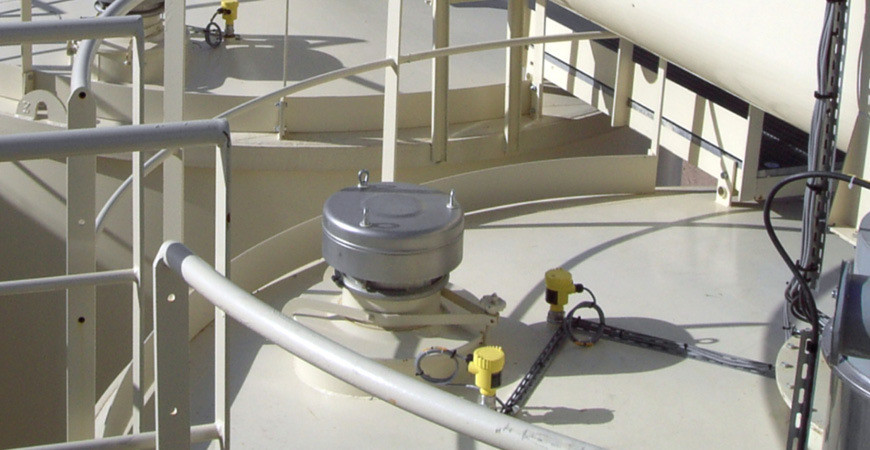

Application: SILO TOP
Features
- Flow rate: up to 13,000 m3/h (7,650 cfm)
- Painted carbon steel or 304 stainless steel casing
- Stainless steel weather protection cover
- Mechanical set-up for inductive signalling sensor
- Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)
Benefits
- Lightweight design and reduced overall dimensions for extremely comfortable handling
- Easy to fit
- Quick maintenance
Options
- ATEX-certified version
- Compliance with European Regulation (EC) No. 1935/2004
- Optionally different settings available
- Inspection hatch
- Inductive sensors
- Bird net
