VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant

5 pieces
MOQ
$68.00/pieces 5-29 pieces
Price
VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant
Features Gallery Product Description Request A Quote
Features
Specifications
Application: General, Silos
Port Size: 273mm
Warranty: 1 YEAR, 1 Year
Power: Pneumatic
Temperature Of Media: Low Temperature
Structure: Safety
Media: Base
Customized Support: OEM
Product Name: Pressure Relief Valve
Type: Relief Valve, Safety Relief Valves
Model: VCP2731B
Material: Stainless Steel
Color: White
Highlight:

VCP2731B Series Pressure Relief Valve

,

Cement Silo Pressure Relief Valve

,

Beton Plant Pressure Relief Valve

Basic Infomation
Place of Origin: China
Brand Name: MANDIWI, WAM
Model Number: VCP2731B
Payment & Shipping Terms
Packaging Details: Carton packing, 1set/carton
Delivery Time: 10-15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant

Products Description:

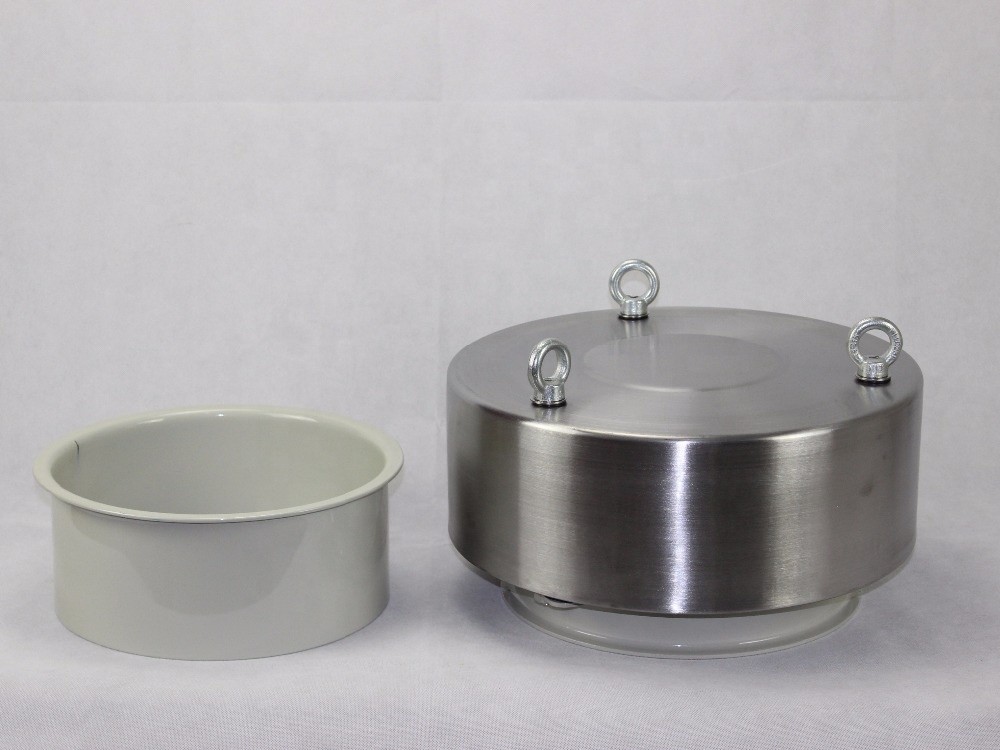

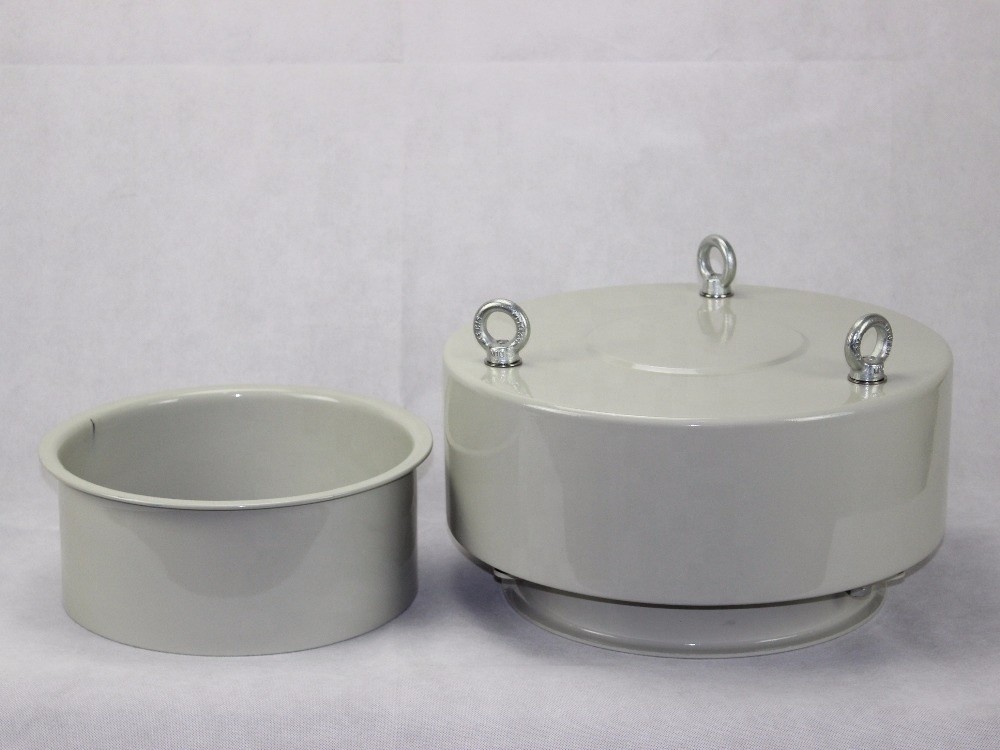

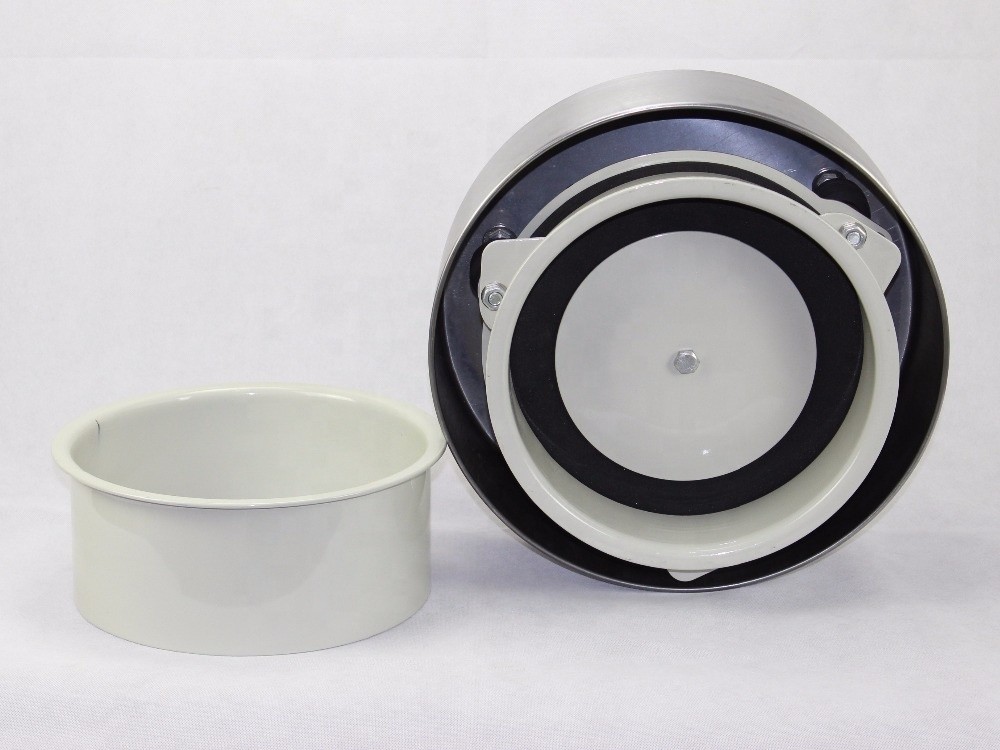

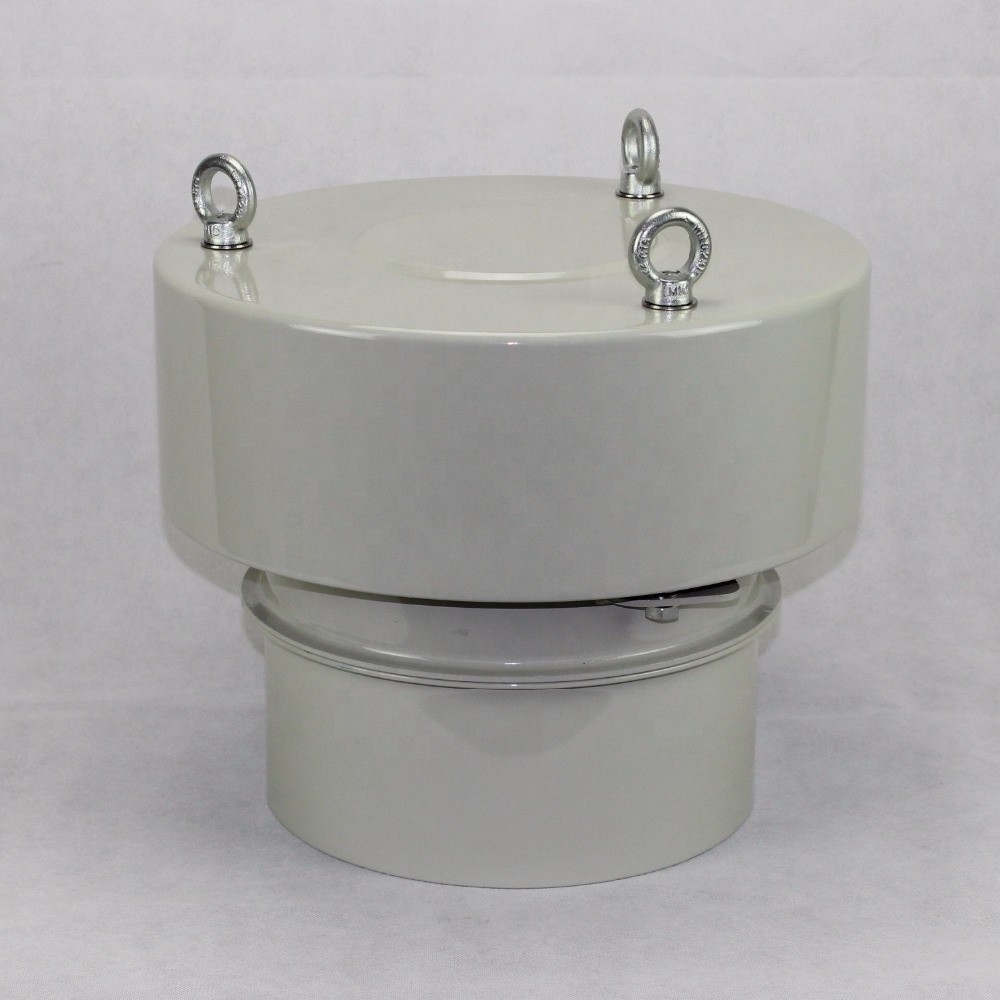

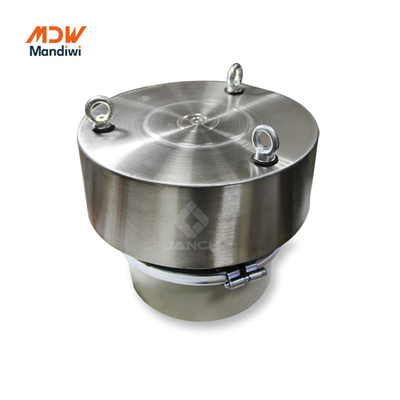

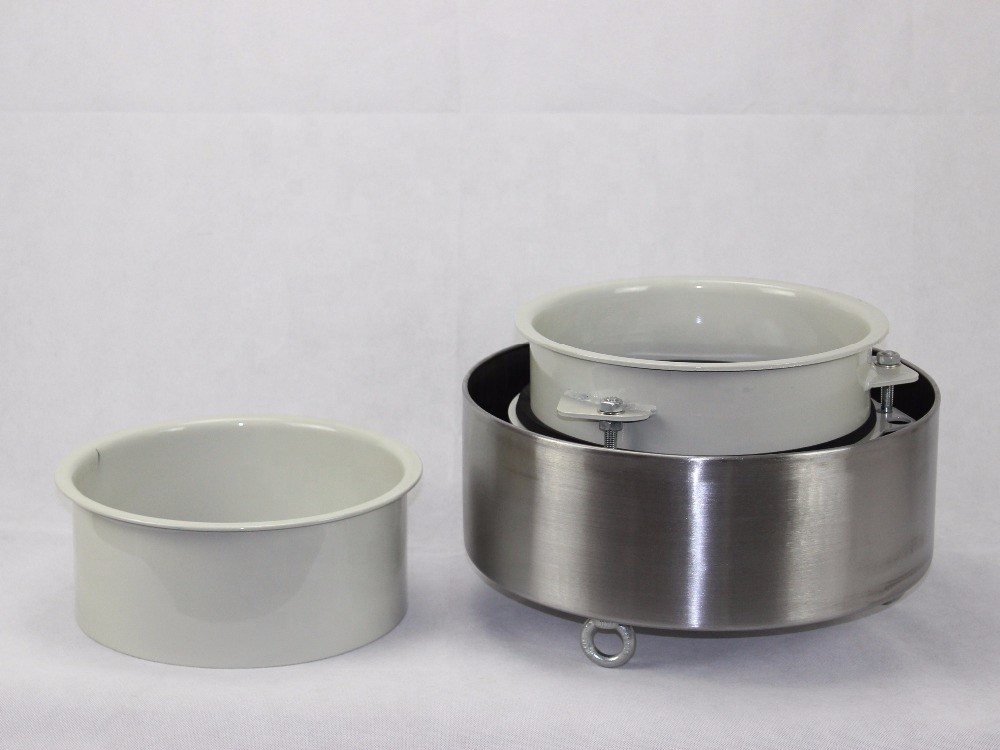

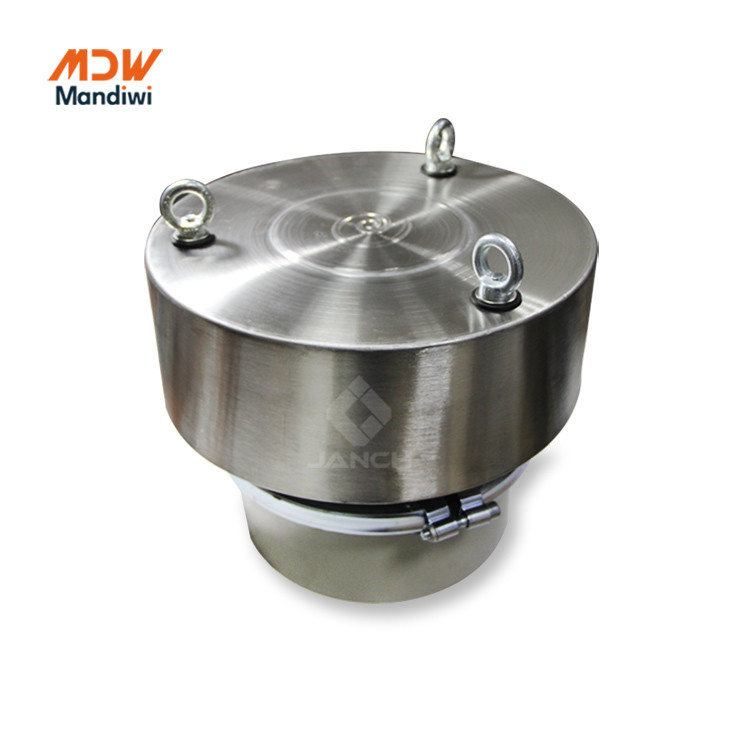

Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.



VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 0

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 1

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 2

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 3

FeaturesVCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 4

  • Two sizes available
  • Flow rate: up to 13,000 m3/h (7,650 cfm)
  • Painted carbon steel or 304 stainless steel casing
  • Stainless steel weather protection cover
  • Mechanical set-up for inductive signalling sensor
  • Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)



VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 5



SIZE 273

A

400

B

356

C

125

D

120

E



325

φF

273

NW(kg)

9.5





Application:

SILO TOP

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 6

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 7

VCP2731B Series Pressure Relief Valve Ensuring Cement Silo Safety In Beton Plant 8
