Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank

Product Summary

273mm Spring Loaded Pressure Relief Valve For Low Temperature Media In Cement Tank Products Description Ultimate Silo Safeguard, VCP Pressure Relief Valves Spring-loaded pressure relief valves, cement Silo top safety valve - Painted mild-steel or 304 stainless steel casing material - Stainless-steel ...

Product Custom Attributes

Application:
General, Silos, Tank
Port Size:
273mm
Warranty:
1years
Power:
Pneumatic
Temperature Of Media:
Low Temperature
Structure:
Safety
Media:
Base
Customized Support:
OEM
Product Name:
Pressure Relief Valve
Type:
Relief Valve, Safety Relief Valves
Model:
VCP2731B
Material:
Stainless Steel
Color:
White, Silver
Highlight:

Spring Loaded Pressure Relief Valve

,

Pressure Relief Valve 273mm

,

Cement Tank Pressure Relief Valve

Basic Properties

Place of Origin:
China
Brand Name:
MDW, WAM
Model Number:
VCP2731B

Trading Properties

Minimum Order Quantity:
5 pieces
Price:
$68.00/pieces 5-29 pieces
Packaging Details:
Carton packing, 1set/carton
Delivery Time:
10-15 working days
Payment Terms:
T/T, LC, Trade assurance Order, Western Union

Product Description

273mm Spring Loaded Pressure Relief Valve For Low Temperature Media In Cement Tank

Products Description

Ultimate Silo Safeguard, VCP Pressure Relief Valves

Spring-loaded pressure relief valves, cement Silo top safety valve
- Painted mild-steel or 304 stainless steel casing material
- Stainless-steel weather protection cover
- Adjustment Kit (Springs)

Features
  • Two sizes available
  • Flow rate: up to 13,000 m3/h (7,650 cfm)
  • Painted carbon steel or 304 stainless steel casing
  • Stainless steel weather protection cover
  • Mechanical set-up for inductive signalling sensor
  • Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)

Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank 0
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank 1
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank 2
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank 3

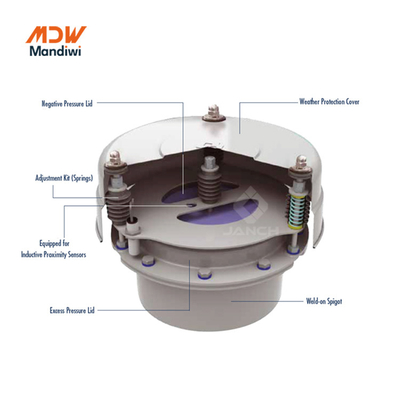

Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.


Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank 4
Spring Loaded Pressure Relief Valve 273mm For Low Temperature Media In Cement Tank 5

SIZE 273
(mm)
A
400
B
356
C
125
D
120
E
325
φF
273
NW(kg)
9.5





  • Lightweight design and reduced overall dimensions for extremely comfortable handling
  • Easy to fit
  • Quick maintenance

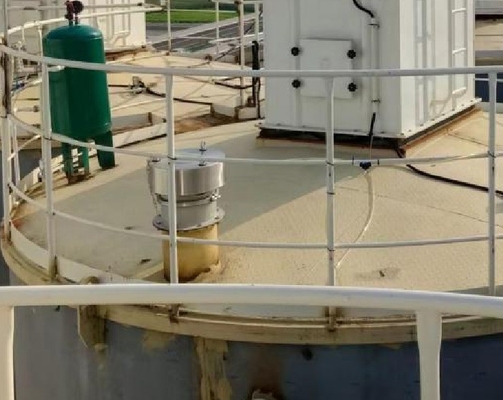

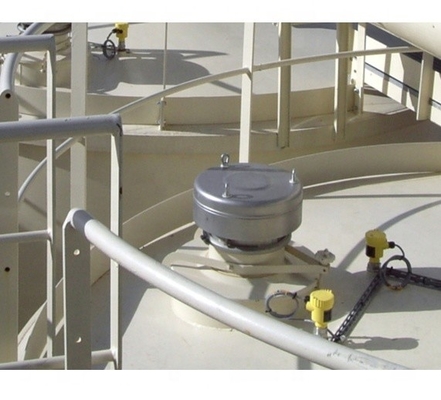

Application
