Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options

1
MOQ
$55-62
Price
Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options
Features Gallery Product Description Chat Now
Features
Specifications
Material: Tungsten Carbide, Alloy
Type/Size: DN200/230/260
Carbide Thickness: 15+5mm / 15mm
Carbide Hardness: HRA≥85
Electrode Hardness: HRC≥65
Weight DN200: 7.92 Kgs
Weight DN230: 8.3 Kgs
Weight DN260: 8.1 Kgs
MOQ: 1 Piece
Delivery Time: 5-15 Days
Wear Plate Type: Single Alloy, Double Alloy, Full Alloy
Item No. DN200: 590654/590660
Item No. DN230: 500012/590129
Item No. DN260: 500008/590165
Product Type: Cutting Rings, Wear Plate
Highlight:

DN200/230/260 Concrete Pump Wear Plate

,

Dual Carbide 15+5mm Cutting Rings

,

Single Carbide 15mm Spectacle Plate
Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Product Description



  • Product Name & Concept: The Cutting Ring is a hardened, durable part designed to withstand the extreme abrasion of concrete within the pump's valve system.

  • Purpose: Its primary role is to shear through debris and maintain a tight seal during the S-tube's switching action, preventing pressure loss.

  • Key Advantages: Exceptional wear resistance translates to fewer replacements, reduced downtime, and lower long-term operating costs.

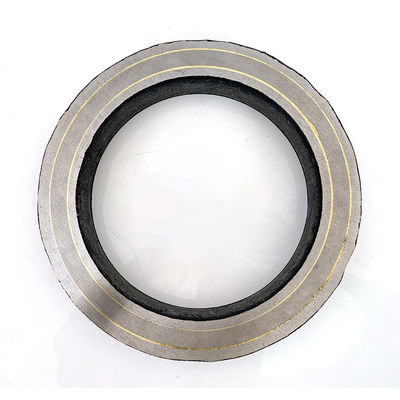

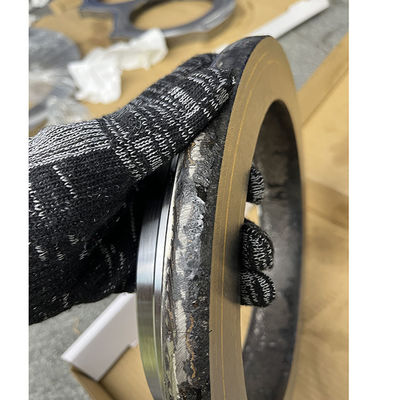

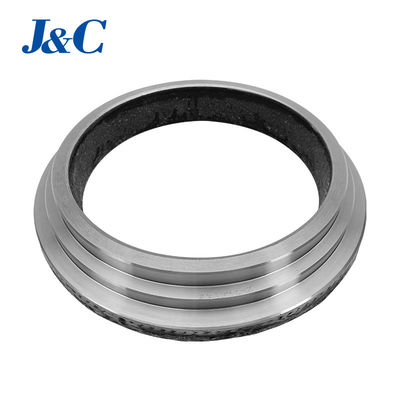

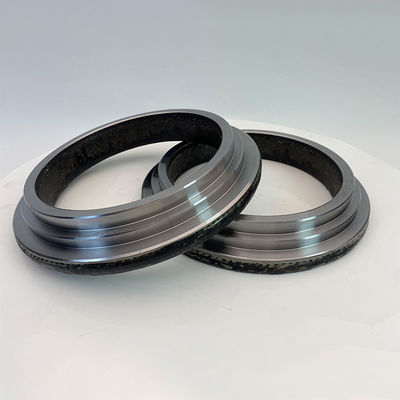

Concrete Pump Tungsten Carbide Spectacle Cutting Rings
Dual carbide 15+5mm / Single carbide 15mm for choices
Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 0 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 1 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 2 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 3 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 4 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 5 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 6 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 7
Item No./Size Weight (kgs) Material
590654/590660(200) 7.92 Carbide HRA:≥85
Electrode HRC:≥65
500012/590129(230) 8.3 Carbide HRA:≥85
Electrode HRC:≥65
500008/590165(260) 8.1 Carbide HRA:≥85
Electrode HRC:≥65
Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 8 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 9
How to Increase Service Life of Concrete Pump Spectacle Wear Plate and Cutting Ring
When the pump is in operation, the basic causes of wear resulted due to the following 3 actions on cutting rings and spectacle plate:
  • Friction created while rubbing away on wear parts
  • Impact stress due to intentional back pressure created for better sealing
  • By the concrete due to the flow
To reduce the maintenance cost, we suggest to use carbide type and change wear ring position after working for a period of time.
Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 10 Concrete Pump Wear Plate and Cutting Rings in DN200/230/260 with Dual Carbide 15+5mm and Single Carbide 15mm Options 11
TWIN ALLOY WEAR PLATE
Single Alloy, Double Alloy, Full Alloy are available.
WEAR PLATE SIDE VIEW
