Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options

1
MOQ
$55-62
Price
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options
Features Gallery Product Description Chat Now
Features
Specifications
Material: Tungsten Carbide, Alloy
Size: DN200/230/260
Carbide Thickness: 15+5mm / 15mm
Carbide Hardness: HRA ≥85
Electrode Hardness: HRC ≥65
Weight DN200: 7.92 Kgs
Weight DN230: 8.3 Kgs
Weight DN260: 8.1 Kgs
Item No. DN200: 590654/590660
Item No. DN230: 500012/590129
Item No. DN260: 500008/590165
Alloy Type: Single/Double/Full
Minimum Order: 1 Piece
Delivery Time: 5-15 Days
Wear Resistance: Carbide Type Recommended
Highlight:

DN200/230/260 Concrete Pump Wear Plate

,

Dual Carbide 15+5mm Cutting Rings

,

Single Carbide 15mm Spectacle Plate
Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Product Description



  • Product Name & Concept: The Cutting Ring is a key sealing element that ensures the hydraulic efficiency of the concrete pumping process.

  • Purpose: It works in tandem with the wear plate to prevent concrete slurry from contaminating the hydraulic system and to maintain optimal pumping pressure.

  • Key Advantages: Ensures maximum pumping efficiency and power. Protects the entire hydraulic system from costly damage caused by abrasive contamination.

Putzmeister Concrete Pump Parts Mix Paddle Blade 441540/441541 DN200/260

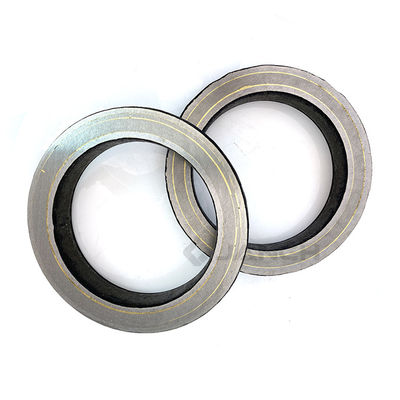

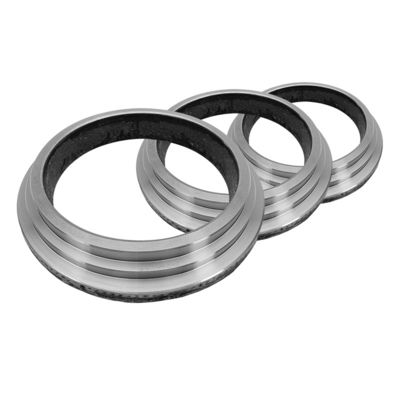

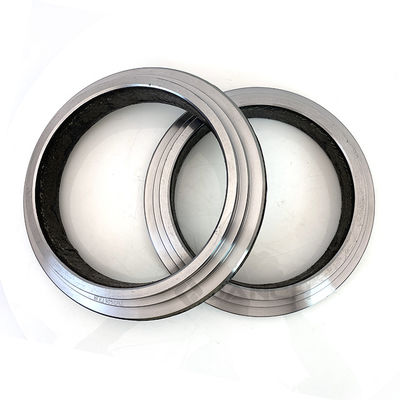

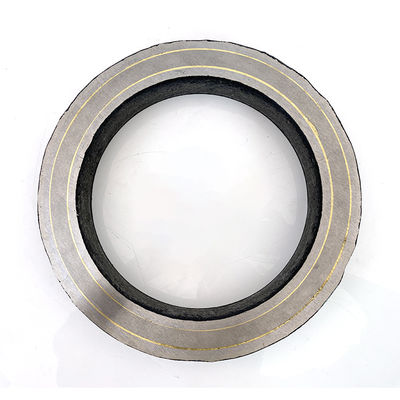

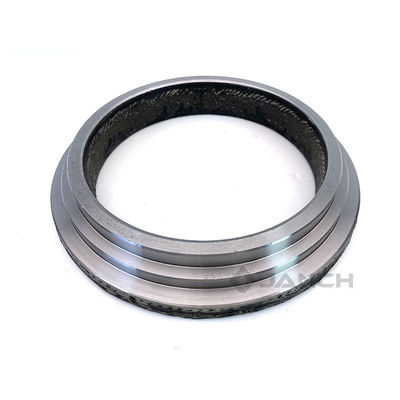

Concrete Pump Tungsten Carbide Spectacle Cutting Rings
Available in dual carbide 15+5mm or single carbide 15mm options.
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 0 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 1 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 2 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 3 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 4 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 5 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 6 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 7
Item No./Size Weight (kgs) Material
590654/590660(200) 7.92 Carbide HRA:≥85
Electrode HRC:≥65
500012/590129(230) 8.3 Carbide HRA:≥85
Electrode HRC:≥65
500008/590165(260) 8.1 Carbide HRA:≥85
Electrode HRC:≥65
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 8 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 9
How to Increase Service Life of Concrete Pump Spectacle Wear Plate and Cutting Ring
During pump operation, wear occurs primarily due to three factors:
  • Friction from rubbing against wear parts
  • Impact stress from intentional back pressure for better sealing
  • Concrete flow abrasion
To reduce maintenance costs, we recommend using carbide type components and periodically changing the wear ring position.
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 10 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 11
Twin Alloy Wear Plate
Available in single alloy, double alloy, and full alloy configurations.
Wear Plate Side View
Packing & Delivery
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 12 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 13 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 14 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 15 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 16
Company Profile
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 17 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 18
Hunan Jiancheng Technology Co., Ltd.
Specializing in the R&D, manufacturing and marketing of Mechanical Components and Spare Parts for Concrete Machinery. We provide ONE-STOP purchasing services.
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 19 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 20 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 21 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 22 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 23
Our Clients
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 24
Certifications
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 25
Our Advantages
Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 26 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 27 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 28 Tungsten Carbide Concrete Pump Wear Plate and Cutting Rings DN200/230/260 with Dual Carbide 15+5mm or Single Carbide 15mm Options 29
