DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance

1
MOQ
$55-62
Price
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance
Features Gallery Product Description Chat Now
Features
Specifications
Material: Tungsten Carbide, Alloy
Type/Size: DN200/230/260
Carbide Thickness: 15+5mm / 15mm
Carbide Hardness: HRA ≥85
Electrode Hardness: HRC ≥65
Weight DN200: 7.92 Kgs
Weight DN230: 8.3 Kgs
Weight DN260: 8.1 Kgs
MOQ: 1 Piece
Delivery Time: 5-15 Days
Wear Plate Type: Single/Double/Full Alloy
Item No. DN200: 590654/590660
Item No. DN230: 500012/590129
Item No. DN260: 500008/590165
Product Type: Cutting Rings
Highlight:

DN230 Concrete Pump Wear Plate

,

Dual Carbide 15+5mm Concrete Pump Wear Plate

,

Single Carbide 15mm Concrete Pump Wear Plate
Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Product Description



  • Product Name & Concept: The Cutting Ring is an essential wear part engineered for longevity and reliable performance under high-stress conditions.

  • Purpose: It serves as the movable sealing surface that cuts and seals with every stroke of the S-tube, ensuring a continuous flow of concrete.

  • Key Advantages: Precision engineering provides a perfect fit and extended operational life, minimizing unplanned maintenance and keeping your projects on schedule.

DN230 Sany Concrete Pump Hopper Mixer Devices Agitator Left/Right Blades Spare Parts

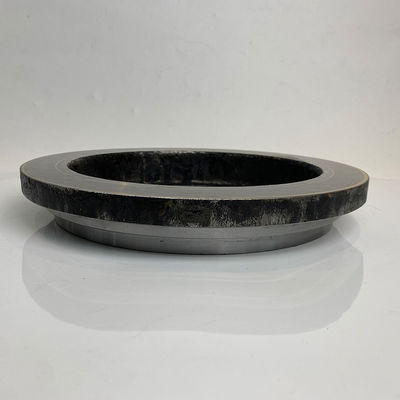

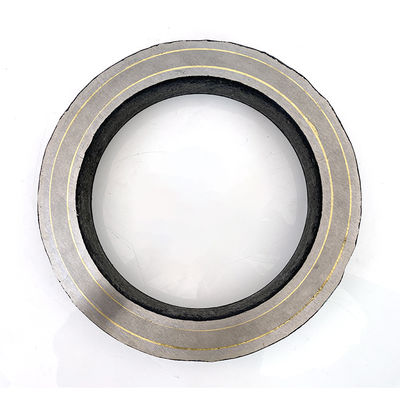

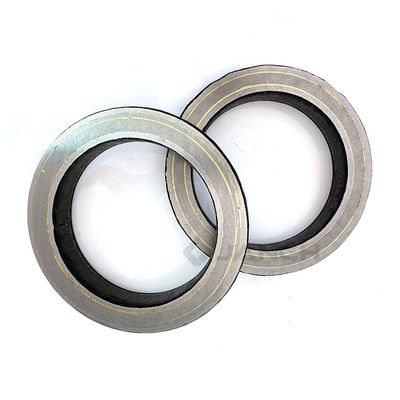

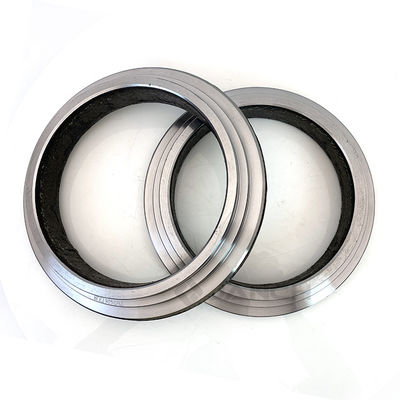

Concrete Pump Tungsten Carbide Spectacle Cutting Rings
Available in dual carbide 15+5mm or single carbide 15mm options
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 0
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 1
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 2
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 3
Item No./Size Weight (kgs) Material
590654/590660(200) 7.92 Carbide HRA: ≥85
Electrode HRC: ≥65
500012/590129(230) 8.3 Carbide HRA: ≥85
Electrode HRC: ≥65
500008/590165(260) 8.1 Carbide HRA: ≥85
Electrode HRC: ≥65
How to Increase Service Life of Concrete Pump Spectacle Wear Plate and Cutting Ring
During pump operation, wear occurs primarily due to three factors:
  • Friction from rubbing against wear parts
  • Impact stress from intentional back pressure for better sealing
  • Concrete flow abrasion
To reduce maintenance costs, we recommend using carbide type components and periodically changing the wear ring position.
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 4
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 5
Twin Alloy Wear Plate
Available in Single Alloy, Double Alloy, and Full Alloy configurations
Wear Plate Side View
Packing & Delivery
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 6
DN230 Concrete Pump Wear Plate with Dual Carbide 15+5mm and Single Carbide 15mm Options for Wear Resistance 7
Hunan Jiancheng Technology Co., Ltd.
Specializing in R&D, manufacturing, and marketing of mechanical components and spare parts for concrete machinery. We provide one-stop purchasing services.
