Name: Concrete Pump Wear Plate DN200 230 260 Tungsten Carbide Alloy
Brand: Hunan Jiancheng Technology Co., Ltd
Price: 181.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Material: Tungsten Carbide, Alloy

Type/Size: DN200/230/260

Dual Carbide Thickness: 15+5mm

Single Carbide Thickness: 15mm

Full Carbide Thickness: 20mm

Carbide Hardness: HRA ≥85

Electrode Hardness: HRC ≥65

Wear Plate Weight (200): 20.87 Kgs

Wear Plate Weight (230): 22.5 Kgs

Wear Plate Weight (260): 24.25 Kgs

Cutting Rings Weight (200): 7.92 Kgs

Cutting Rings Weight (230): 8.3 Kgs

Cutting Rings Weight (260): 8.1 Kgs

Cutting Ring Types: Single Alloy, Twin Alloy, Full Alloy

Minimum Order Quantity: 1 Piece

Highlight:

Concrete Pump Wear Plate DN200

Tungsten Carbide Wear Plate

Concrete Pump Truck Parts

Basic Infomation

Place of Origin: China

Payment & Shipping Terms

Gallery

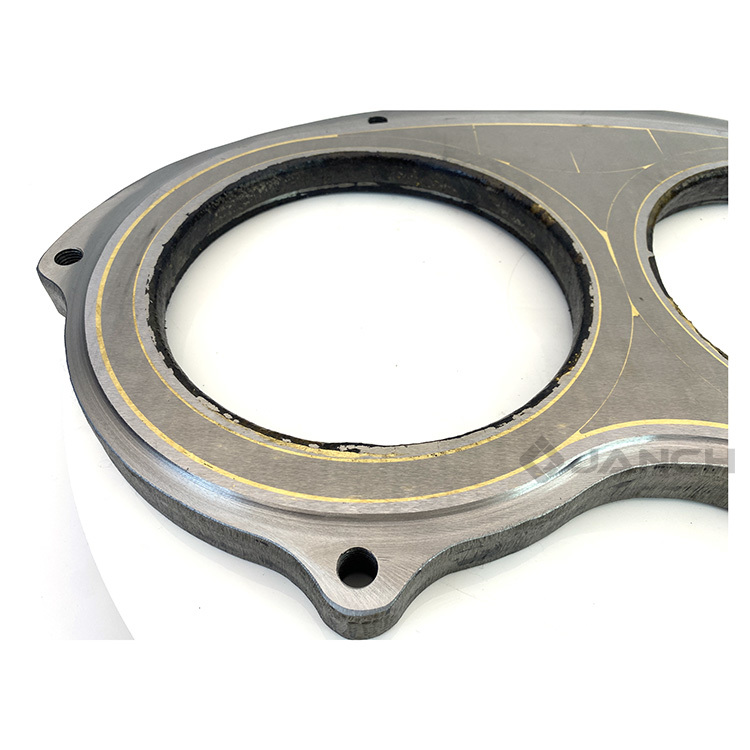

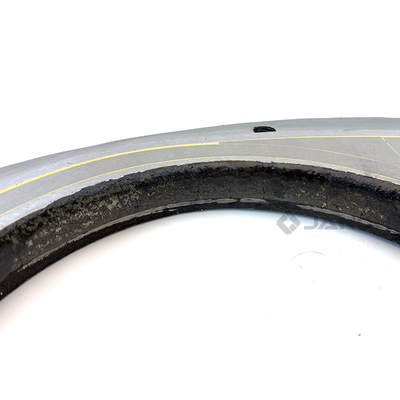

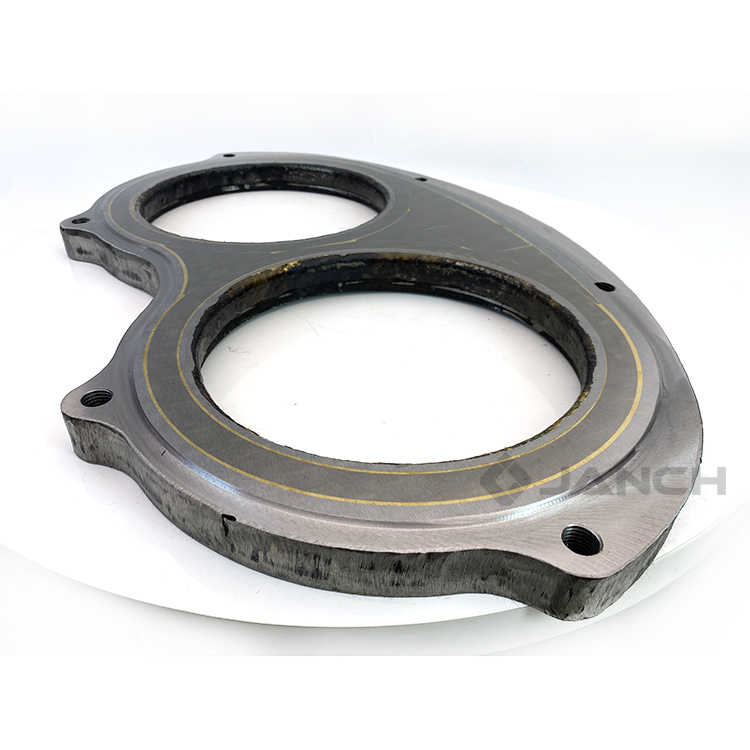

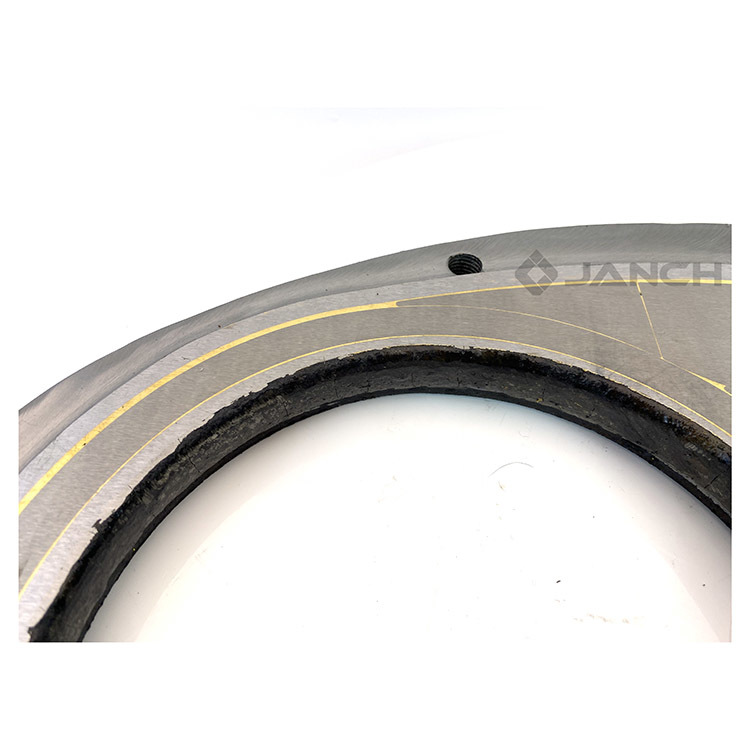

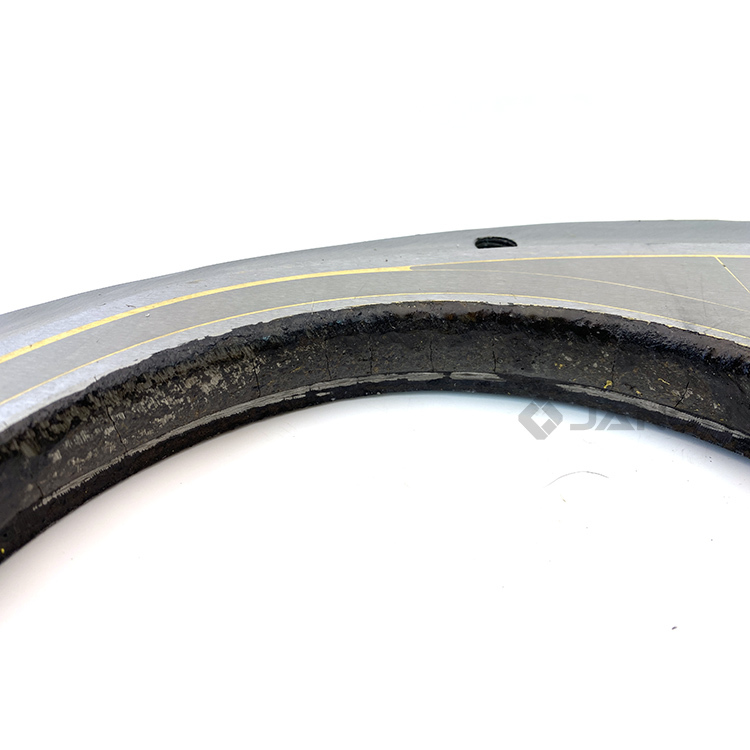

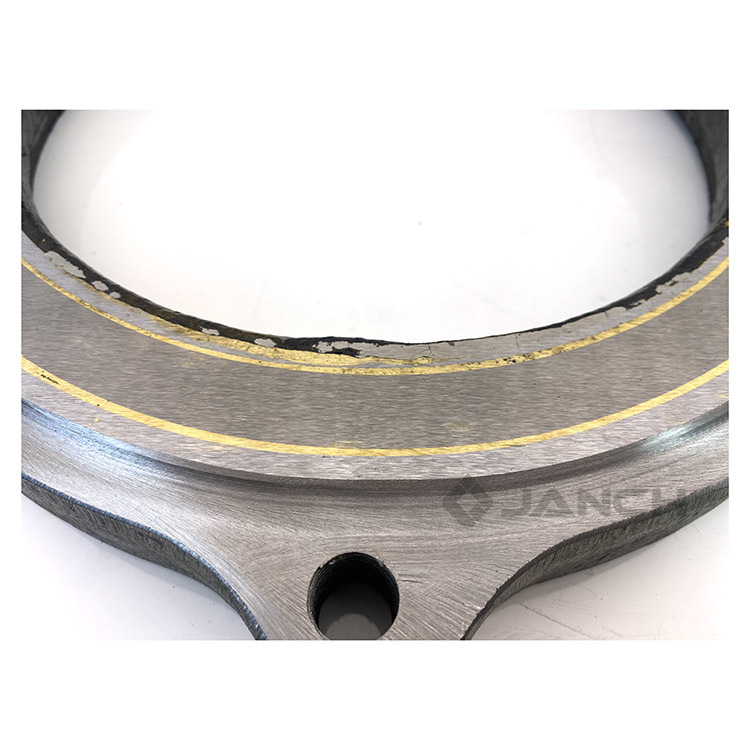

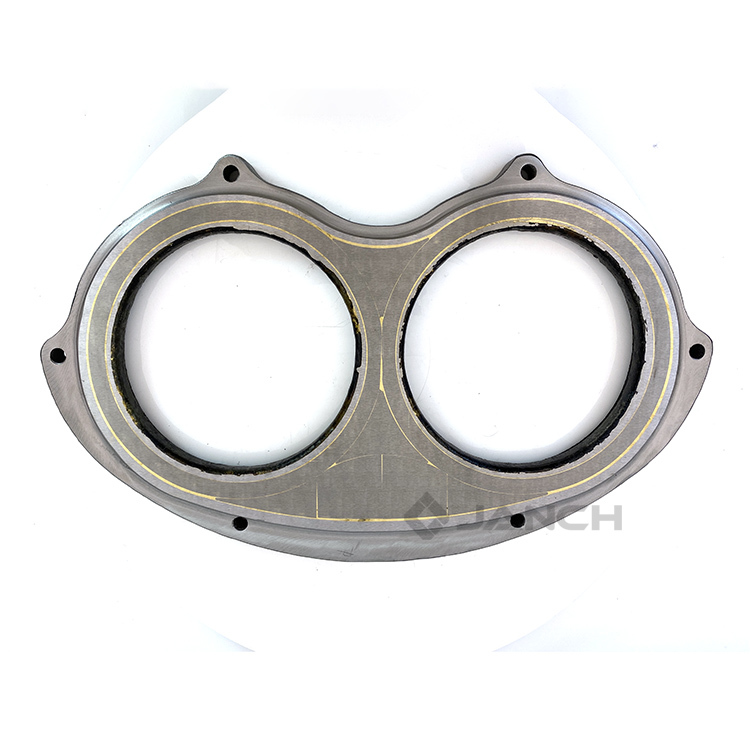

Concrete Pump Wear Plate DN200 230 260 Tungsten Carbide Alloy

Product Description

Product Name & Concept: The Wear Plate (Eye Plate) is a critical, high-precision wear part in the concrete pump's S-valve assembly.
Purpose: It provides a flat, sealing surface for the cutting ring on the S-tube to pivot against, ensuring a tight seal during the concrete switching process.
Key Advantages: Manufactured from specially hardened steel for exceptional abrasion resistance. Its precision machining guarantees a perfect seal, maximizing pumping efficiency and preventing pressure loss.

Single Alloy Carbide Wear Plate for Concrete Pump Construction Machinery Part for Sany Spectacle Plate

Concrete Pump Tungsten Carbide Spectacle Wear Plate

Available in multiple configurations:

Dual carbide 15+5mm
Single carbide 15mm
Full carbide 20mm

Description	Item No. (Size)	Weight (kgs)	Material
Wear Plate	590653 (200)	20.87	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500011 (230)	22.5	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500007 (260)	24.25	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	590654/590660 (200)	7.92	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500012/590129 (230)	8.3	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500008/590165 (260)	8.1	Carbide HRA: ≥85 Electrode HRC: ≥65

Extending Service Life of Concrete Pump Wear Components

During pump operation, wear occurs primarily through three mechanisms:

Friction from rubbing contact between components
Impact stress from back pressure created for sealing
Abrasion from concrete flow

To minimize maintenance costs, we recommend using carbide components and periodically rotating wear ring positions.

Cutting Ring Options

Available in sizes: 200/230/260

Material configurations:

Single Alloy
Twin Alloy
Full Alloy
