Name: Concrete Pump Wear Plate DN200/230/260 Tungsten Carbide 15-20mm
Brand: Hunan Jiancheng Technology Co., Ltd
Price: 181.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Material: Tungsten Carbide, Alloy

Type/Size: DN200/230/260

Dual Carbide Thickness: 15+5mm

Single Carbide Thickness: 15mm

Full Carbide Thickness: 20mm

Wear Plate Weight (200): 20.87 Kgs

Wear Plate Weight (230): 22.5 Kgs

Wear Plate Weight (260): 24.25 Kgs

Cutting Rings Weight (200): 7.92 Kgs

Cutting Rings Weight (230): 8.3 Kgs

Cutting Rings Weight (260): 8.1 Kgs

Carbide Hardness: HRA ≥85

Electrode Hardness: HRC ≥65

Cutting Ring Types: Single Alloy, Twin Alloy, Full Alloy

MOQ: 1 Piece

Highlight:

concrete pump wear plate tungsten carbide

DN200 wear plate concrete pump

tungsten carbide wear plate 15-20mm

Basic Infomation

Place of Origin: China

Payment & Shipping Terms

Gallery

Concrete Pump Wear Plate DN200/230/260 Tungsten Carbide 15-20mm

Product Description

Product Name & Concept: The Hardened Wear Plate is a ultra-durable component that withstands the direct, abrasive force of concrete in the pumping system.
Purpose: It serves as the stationary sealing surface that the S-tube's cutting ring scrapes against with each stroke, facilitating the redirection of concrete flow.
Key Advantages: Features extreme surface hardness through specialized heat treatment, resulting in a dramatically extended service life and reduced replacement frequency compared to standard plates.

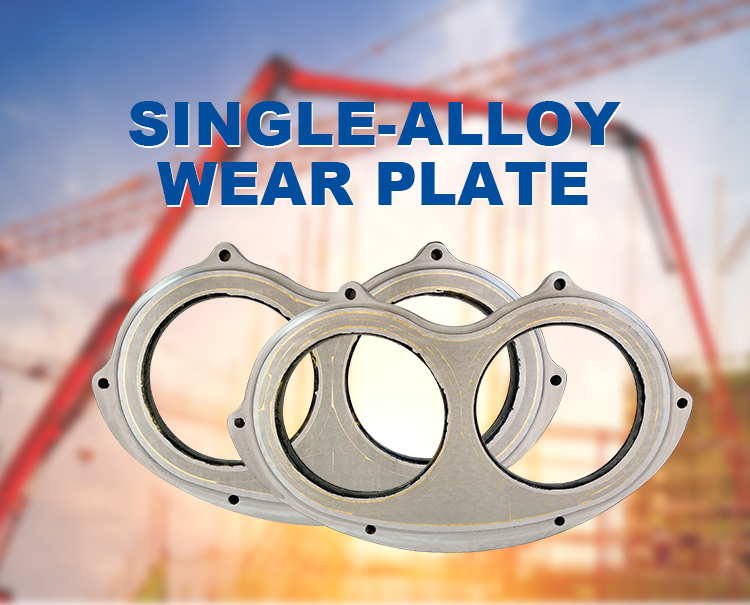

Genuine Steel Spectacle Wear Plate - GL Single Alloy Glasses Plate for Construction Machinery

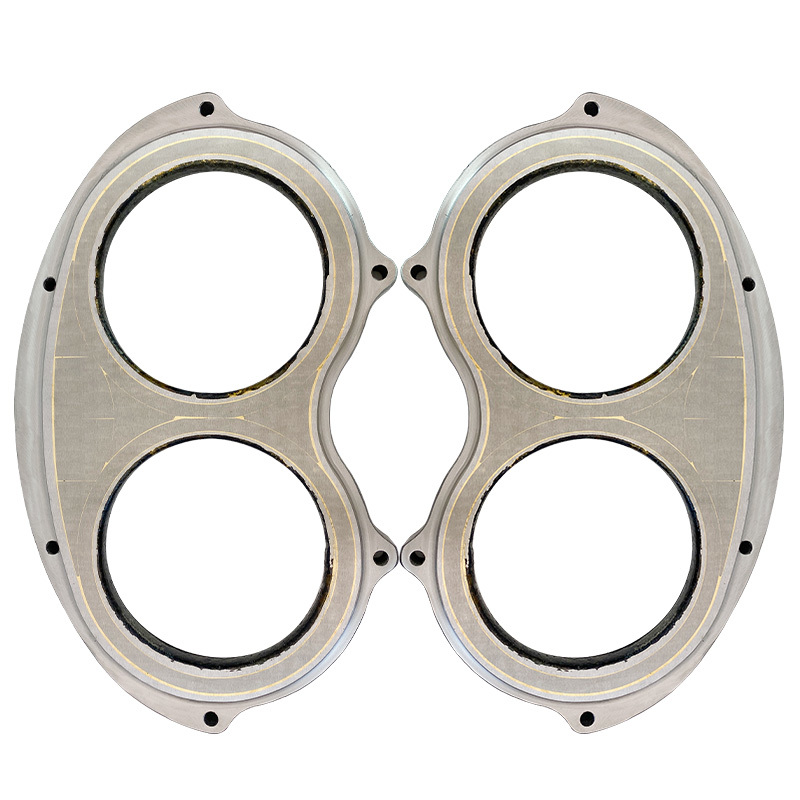

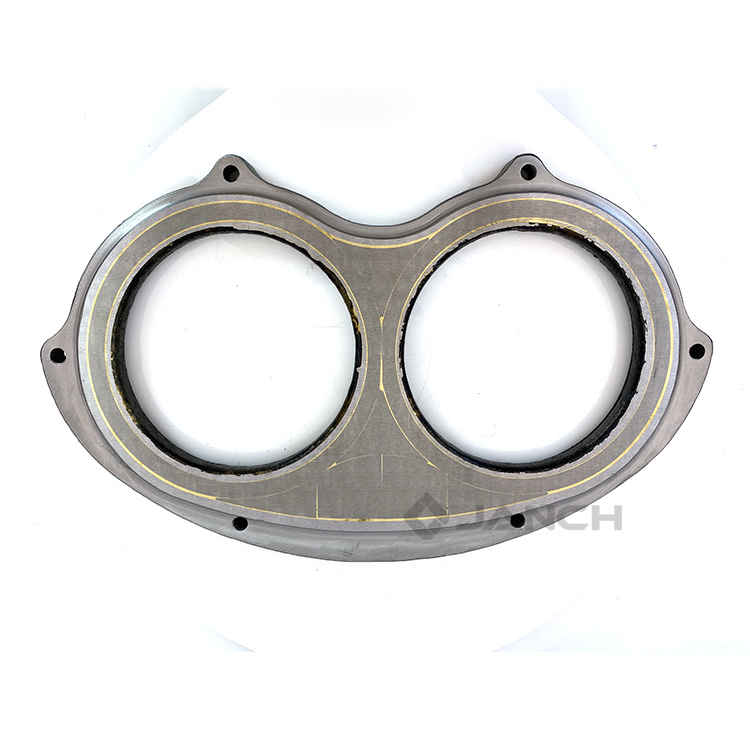

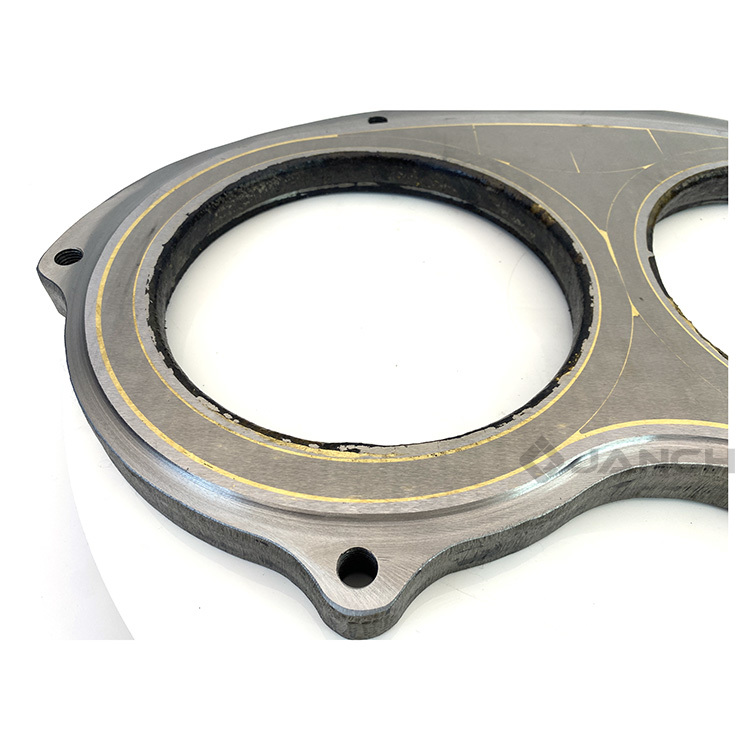

Concrete Pump Tungsten Carbide Spectacle Wear Plate

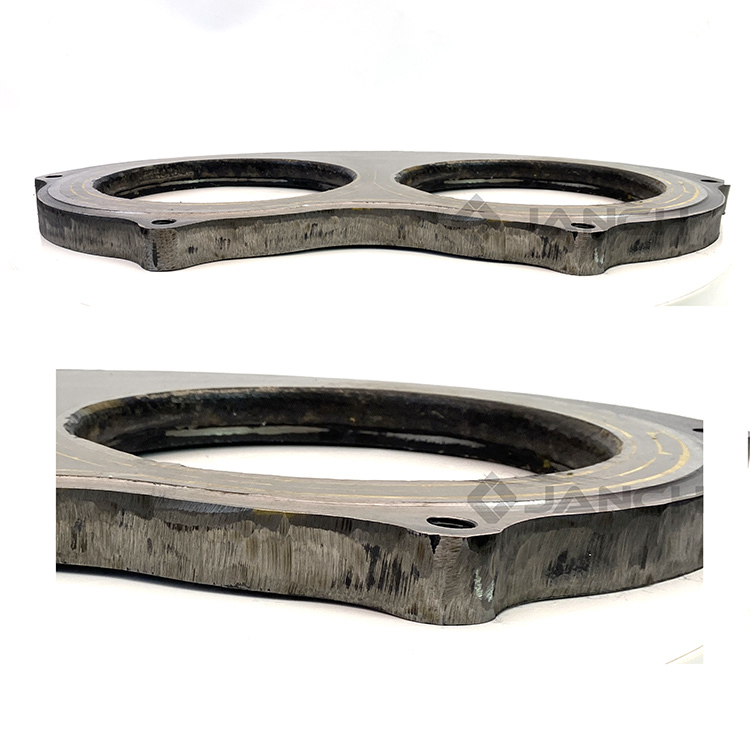

Available in three configurations:

Dual carbide 15+5mm
Single carbide 15mm
Full carbide 20mm

Description	Item No. (Size)	Weight (kgs)	Material
Wear Plate	590653 (200)	20.87	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500011 (230)	22.5	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500007 (260)	24.25	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	590654/590660 (200)	7.92	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500012/590129 (230)	8.3	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500008/590165 (260)	8.1	Carbide HRA: ≥85 Electrode HRC: ≥65

Extending Service Life of Concrete Pump Wear Components

Three primary causes of wear in cutting rings and spectacle plates:

Friction from rubbing against wear parts
Impact stress from back pressure for sealing
Concrete flow abrasion

Recommendation: Use carbide type components and periodically rotate wear ring position to reduce maintenance costs.

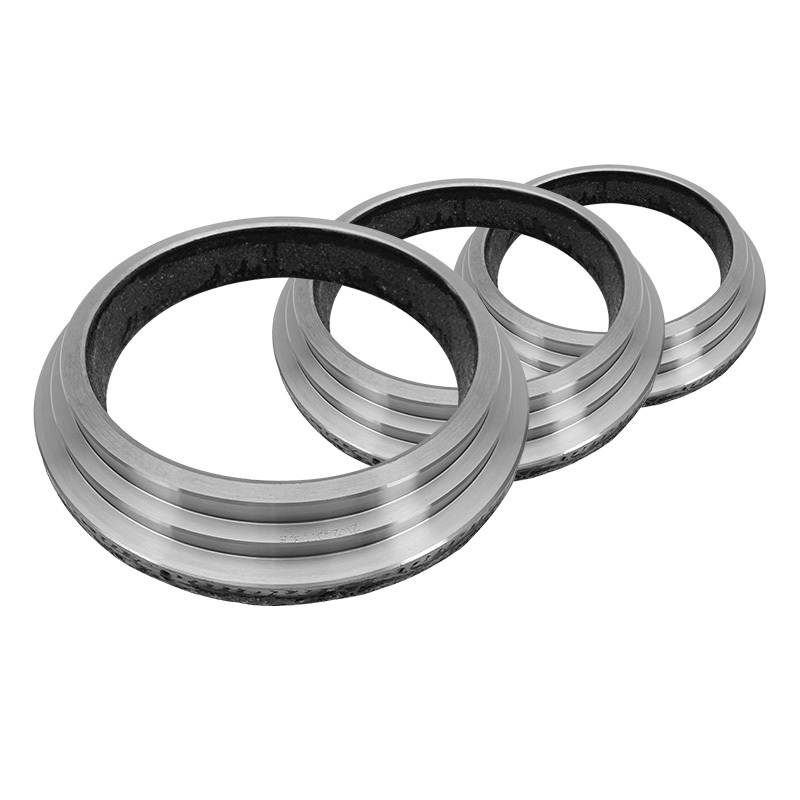

Cutting Ring Specifications

Available sizes: 200/230/260

Material options: Single Alloy, Twin Alloy, Full Alloy
