Name: Concrete Pump Wear Plate DN200/230/260 Tungsten Carbide Alloy
Brand: Hunan Jiancheng Technology Co., Ltd
Price: 181.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Material: Tungsten Carbide, Alloy

Type/Size: DN200/230/260

Dual Carbide Thickness: 15+5mm

Single Carbide Thickness: 15mm

Full Carbide Thickness: 20mm

Wear Plate 200 Weight: 20.87 Kgs

Wear Plate 230 Weight: 22.5 Kgs

Wear Plate 260 Weight: 24.25 Kgs

Cutting Ring 200 Weight: 7.92 Kgs

Cutting Ring 230 Weight: 8.3 Kgs

Cutting Ring 260 Weight: 8.1 Kgs

Carbide Hardness: HRA ≥85

Electrode Hardness: HRC ≥65

Cutting Ring Types: Single Alloy, Twin Alloy, Full Alloy

MOQ: 1 Piece

Highlight:

concrete pump wear plate DN200

tungsten carbide wear plate

concrete pump truck parts

Basic Infomation

Place of Origin: China

Payment & Shipping Terms

Gallery

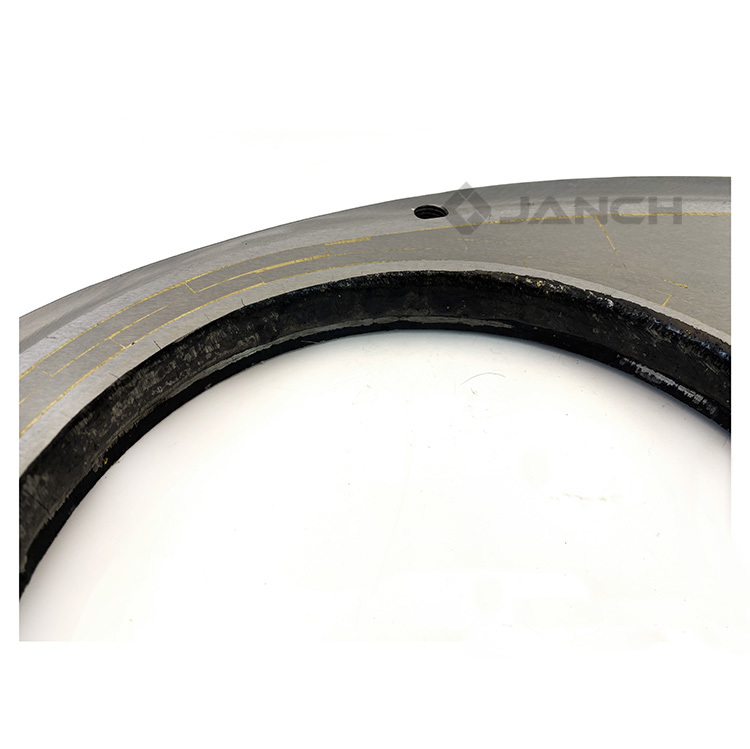

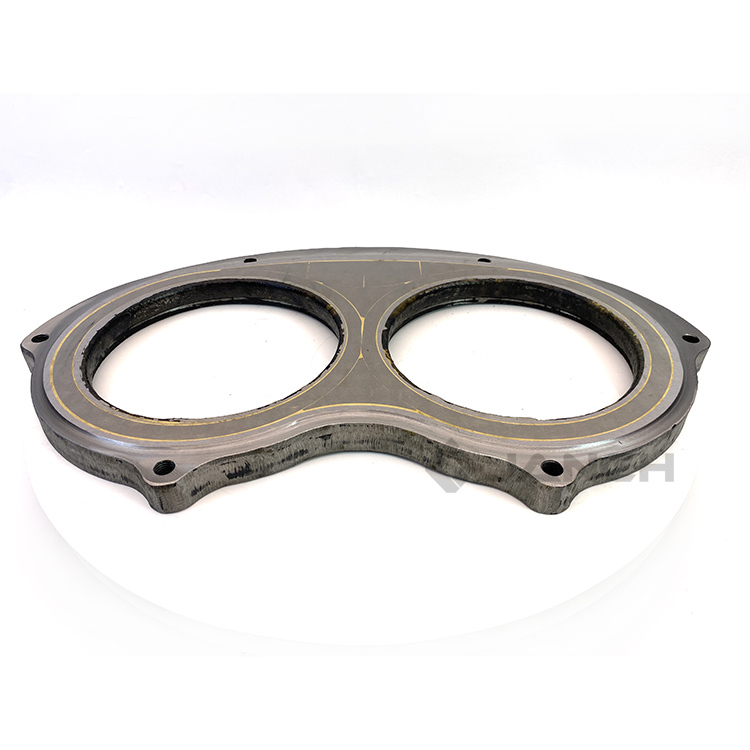

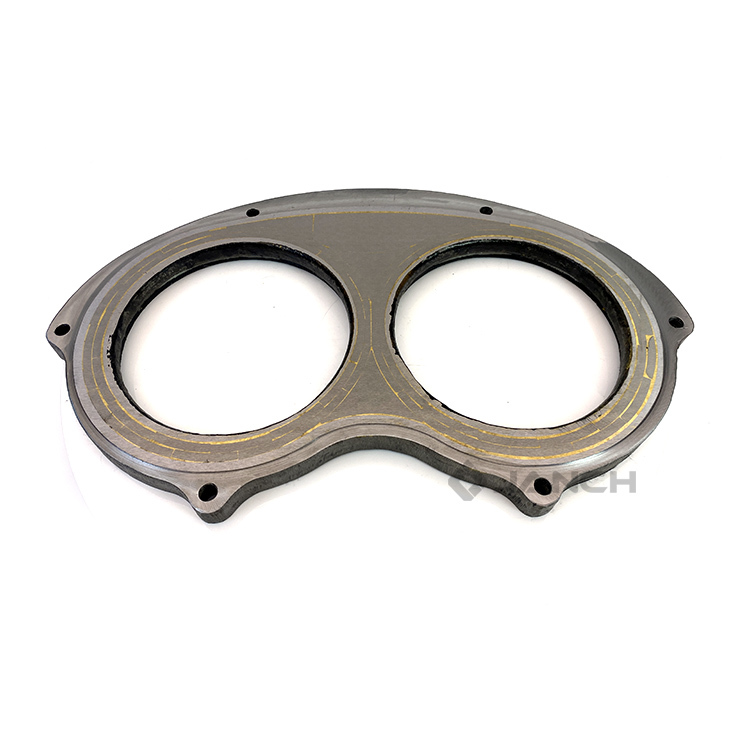

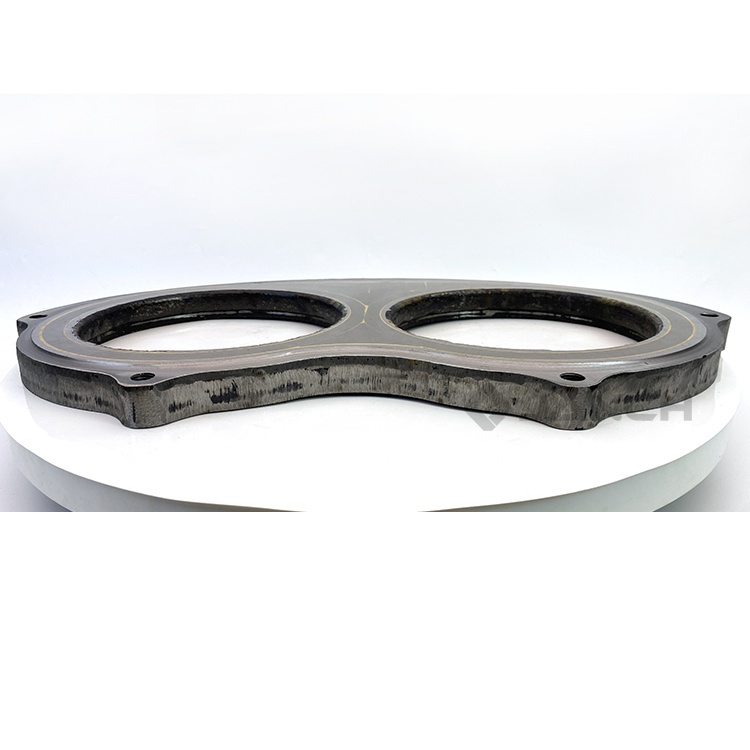

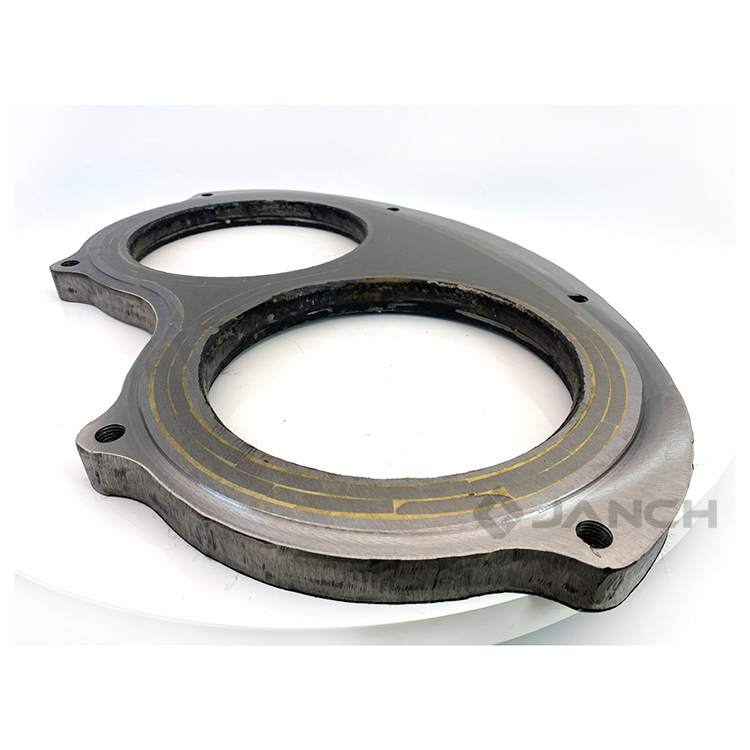

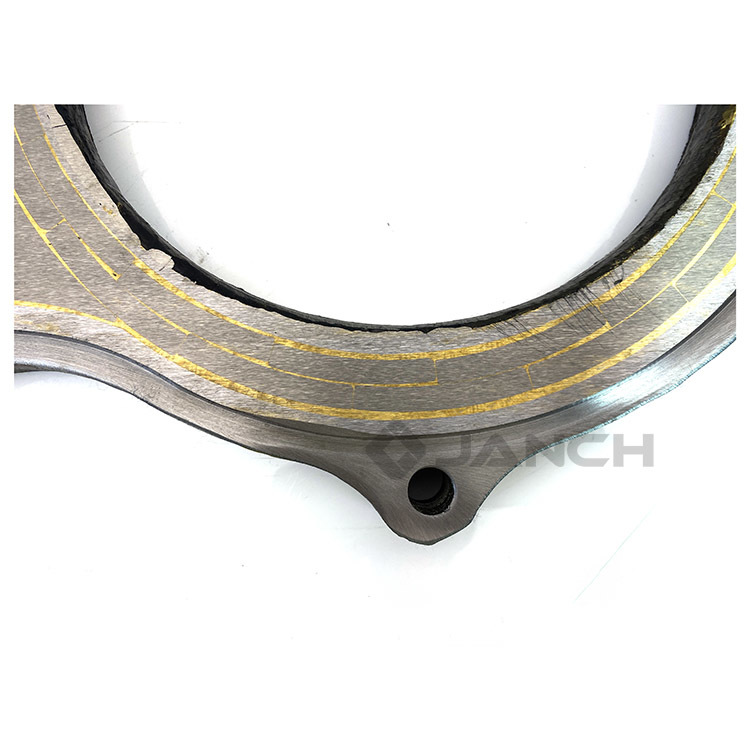

Concrete Pump Wear Plate DN200/230/260 Tungsten Carbide Alloy

Product Description

Product Name & Concept: The Eye Plate Seal is the fundamental sealing element at the heart of the pump's S-valve mechanism.
Purpose: Its primary function is to maintain a high-pressure seal between the oscillating S-tube and the stationary pump housing, preventing concrete slurry leakage.
Key Advantages: Ensures consistent pumping pressure and volumetric efficiency. Its integrity is vital for preventing contamination of the hydraulic system, protecting other valuable components.

Dual Alloy For Sany Concrete Pump Spectacle Plate

Construction Machinery Glasses Wear Plate and Cutting Rings for Pumps

Concrete Pump Tungsten Carbide Spectacle Wear Plate

Available in three material configurations:

Dual carbide 15+5mm
Single carbide 15mm
Full carbide 20mm

Description	Item No. (Size)	Weight (kgs)	Material
Wear Plate	590653 (200)	20.87	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500011 (230)	22.5	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500007 (260)	24.25	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	590654/590660 (200)	7.92	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500012/590129 (230)	8.3	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500008/590165 (260)	8.1	Carbide HRA: ≥85 Electrode HRC: ≥65

How to Increase Service Life of Concrete Pump Spectacle Wear Plate and Cutting Ring

During pump operation, wear occurs primarily due to three factors:

Friction from rubbing against wear parts
Impact stress from intentional back pressure for better sealing
Concrete flow abrasion

To reduce maintenance costs, we recommend using carbide components and periodically rotating the wear ring position.

Cutting Rings

Available sizes: 200/230/260

Material options: Single Alloy, Twin Alloy, Full Alloy
