Name: SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm
Brand: Hunan Jiancheng Technology Co., Ltd
Price: 181.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Material: Tungsten Carbide, Alloy

Type/Size: DN200/230/260

Dual Carbide Thickness: 15+5mm

Single Carbide Thickness: 15mm

Full Carbide Thickness: 20mm

Wear Plate Weight: 20.87-24.25 Kgs

Cutting Rings Weight: 7.92-8.3 Kgs

Carbide Hardness: HRA ≥85

Electrode Hardness: HRC ≥65

Wear Plate Sizes: 200/230/260

Cutting Ring Types: Single Alloy, Twin Alloy, Full Alloy

Minimum Order Quantity: 1 Piece

Delivery Time: 5-15 DAYS

Item No. 200: 590653

Item No. 230: 500011

Highlight:

SANY concrete pump wear plate

DN200 tungsten carbide wear plate

15mm concrete pump truck parts

Basic Infomation

Place of Origin: China

Payment & Shipping Terms

Gallery

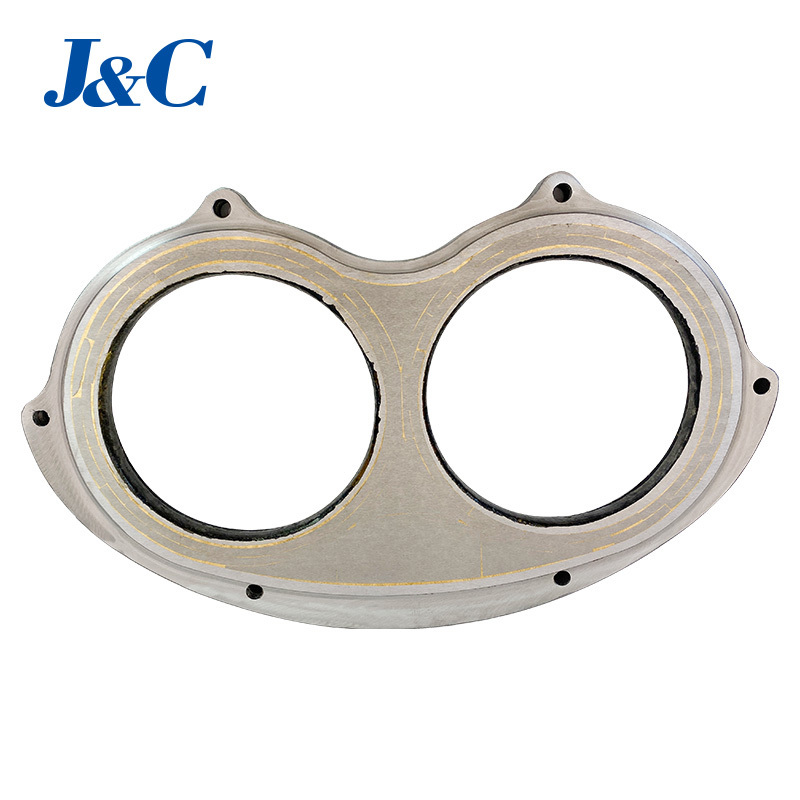

SANY DN200 DN230 Concrete Pump Wear Plate Tungsten Carbide 15mm

Product Description

Product Name & Concept: The Long-Life Eye Plate is an upgraded wear component designed for extended operation under severe abrasive conditions.
Purpose: It acts as a durable sealing interface, enduring constant friction from the cutting ring and abrasive concrete to keep the system functioning.
Key Advantages: Engineered for maximum durability to minimize machine downtime for maintenance. Offers superior cost-effectiveness by protecting adjacent parts and ensuring uninterrupted operation.

SANY DN200 DN230 Wear Resistant Spectacle Plate Concrete Pump Glasses Plate Construction Machinery Parts

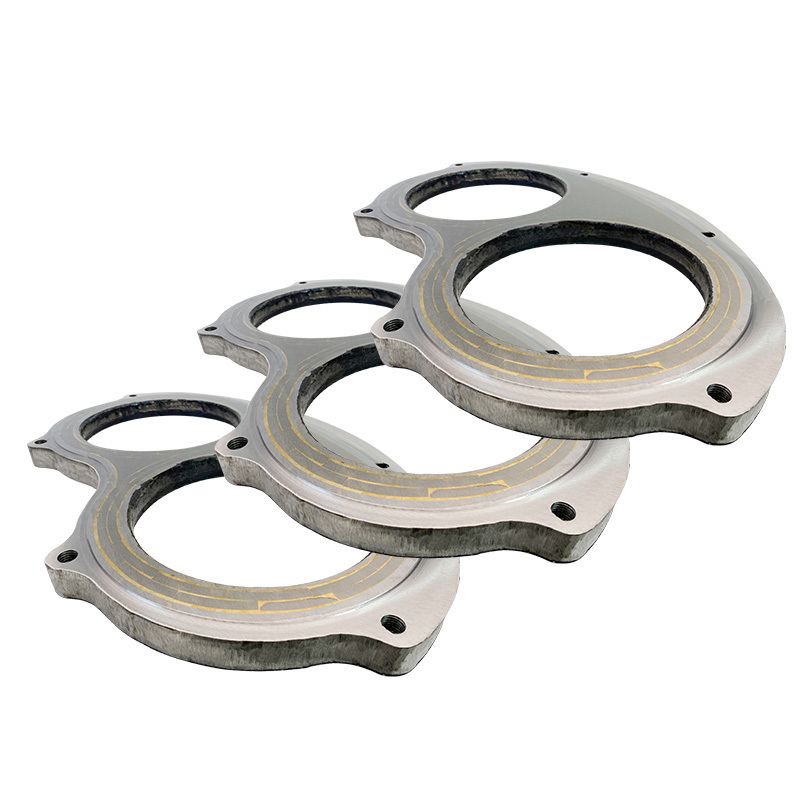

Concrete Pump Tungsten Carbide Spectacle Wear Plate

Dual carbide 15+5mm
Single carbide 15mm
Full carbide 20mm for choices

Description	Item No. (Size)	Weight (kgs)	Material
Wear Plate	590653 (200)	20.87	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500011 (230)	22.5	Carbide HRA: ≥85 Electrode HRC: ≥65
Wear Plate	500007 (260)	24.25	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	590654/590660 (200)	7.92	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500012/590129 (230)	8.3	Carbide HRA: ≥85 Electrode HRC: ≥65
Cutting Rings	500008/590165 (260)	8.1	Carbide HRA: ≥85 Electrode HRC: ≥65

How to Increase Service Life of Concrete Pump Spectacle Wear Plate and Cutting Ring?

When the pump is in operation, wear occurs due to three primary actions on cutting rings and spectacle plates:

Friction created during operation
Impact stress from back pressure for sealing
Concrete flow abrasion

To reduce maintenance costs, we recommend using carbide type components and periodically changing the wear ring position.

Cutting Rings

Available in sizes: 200/230/260

Options: Single Alloy, Twin Alloy, Full Alloy
