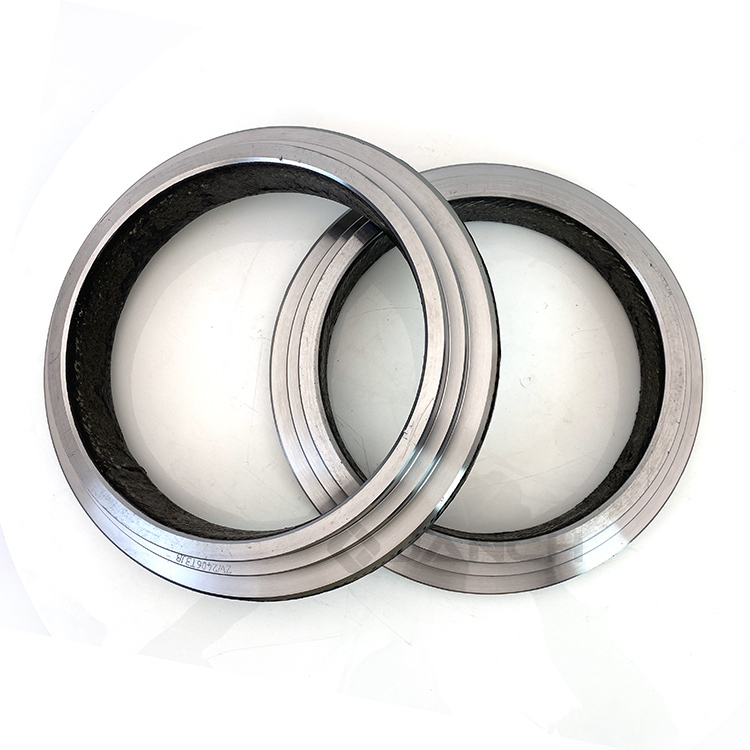

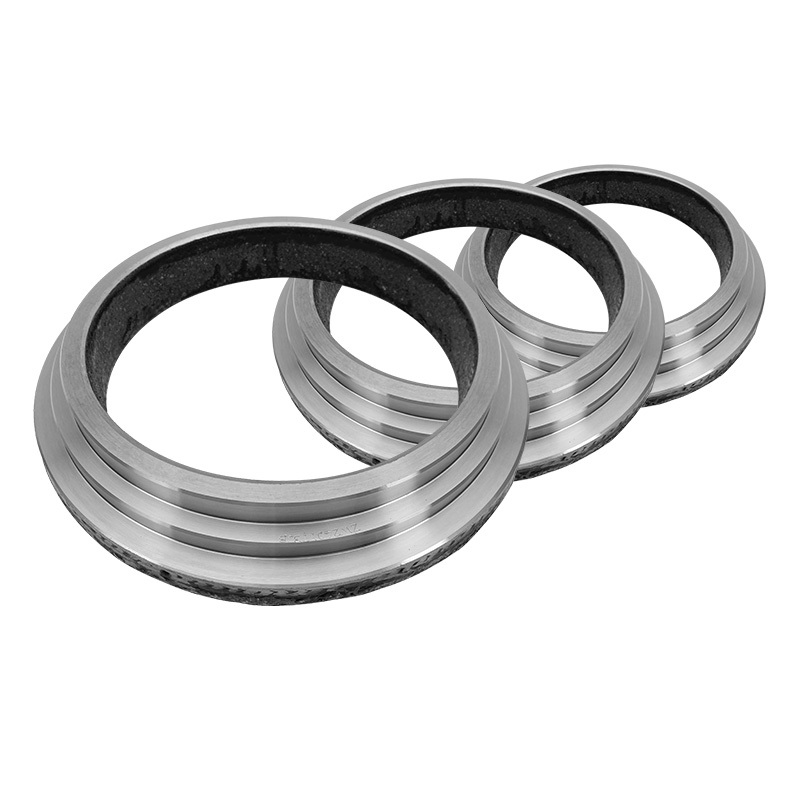

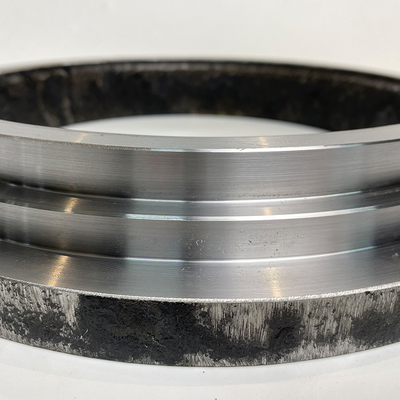

Concrete Pump Tungsten Carbide Cutting Ring DN200/230/260

Cutting Ring for Concrete Pump Trucks

Concept:
The cutting ring is a crucial wear part located in the S-tube valve assembly of a concrete pump. It works in tandem with the rubber/polyurethane wear plate to create a tight, sliding seal.

Purpose:
Its primary function is to provide a hard, durable sealing surface for the S-tube. As the S-tube shifts to alternate between concrete cylinders, the cutting ring shears through any residual aggregate between itself and the wear plate, preventing pressure loss and ensuring a smooth, continuous flow of concrete.

Key Advantages:

• Superior Abrasion Resistance: Made from high-grade, heat-treated steel to withstand the extreme abrasion of concrete mixes.

• Excellent Seal Integrity: Maintains an effective seal throughout the pumping process, maximizing pressure and efficiency.

• Protects System: Prevents concrete slurry from contaminating the hydraulic system, protecting other valuable components.

• Durable Performance: Engineered for a long service life, reducing the frequency of replacement and associated downtime.

Alloy and Titanium Precision Cutting Ring Construction Machinery Part Concrete Pump Spares Putzmeister Intermediate Ring

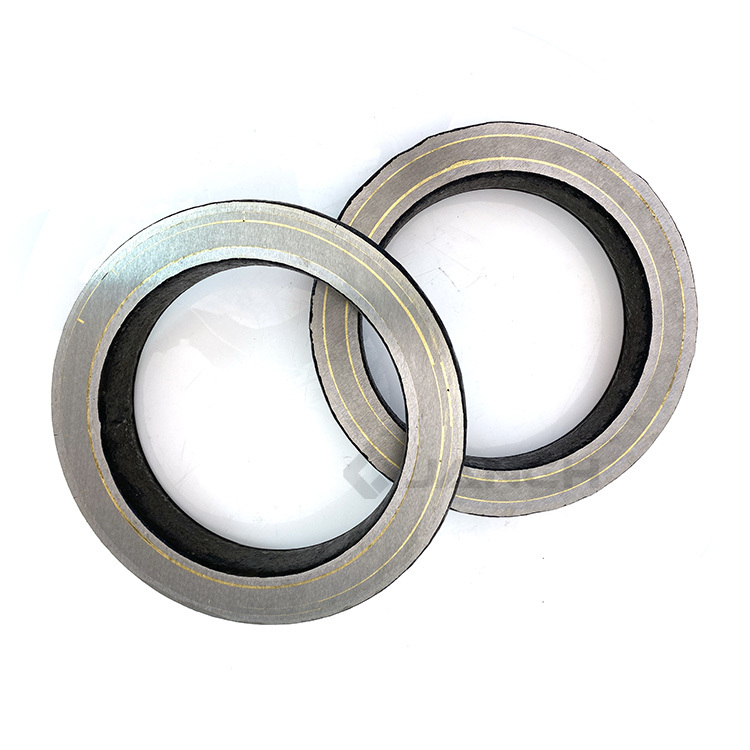

Concrete Pump Tungsten Carbide Spectacle Cutting Rings

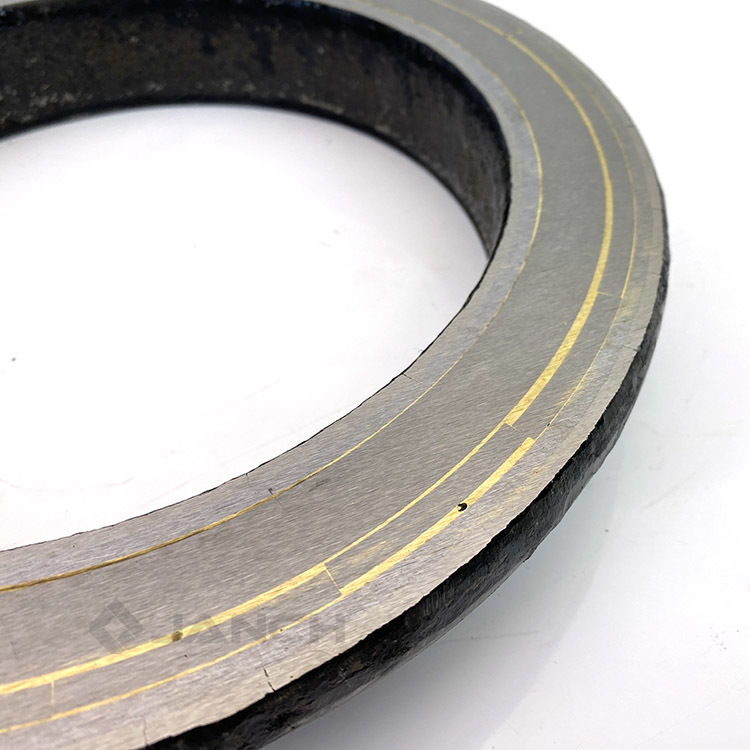

Available in dual carbide 15+5mm or single carbide 15mm configurations.

Item No./Size	Weight (kgs)	Material
590654/590660(200)	7.92	Carbide HRA: ≥85 Electrode HRC: ≥65
500012/590129(230)	8.3	Carbide HRA: ≥85 Electrode HRC: ≥65
500008/590165(260)	8.1	Carbide HRA: ≥85 Electrode HRC: ≥65

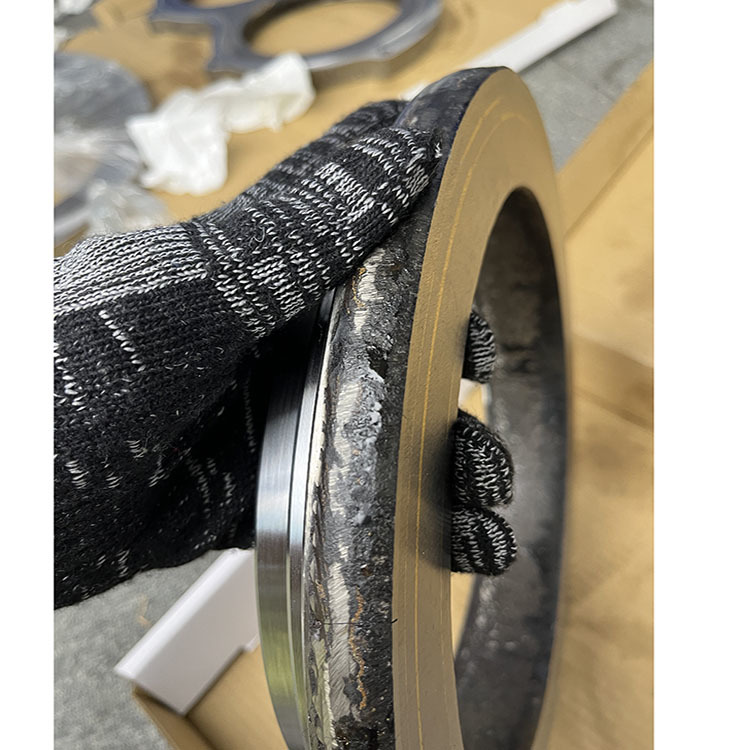

Extending Service Life of Concrete Pump Wear Parts

Primary causes of wear in cutting rings and spectacle plates during operation:

• Friction from continuous rubbing against wear parts
• Impact stress from intentional back pressure for improved sealing
• Concrete flow abrasion

To reduce maintenance costs, we recommend using carbide components and periodically rotating wear ring positions.
