VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

5piece
MOQ
$129.00/pieces 1-9 pieces
Price
VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials
Features Gallery Product Description Request A Quote
Features
Specifications
Application: General
Port Size: DN250, 10" (DN250)
Power: Pneumatic
Temperature Of Media: Low Temperature, Medium Temperature
Structure: BUTTERFLY
Customized Support: OEM, ODM
Product Name: Pneumatic Butterfly Valves
Body Material: Aluminum Alloy
Valve Disc: Ductile Iron
Drive Mode: Pneumatic Drive
Connection: Flange Ends
Seal Material: NBR, EPDM
Medium: Powdery, Granular Material
Basic Infomation
Place of Origin: China
Brand Name: Mandiwi, WAM, Sicoma, customized
Certification: ISO9001, ISO14001
Model Number: DN250
Payment & Shipping Terms
Packaging Details: 1pcs per corrugated carton, with foam protection
Delivery Time: 10-15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description


Product Description:

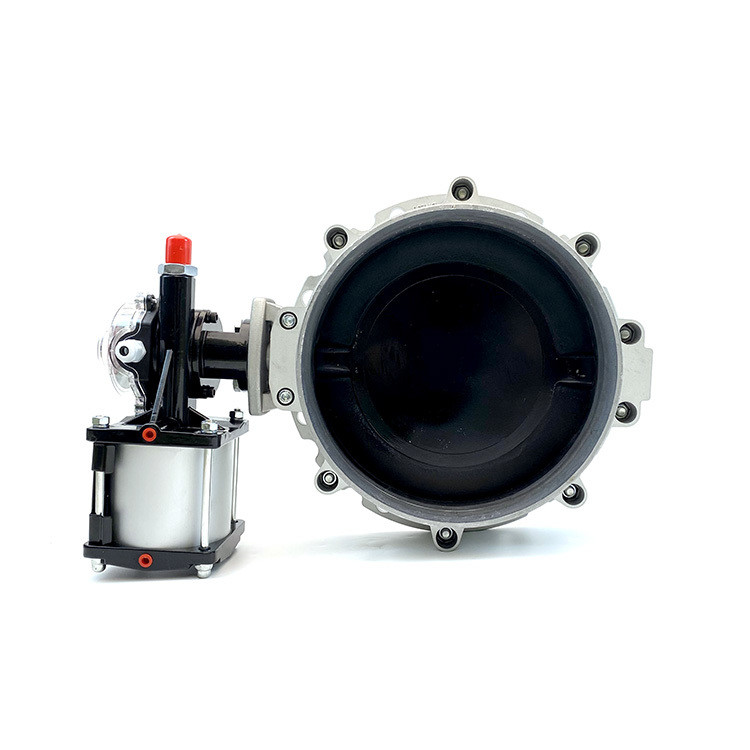

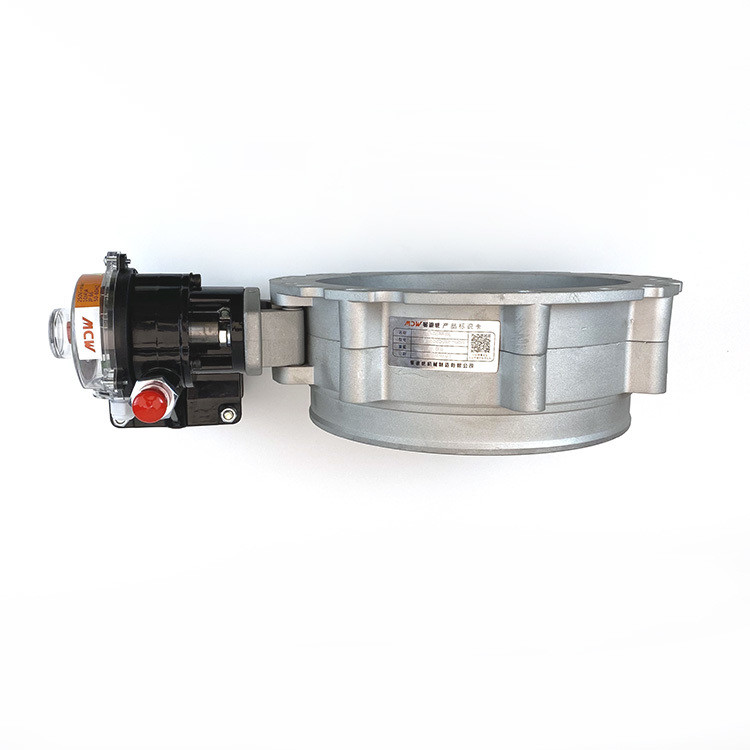

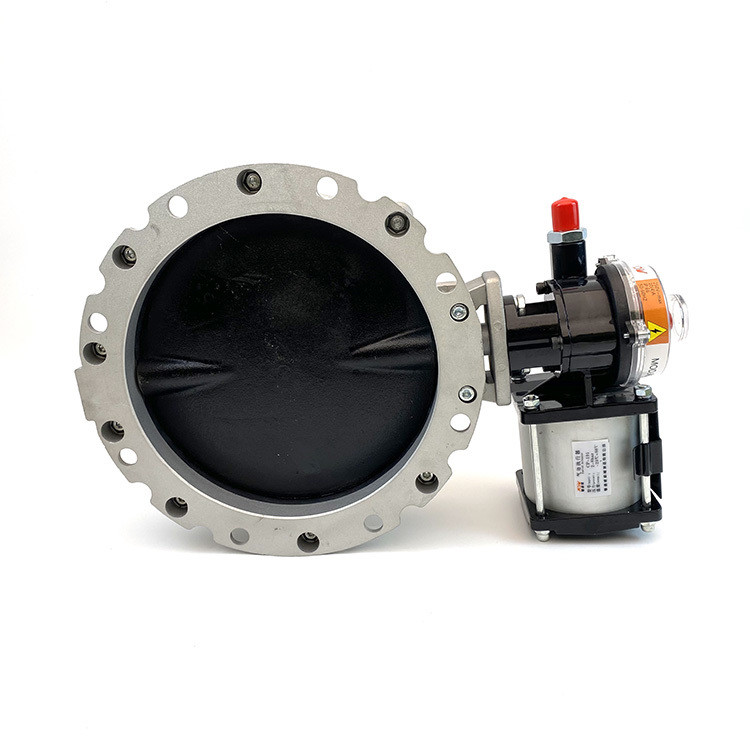

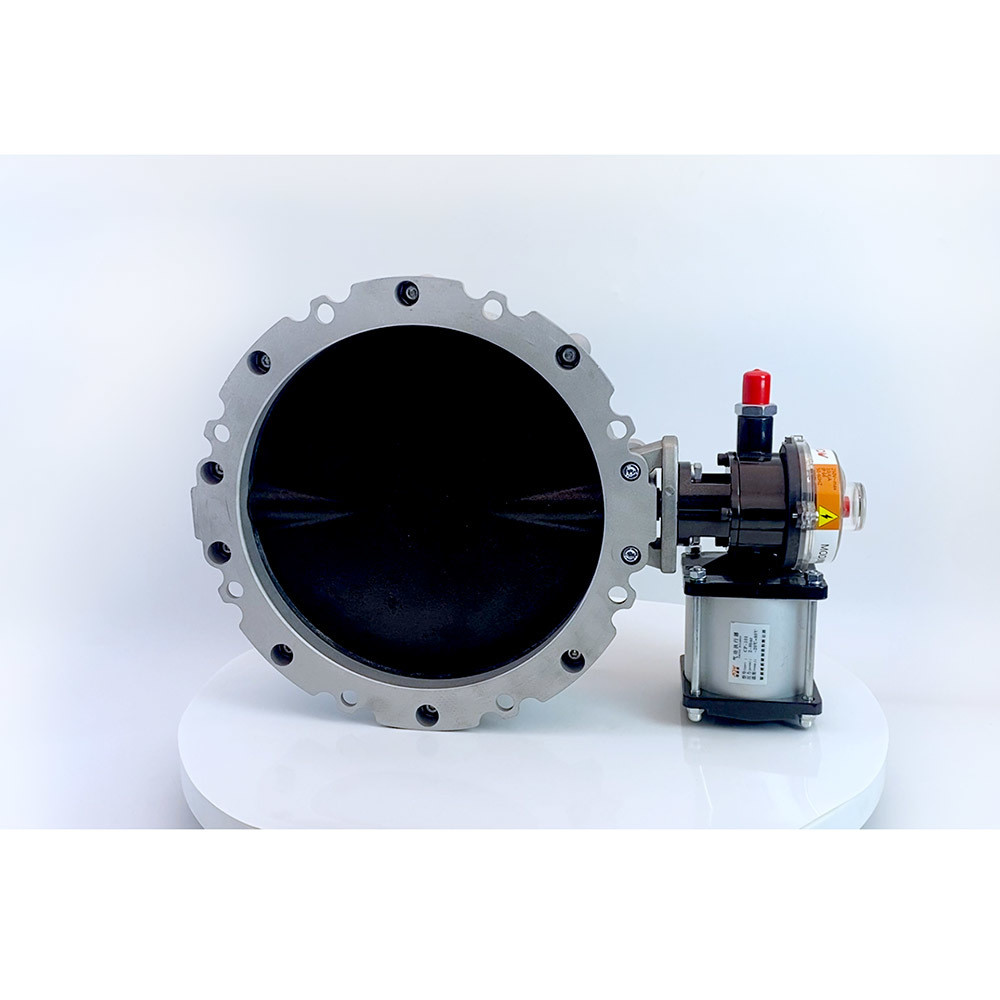

Mandiwi VFS pneumatic powder butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a cast iron or stainless steel swivel disc, and a pre-stressed elastomer seal; with the solenoid valve and cylinder connected to the pneumatic conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.



The durability test of opening and closing is more than 100,000 times.



MV1FS with top flange and beaded bottom section suitable for fixing a flexible sleeve

MV2FS with identical top and bottom flange



VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 0

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 1

Detail of Valve:



Plate/Disc

Disc in cast iron, or stainless steel. Adopt frame structure, high strength, good toughness, large flow area, small flow resistance



Seal of Valve

Soft sealing material, reliable sealing performance.



Valve body

High-pressure aluminum alloy die-cast bodies



Valve Stem

High Strength stem provides maximum strength for high torque applications.



VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 2

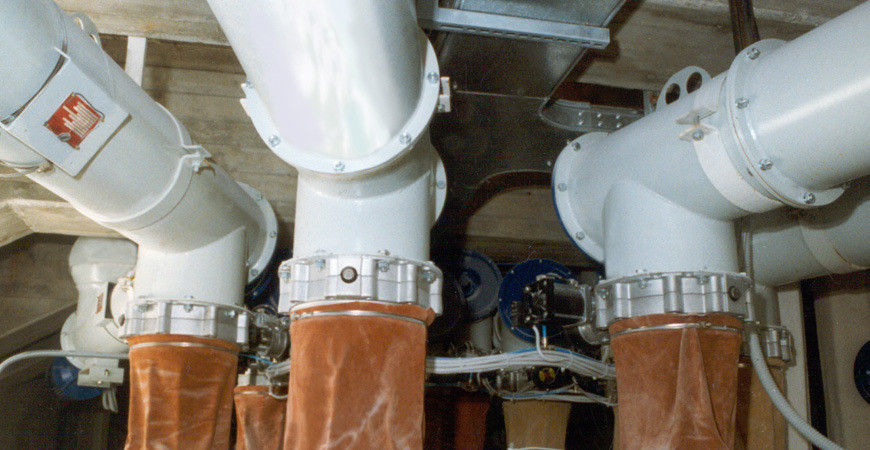

Application:

construction, chemical industry, water supply, petroleum, light and heavy industry, electric power, shipping



VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 3

Packing & Delivery

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 4

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



Company Profile:

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 5

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants and Crushers.



Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, Wearing Parts, etc.



After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 6



Our Office (Working Time):

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 7



Meeting Room:

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 8



Certifications:

ISO9001, ISO14001, CE, PATENT, ETC

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 9

Why Choose Us:

Experienced in this industry for many years,

As top 5 supplier in the industry

Professional Team (R&D, Marketing, Service)

5000square meters central warehouse

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 10

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials 11
