Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants

5 pieces
MOQ
$320.00/pieces 5-29 pieces
Price
Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants
Features Gallery Product Description Request A Quote
Features
Specifications
Application: General
Port Size: 250mm
Power: Pneumatic
Temperature Of Media: Low Temperature, Normal Temperature
Structure: BUTTERFLY
Customized Support: OEM, ODM
Product Name: Powder Butterfly Valve DN250 Valves
DN(Nominal Diameter): 100mm(4")~400mm(16")
Driving Mode: Pneumatic , Or Manual
Sealing Material: NBR, EPDM
Suitable Media: Powder, Water, Sewage, Admixture Liquid,etc
Working Pressure: Low Pressure
Body Material: Aluminium Alloy
Connection: Flange
Working Temperature: -15℃ ~+150℃
Disc Material: Stainless Steel, Ductile Iron
Highlight:

VFS Series Butterfly Valve

,

Ductile Iron Disc Butterfly Valve

,

Powder Butterfly Valve

Basic Infomation
Place of Origin: China
Brand Name: Mandiwi, WAM, Sicoma,
Model Number: MV1FS250GBN
Payment & Shipping Terms
Packaging Details: 1pcs per corrugated carton, with foam protection
Delivery Time: 10-15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

Ductile Iron Disc Mandiwi Powder VFS Series Butterfly Valve For Cement Batching Plants





Products Description:





MV1FS with top flange and beaded bottom section suitable for fixing a flexible sleeve

MV2FS with identical top and bottom flange

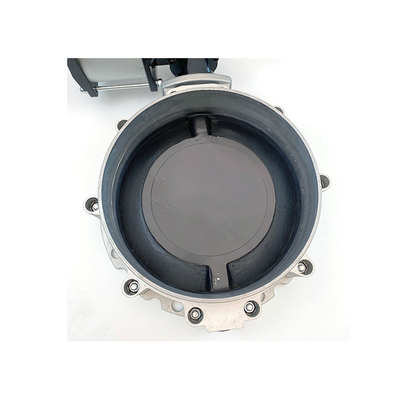

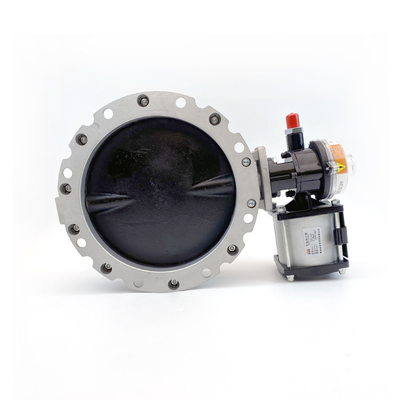

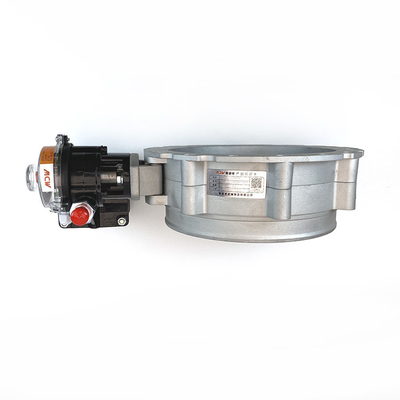

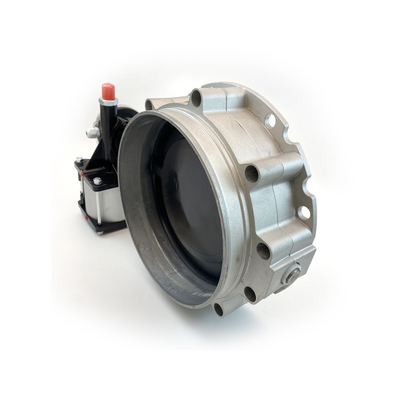

Mandiwi VFS pneumatic powder butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a cast iron or stainless steel swivel disc, and a pre-stressed elastomer seal;

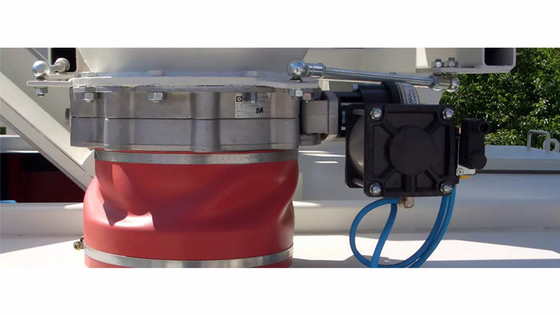

with the solenoid valve and cylinder connected to the pneumatic conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.



The durability test of opening and closing is more than 100,000 times.



Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 0

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 1

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 2

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 3

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 4



Product Paramenters:

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 5

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 6





Safety Caution:



1. Never put your hands between the disk and the valve body while the valve is working.

2. Do not expose parts of your body to the compressed air jet.

3. Electrical connections must be carried out by the qualified personnel only.

4. Follow general safety instructions.





Product packaging:

Ductile Iron Disc Mandiwi VFS Series Powder Butterfly Valve For Cement Batching Plants 7
