Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials

2 pieces
MOQ
$320.00/pieces 2-49 pieces
Price
Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials
Features Gallery Product Description Request A Quote
Features
Specifications
Application: General
Port Size: 150~400mm
Power: Pneumatic
Temperature Of Media: Low Temperature, Normal Temperature
Structure: BUTTERFLY
Media: Powdery, Granular Material, Liquid, Etc
Customized Support: OEM, ODM
Product Name: Pneumatic Actuator Powder Butterfly Valves DN300
DN(Nominal Diameter): 100mm(4")~400mm(16")
Driving Mode: Pneumatic , Or Manual
Sealing Material: NBR, EPDM,etc
Working Pressure: 1.0-1.6Mpa (10-25bar)
Suitable Media: Powder, Water, Cement, Sewage, Admixture Liquid,etc
Body Material: Aluminium Alloy
Connection: Flange
Working Temperature: -20℃ ~+80℃
Disc Material: Stainless Steel, Ductile Iron, Customize
Highlight:

16in Butterfly Valves

,

Granular Materials Butterfly Valves

,

Powdery Materials Butterfly Valves

Basic Infomation
Place of Origin: China
Brand Name: Mandiwi, WAM, Sicoma
Payment & Shipping Terms
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

8in/10in/14in/16in Butterfly Valve For Powdery And Granular Materials In Batching Plants

Products Description:

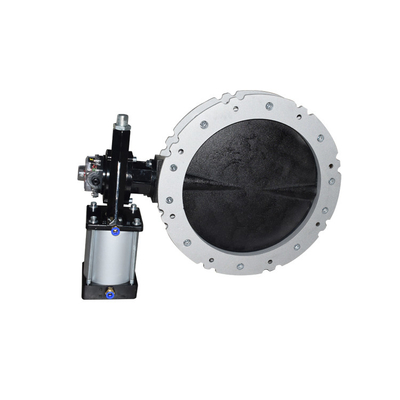

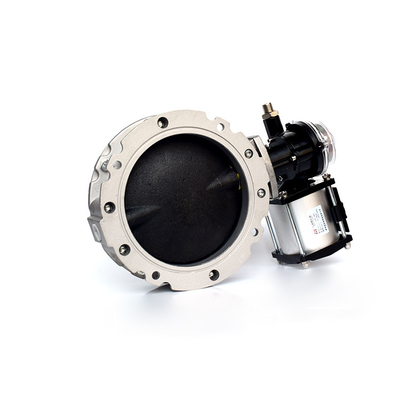

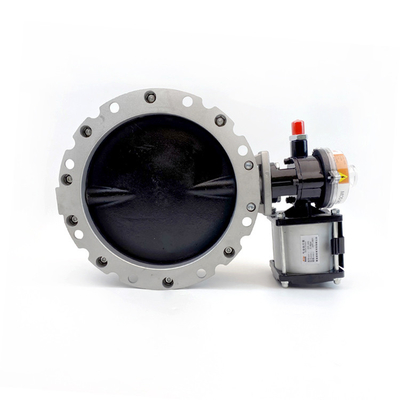

VFS pneumatic actuated butterfly valve,

with high pressure alluminum alloy die cast body, ductile iron valve disc.

for powdery and granular material.

single flange and double flange available.



optional device:

solenoid valve, actuator

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 0



Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 1

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 2



Mandiwi VFS series butterfly valves

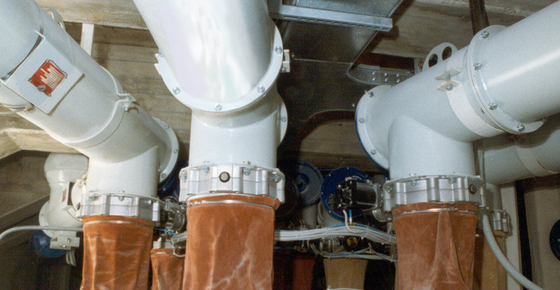

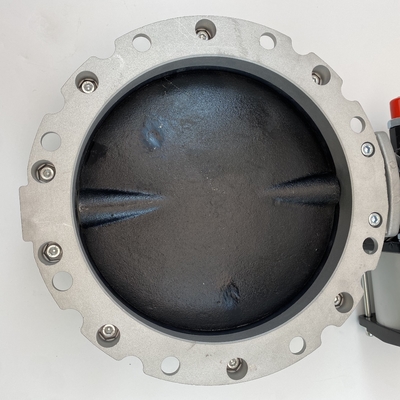

Mandiwi VFS series pneumatic butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a ductile iron or

stainless steel swivel disc, and a pre-stressed elastomer seal; with the solenoid valve and cylinder connected to the pneumatic

conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.



The durability test of opening and closing is more than 100,000 times.



Details Images

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 3

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 4

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 5





Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 6

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 7

Product packaging

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 8

Certifications

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 9

Company Profile

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 10

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.



After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 11

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 12

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 13

Why Choose Us

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 14

Professional Team from Mandiwi

5000square meters warehouse

Batching Plants Butterfly Valves 8in/10in/14in/16in For Powdery And Granular Materials 15
