Name: Aluminum Alloy Butterfly Valve Lightweight For Admixture Liquid
Brand: Hunan Jiancheng Technology Co., Ltd
SKU: MV2FS400GBN
Price: 7.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Temperature Of Media: Low Temperature, Normal Temperature

Structure: BUTTERFLY

Customized Support: OEM, ODM

Product Name: Single Double Flanged VFS Series Butterfly Valve With Handle Lever

DN(Nominal Diameter): 100mm(4")~400mm(16")

Driving Mode: Pneumatic , Or Manual

Sealing Material: NBR, EPDM, Etc

Suitable Media: Powder, Water, Sewage, Admixture Liquid,etc

Working Pressure: 1.0-1.6Mpa (10-16bar)

Body Material: High Pressure Aluminium Alloy Die-cast

Connection: Flange

Working Temperature: -15℃ ~+120℃

Disc Material: Stainless Steel, Ductile Iron

Highlight:

Aluminum Alloy Butterfly Valve

Lightweight Butterfly Valve

Admixture Liquid Butterfly Valve

Basic Infomation

Place of Origin: China

Brand Name: Mandiwi,WAM,Sicoma

Model Number: MV2FS400GBN

Payment & Shipping Terms

Packaging Details: 1pcs per corrugated carton, with foam protection

Delivery Time: 10-15 working days

Payment Terms: T/T, LC, Trade assurance Order, Western Union

Gallery

Aluminum Alloy Butterfly Valve Lightweight For Admixture Liquid

Product Description

Aluminum Alloy Butterfly Valve For Admixture Liquid In Durable And Lightweight Design

Products Description:

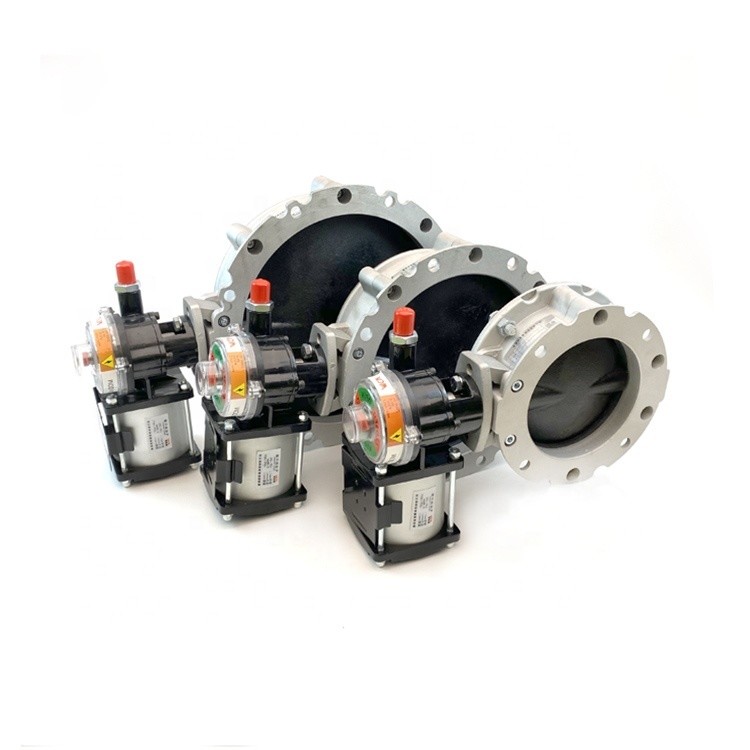

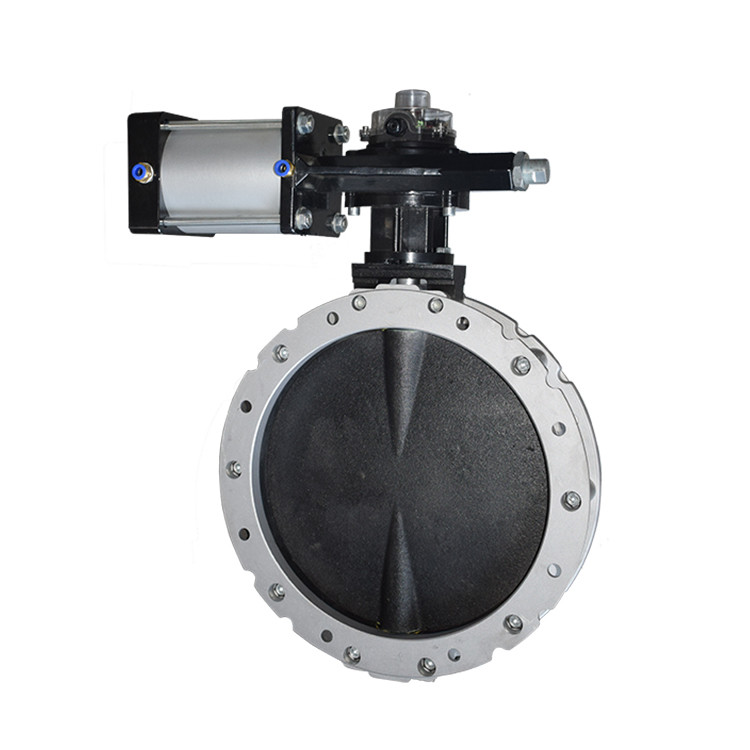

Mandiwi VFS pneumatic powder butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a cast iron or stainless steel swivel disc, and a pre-stressed elastomer seal;

with the solenoid valve and cylinder connected to the pneumatic conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.

The durability test of opening and closing is more than 100,000 times.

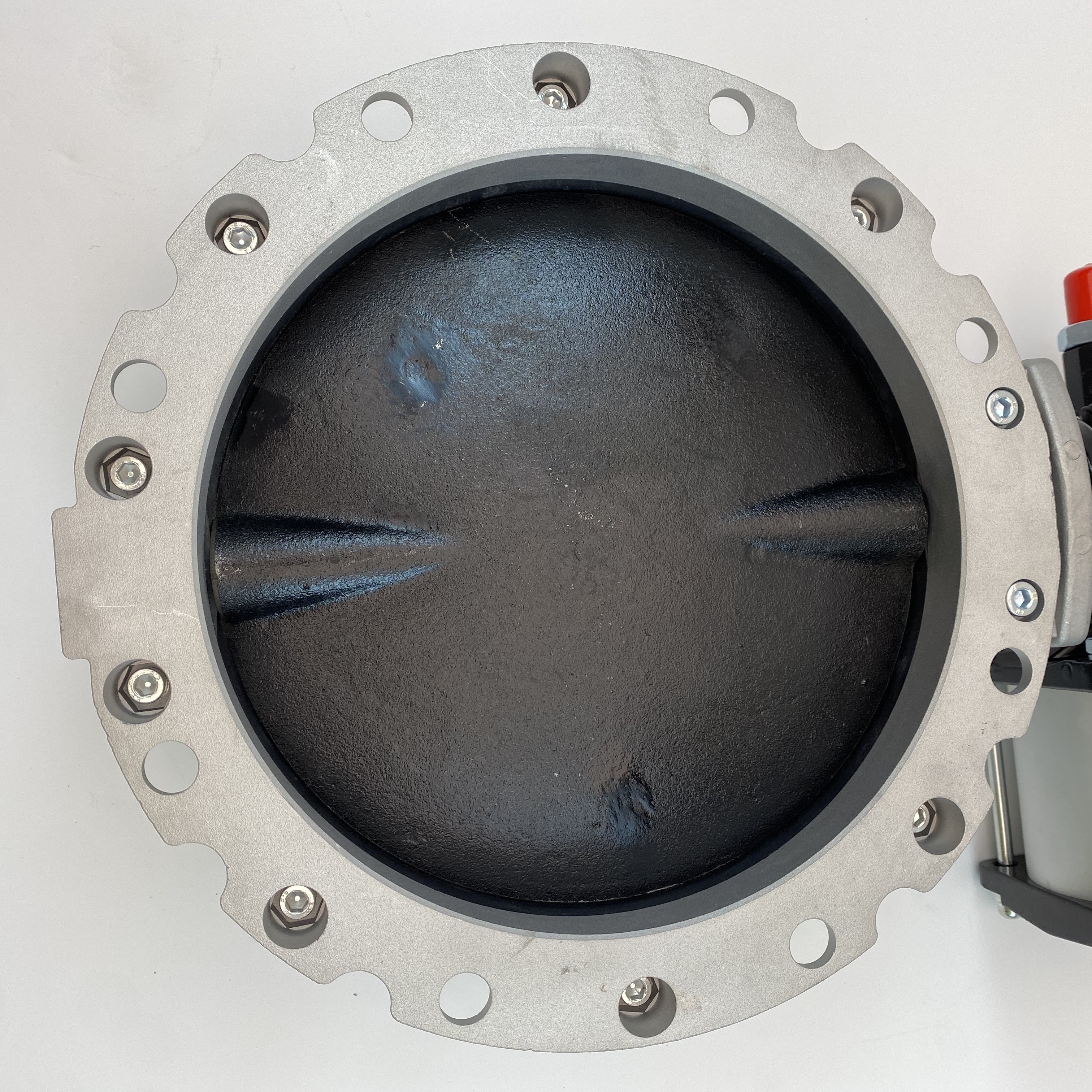

Plate

Disc in cast iron, or stainless steel. Adopt frame structure, high strength, good toughness, large flow area, small flow resistance

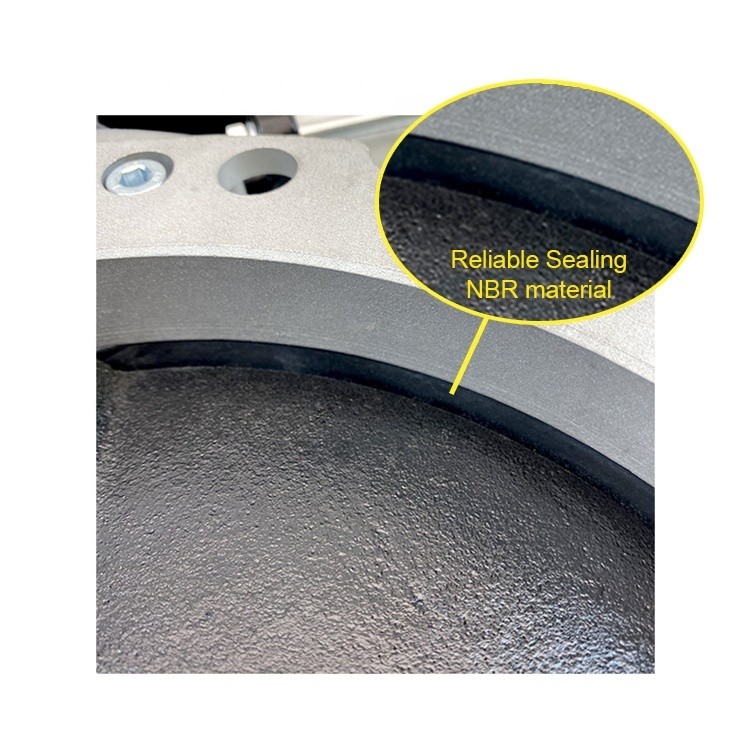

Seal

Soft sealing material, reliable sealing performance.

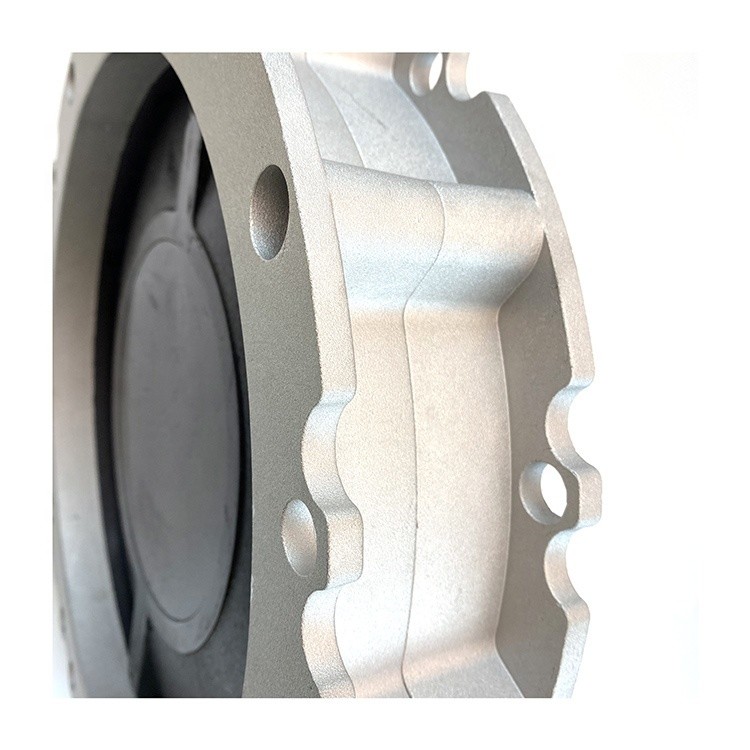

Valve body

High-pressure aluminum alloy die-cast bodies

Valve Stem

High Strength stem provides maximum strength for high torque applications.

Aluminum Alloy Butterfly Valve Lightweight For Admixture Liquid 4

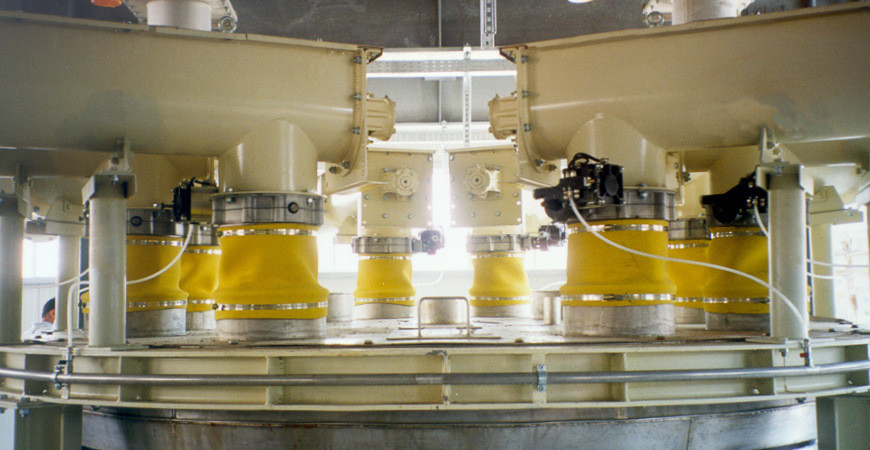

Application:

fixed beneath screw conveyor

Company Profile:

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
