Home /Products/Butterfly Valves/350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

5 pieces
MOQ
$405.00/pieces 5-29 pieces
Price
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Features Gallery Product Description Request A Quote
Features
Specifications
Power: Pneumatic
Temperature Of Media: Low Temperature, Normal Temperature
Structure: BUTTERFLY
Customized Support: OEM, ODM
Product Name: Powder Butterfly Valve DN300/350 Valves
DN(Nominal Diameter): 100mm(4")~400mm(16")
Driving Mode: Pneumatic , Or Manual
Sealing Material: NBR, EPDM
Suitable Media: Powder, Water, Sewage, Admixture Liquid,etc
Working Pressure: Low Pressure
Body Material: Aluminium Alloy
Connection: Flange
Working Temperature: -15℃ ~+150℃
Disc Material: Stainless Steel, Ductile Iron
Highlight:

350mm Port Size Butterfly Valve

,

Cement Pneumatic Powder Butterfly Valve

,

Batching Plants Butterfly Valve
Basic Infomation
Place of Origin: China
Brand Name: Mandiwi, WAM, Sicoma,
Model Number: BV1FS300GBN
Payment & Shipping Terms
Packaging Details: 1pcs per corrugated carton, with foam protection；
Delivery Time: 10-15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

Products Description:

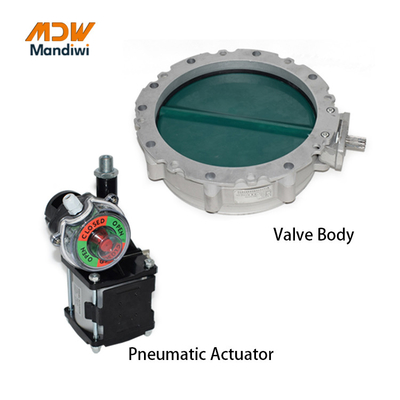

Pneumatic butterfly valves with actuator and limit swithch box.
High pressure alluminum alloy valve body
Single flange  or double flange connection.

Different valve disc available.
1) Aluminum plate
2) polyurethane board
3) ductile iron plate
4) stainless steel plate

350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 0
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 1

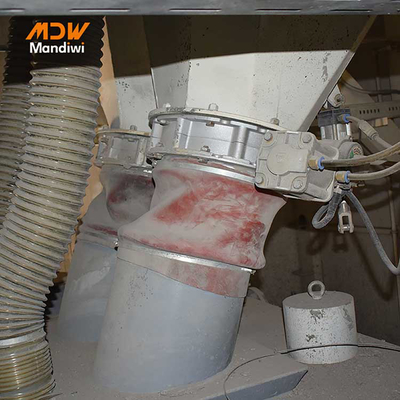

Fixed beneath the hopper
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 2
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 3
Product Paramenters:
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 4
Different styles available.
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 5
Company Profile:
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 6
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 7
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 8
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 9
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 10
Certifications
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 11
Why Choose Us
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 12
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 13
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 14
Product packaging
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media 15
