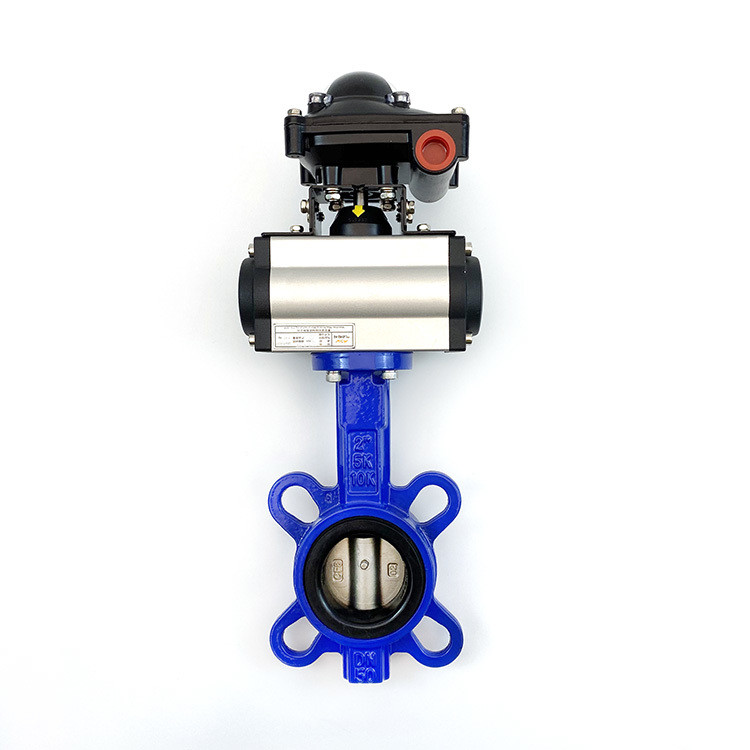

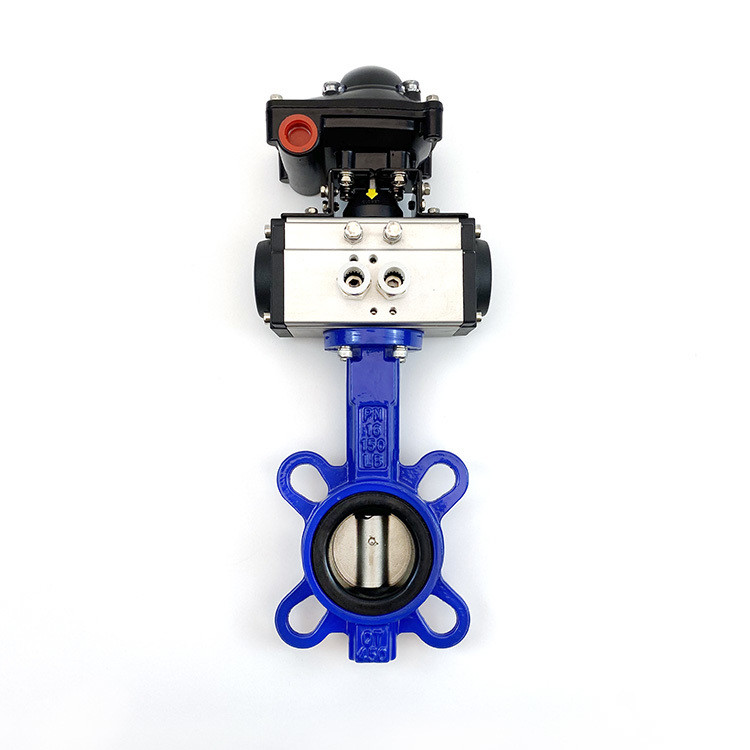

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator

Product Summary

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator Products Description: Mandiwi DN50 Wafer type pneumatic butterfly valves, Different sizes available, Normally from DN50 to DN400. Can be customized according to customer's requirement. Our butterfly valves adopt ...

Product Custom Attributes

Application:
General
Port Size:
50mm
Power:
Pneumatic
Temperature Of Media:
Low Temperature, Normal Temperature
Structure:
BUTTERFLY
Customized Support:
OEM, ODM, OBM, Software Reengineering
Product Name:
Pneumatic Actuator Powder Butterfly Valves
DN(Nominal Diameter):
50mm(4")~400mm(16")
Driving Mode:
Pneumatic, Or Manual
Sealing Material:
NBR, EPDM
Suitable Media:
Powder, Water, Cement, Sewage, Admixture Liquid,etc
Working Pressure:
1.0-1.6Mpa (10-25bar)
Body Material:
Aluminium Alloy
Connection:
Wafer
Working Temperature:
-20℃ ~+80℃
Disc Material:
Stainless Steel, Ductile Iron
Highlight:

DN50 Wafer Butterfly Valves

,

NBR Sealing Wafer Butterfly Valves

,

Pneumatic Actuator Wafer Butterfly Valves

Basic Properties

Place of Origin:
China
Brand Name:
MDW, Mandiwi
Model Number:
DN50

Trading Properties

Minimum Order Quantity:
5 pieces
Price:
$165.00/pieces 5-9 pieces
Packaging Details:
1pcs per corrugated carton, with foam protection
Delivery Time:
10-15 working days
Payment Terms:
T/T, LC, Trade assurance Order, Western Union

Product Description

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator

Products Description:
Mandiwi DN50 Wafer type pneumatic butterfly valves,

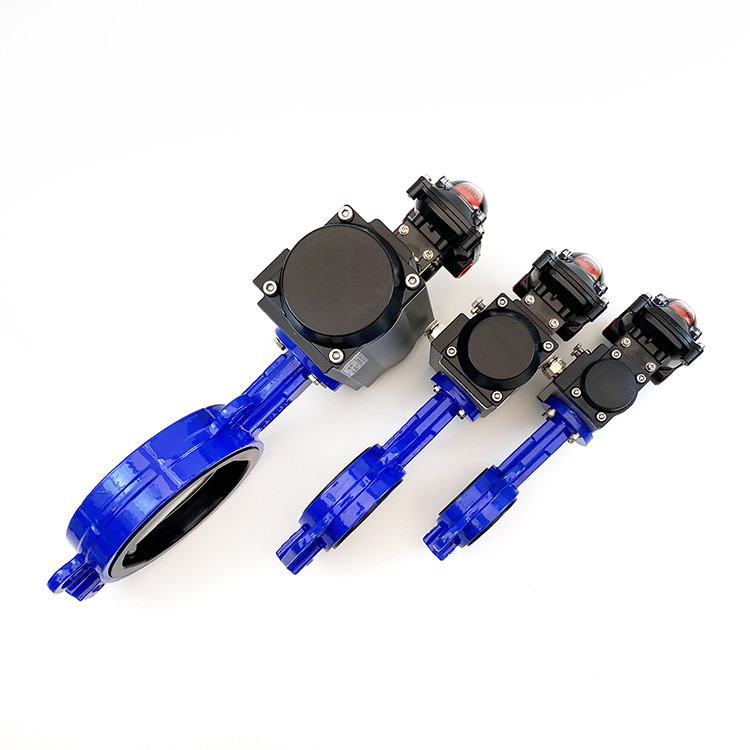

Different sizes available, Normally from DN50 to DN400.
Can be customized according to customer's requirement.

Our butterfly valves adopt advanced manufacturing technology and high-quality materials to ensure product stability and reliability. Widely used for water, liquid, powdery and granular materials.

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 0
Mandiwi wafer butterfly valve is a control valve commonly used in industrial piping system.
Its working principle is based on the movement of the disc to open and close the valve.
The main components of the water wafr butterfly valve include the valve body, valve disc, valve stem, valve seal, etc.

The durability test of opening and closing is more than 100,000times.
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 1
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 2
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 3

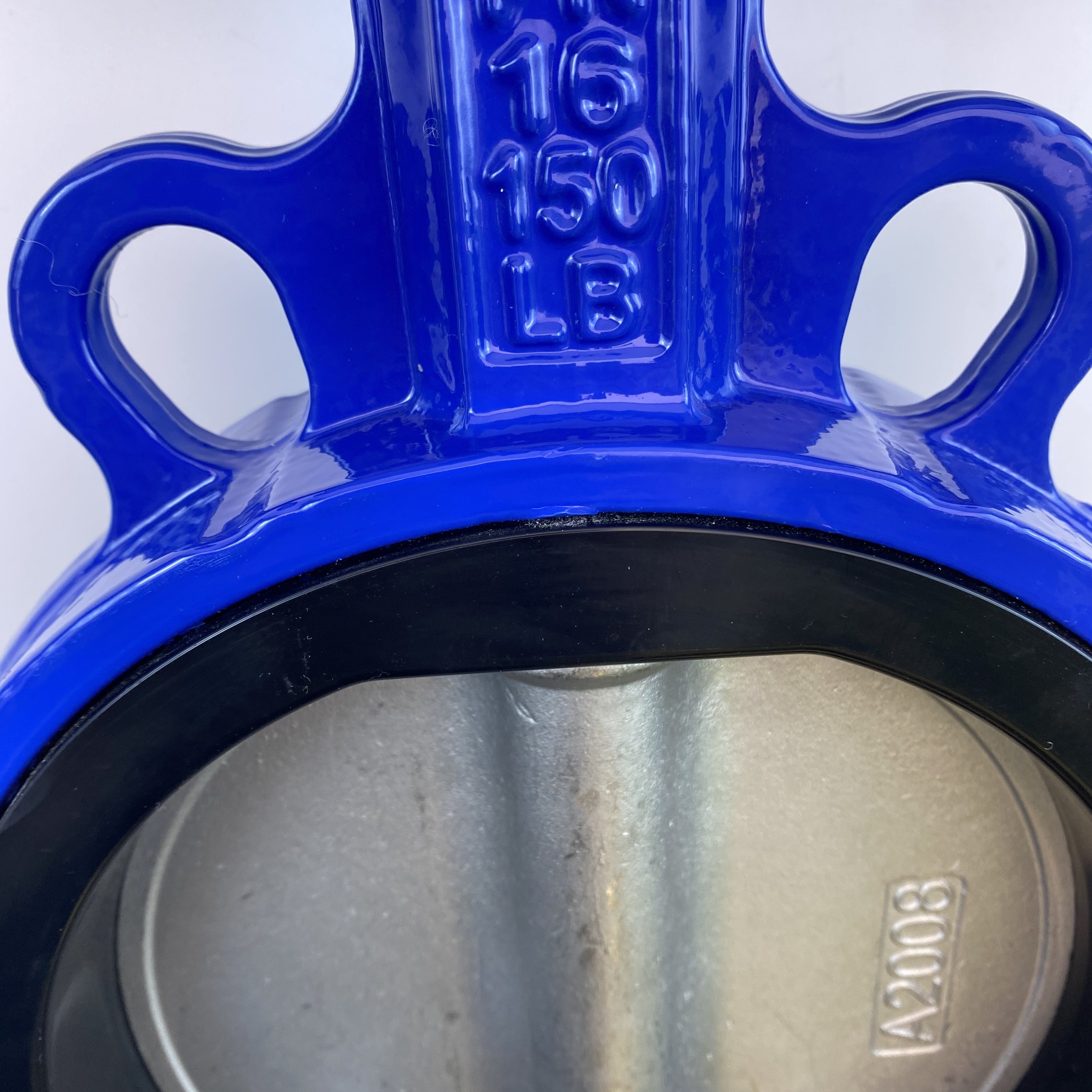

1. Swivel Disc in Stainless Steel

Water butterfly valves use stainless steel disc

Highly abrasion-resistant, corrosion resistant, good toughness, Excellent strength and small flow resistance.

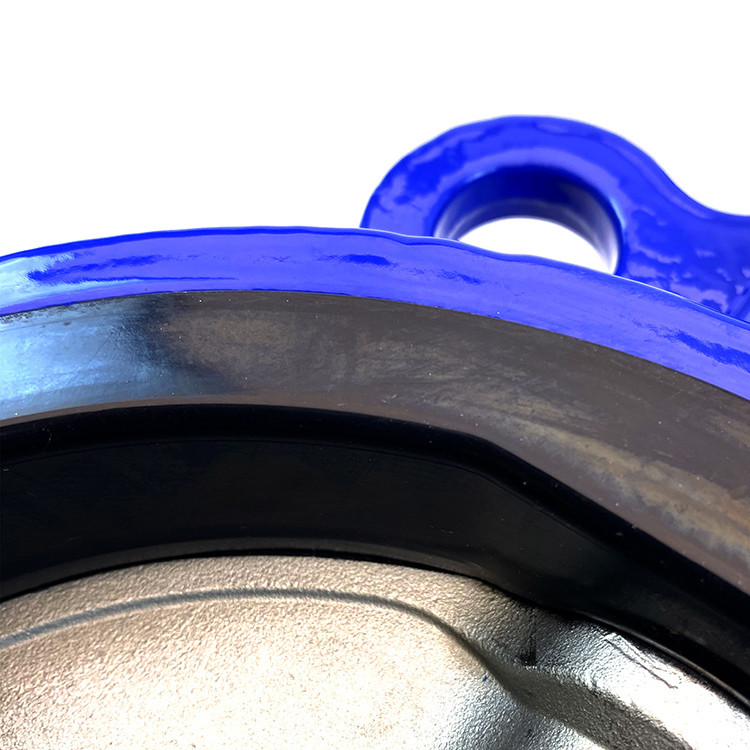

2. Reliable Sealing Performance

Excellent sealing performance, effectively prevent the leakage.

Different materials available, such as NBR, EPDM, PTFE, etc.

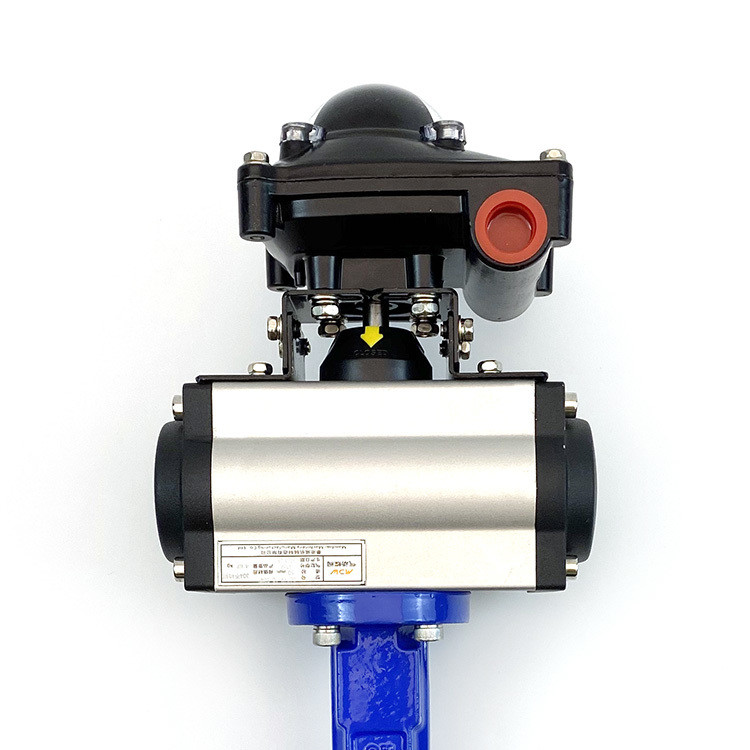

3. NAMUR Standard Pneumatic Actuator with Anodized Aluminum Alloy Cylinder

The pneumatic actuator’s surface is anodized and hardened, with high strength, good wear resistance, high temperature resistance and corrosion resistance.

Easy to fit and handle, low maintenance cost.



4. Customization is available

Can customize according to working condition and using demands, including different materials, different colors, etc.

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 4
Product packaging:
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 5


Why Choose Us:
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 6
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 7
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 8
Company Profile
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator 9
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
