Sealing Water Butterfly Valve DN150 With Pneumatic Actuators

5 pieces
MOQ
$115.00/pieces 5-49 pieces
Price
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators
Features Gallery Product Description Request A Quote
Features
Specifications
Application: General
Port Size: DN150
Power: Pneumatic
Temperature Of Media: Low Temperature, Normal Temperature
Structure: BUTTERFLY
Media: Water, Liquid
Customized Support: OEM, ODM
Product Name: Pneumatic Actuator Powder Butterfly Valves
DN(Nominal Diameter): 50mm(4")~400mm(16")
Driving Mode: Pneumatic, Or Manual
Sealing Material: NBR, EPDM
Suitable Media: Powder, Water, Cement, Sewage, Admixture Liquid,etc
Working Pressure: 1.0-1.6Mpa (10-25bar)
Connection: Wafer Connection
Working Temperature: -20℃ ~+80℃
Disc Material: Stainless Steel, Ductile Iron
Highlight:

DN150 Water Butterfly Valve

,

Sealing Water Butterfly Valve

,

Pneumatic Actuators Water Butterfly Valve

Basic Infomation
Place of Origin: China
Brand Name: MDW, Mandiwi
Model Number: DN150
Payment & Shipping Terms
Packaging Details: 1pcs per corrugated carton, with foam protection
Delivery Time: 10-15 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

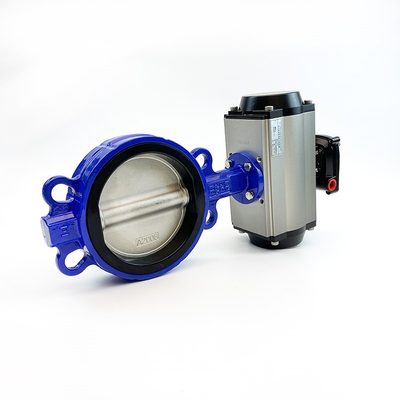

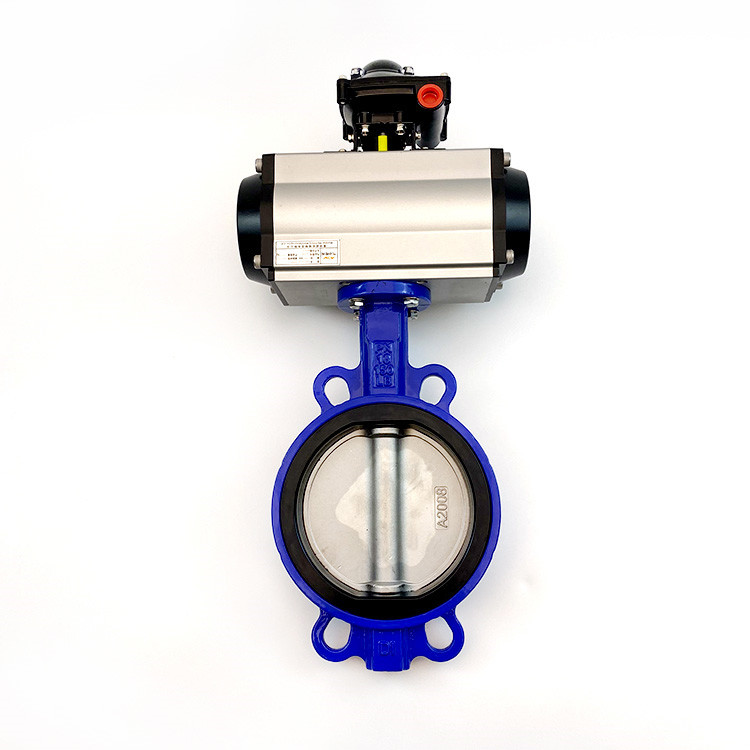

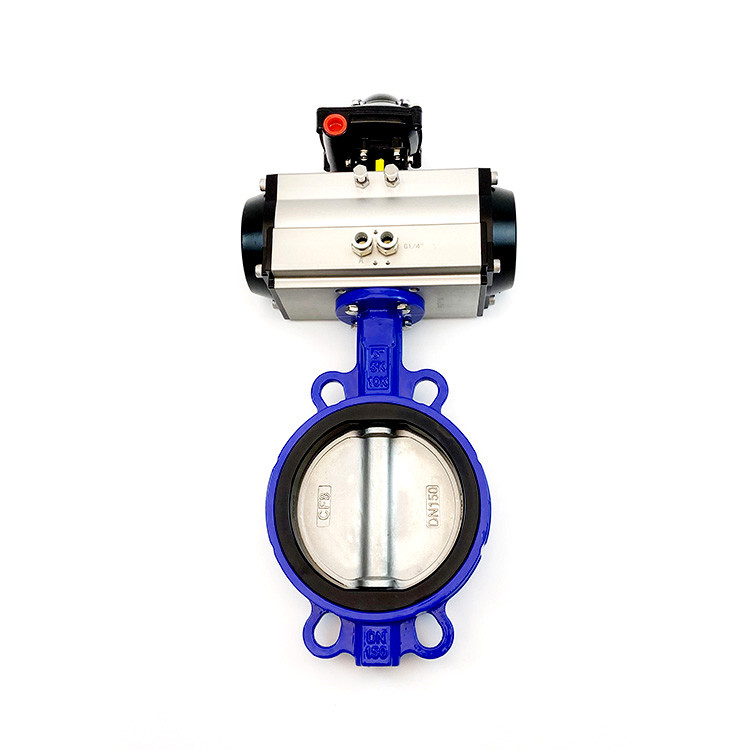

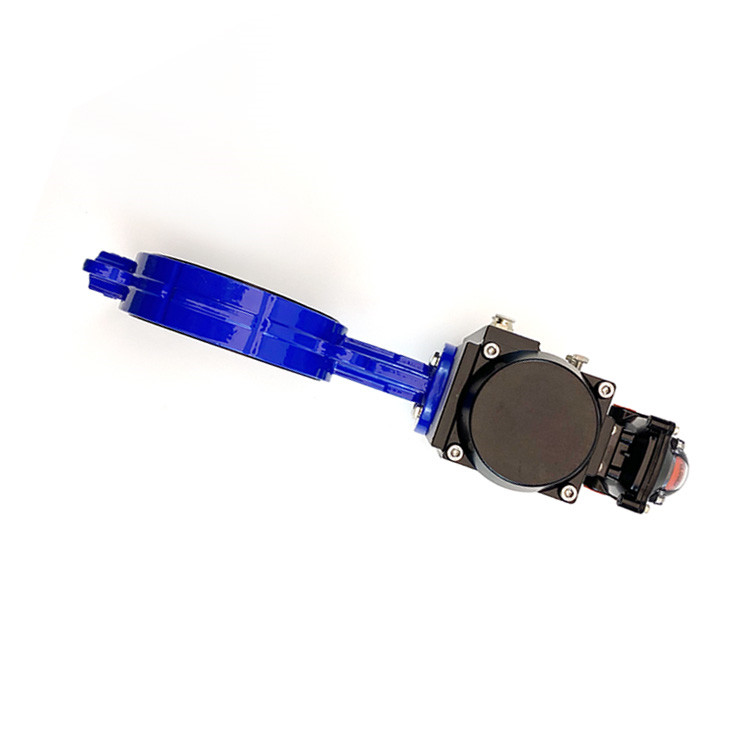

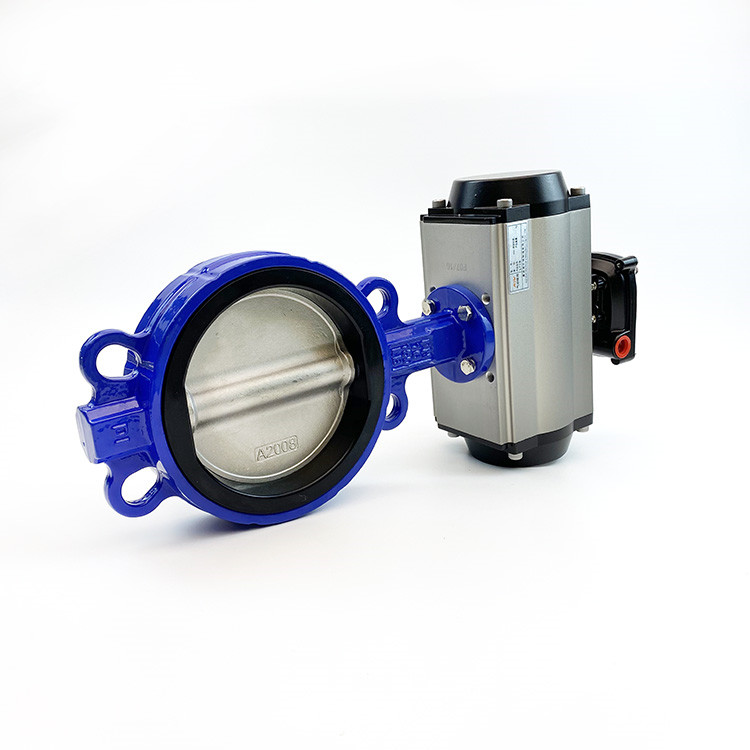

DN150 Water Butterfly Valve With Excellent Sealing Performance And Pneumatic Actuators

Products Description:

Wafer type, pneumatic actuated. with solenoid valve. DN150

Different sizes available, Normally from DN50 to DN400.

Can be customized according to customer's requirement.
Our butterfly valves adopt advanced manufacturing technology and high-quality materials to ensure product stability and reliability. Widely used for water, liquid, powdery and granular materials.


Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 0
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 1
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 2


Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 3


Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 4
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 5

1. Swivel Disc in Stainless Steel

Water butterfly valves use stainless steel disc, and VFS series powder butterfly valve choose ductile iron.

Highly abrasion-resistant, corrosion resistant, good toughness, Excellent strength and small flow resistance.



2. Reliable Sealing Performance

Excellent sealing performance, effectively prevent the leakage.

Different materials available, such as NBR, EPDM, PTFE, etc.

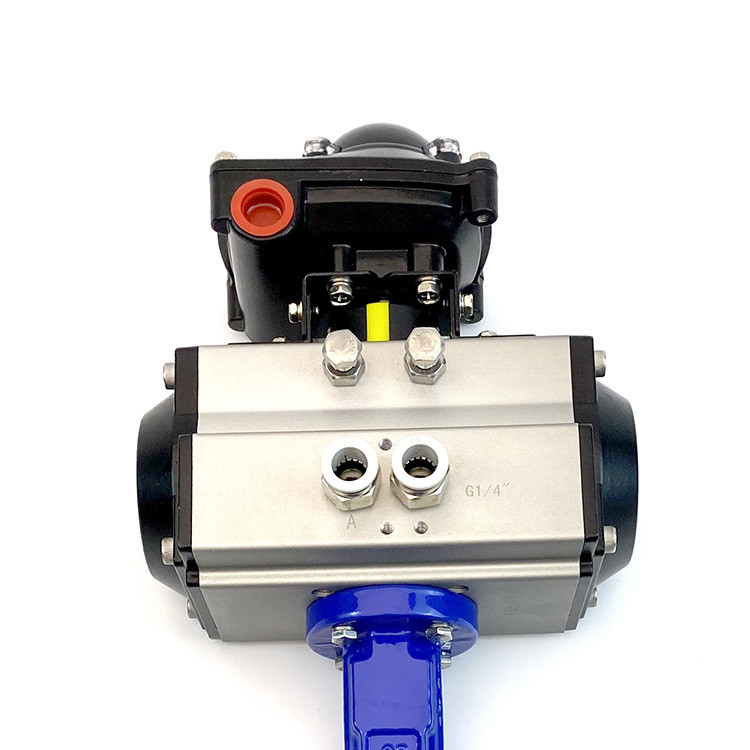

3. NAMUR Standard Pneumatic Actuator with Anodized Aluminum Alloy Cylinder

The pneumatic actuator’s surface is anodized and hardened, with high strength, good wear resistance, high temperature resistance and corrosion resistance.

Meet NAMUR standard and ISO5211 standard. Easy to fit and handle, low maintenance cost.



4. Customization is available

Can customize according to working condition and using demands, including different materials, different colors, etc.



5.The durability test of opening and closing is more than 100,000times.


Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 6

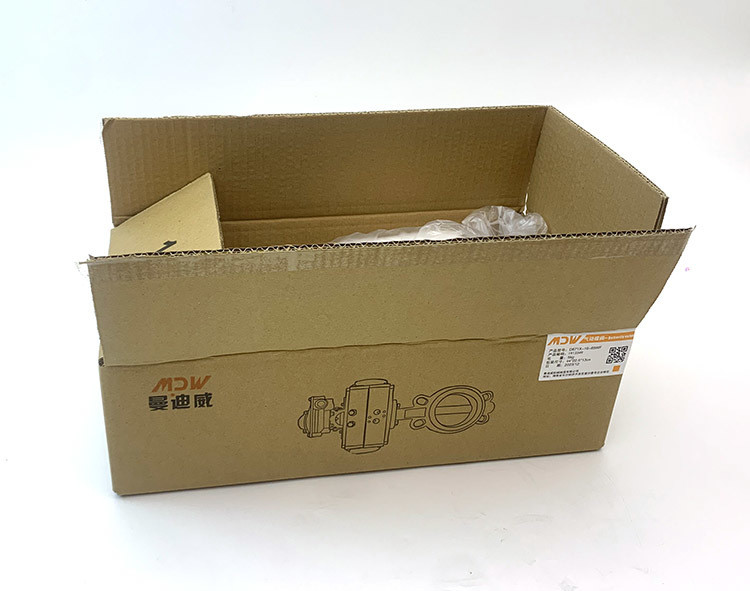

Product packaging



Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 7


Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 8


Why Choose Us
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 9
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 10
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 11
Company Profile
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 12
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 13
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 14
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 15
Our Clients
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 16
Certifications
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 17
Exhibition
Sealing Water Butterfly Valve DN150 With Pneumatic Actuators 18
