Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media

Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
<
Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
Quality Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media factory
>

Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media

Product Summary

Customized Pneumatic Actuated Water Butterfly Valve DN50-DN400 For Water Liquid Media Products Description: Mandiwi wafer butterfly valve is a control valve commonly used in industrial piping system. Its working principle is based on the movement of the disc to open and close the valve. The main ...

Product Custom Attributes

Port Size:
50~400mm
Power:
Pneumatic
Temperature Of Media:
Low Temperature, Normal Temperature
Structure:
BUTTERFLY
Media:
Water, Liquid, Etc
Customized Support:
OEM, ODM
Product Name:
Pneumatic Actuator Powder Butterfly Valves
DN(Nominal Diameter):
50mm(4")~400mm(16")
Driving Mode:
Pneumatic, Electric, Or Manual
Sealing Material:
NBR, EPDM
Suitable Media:
Powder, Water, Cement, Sewage, Admixture Liquid,etc
Disc Material:
Stainless Steel, Ductile Iron
Body Material:
Ductile Iron
Working Pressure:
1.0-1.6Mpa (10-16bar)
Working Temperature:
-20℃ ~+80℃
Connection:
Wafer Connection
Highlight:

Customized Pneumatic Actuated Butterfly Valve

,

DN50 Pneumatic Actuated Butterfly Valve

,

Pneumatic Water Butterfly Valve

Basic Properties

Place of Origin:
China
Brand Name:
MDW, Mandiwi
Model Number:
DN50, DN400

Trading Properties

Minimum Order Quantity:
5 pieces
Price:
$260.00/pieces 5-49 pieces
Packaging Details:
1pcs per corrugated carton, with foam protection
Delivery Time:
10-15 working days
Payment Terms:
T/T, LC, Trade assurance Order, Western Union

Product Description

Customized Pneumatic Actuated Water Butterfly Valve DN50-DN400 For Water Liquid Media

Products Description:


Mandiwi wafer butterfly valve is a control valve commonly used in industrial piping system.
Its working principle is based on the movement of the disc to open and close the valve.

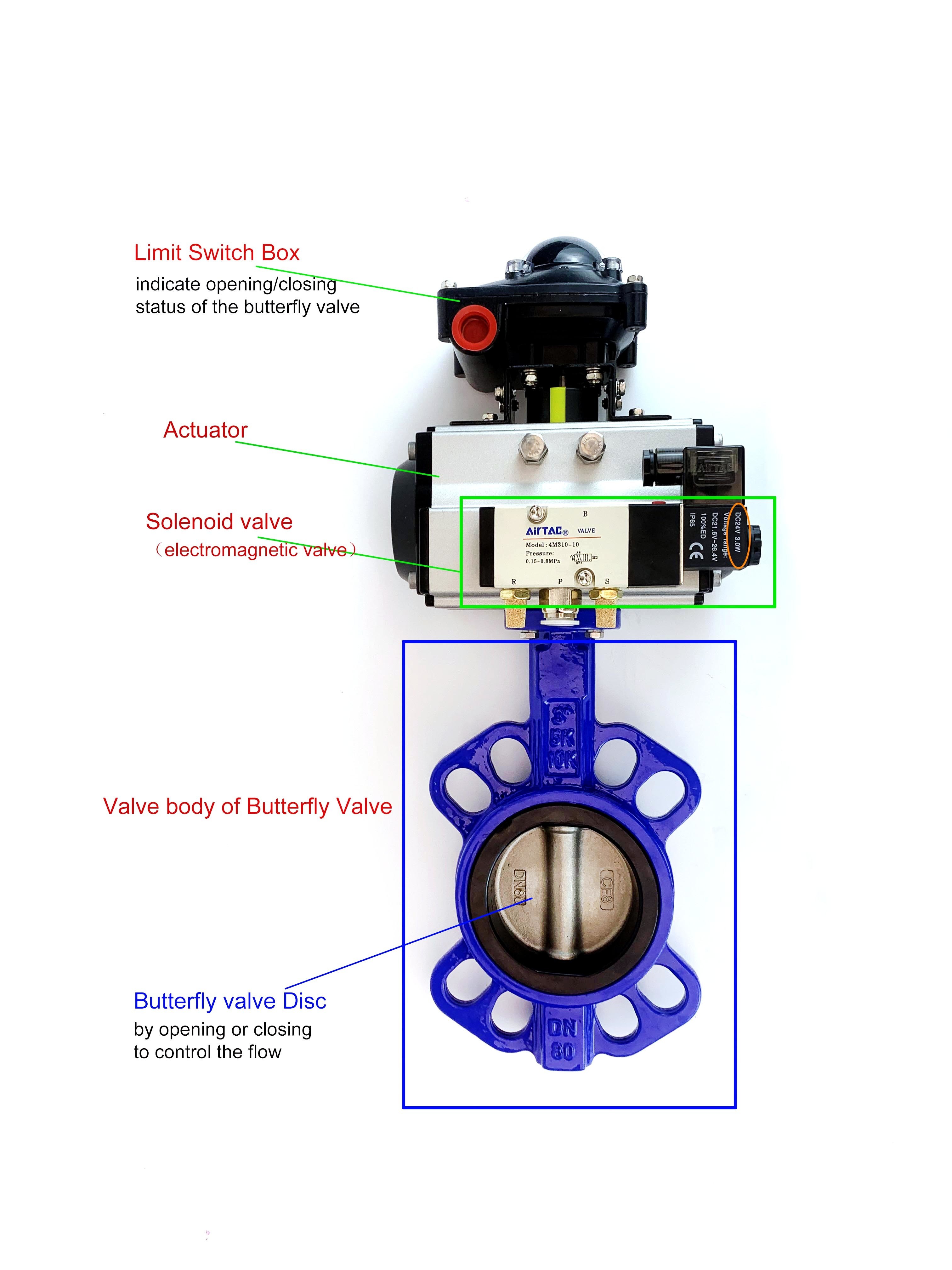

The main components of the water wafr butterfly valve include the valve body, valve disc, valve stem, valve seal, etc.

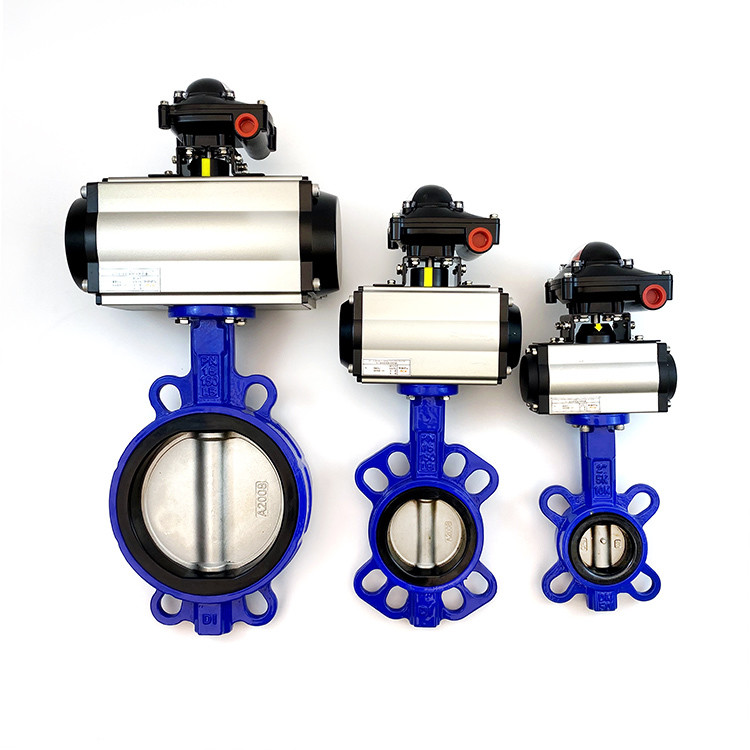

Popular sizes in DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300,etc.

The durability test of opening and closing is more than 100,000times.

Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 0
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 1
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 2



Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 3


Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 4


1. Swivel Disc in Stainless Steel

Water butterfly valves use stainless steel disc

Highly abrasion-resistant, good toughness.corrosion resistant,

Excellent strength and small flow resistance.



2. Reliable Sealing Performance

Excellent sealing performance, effectively prevent the leakage.

Different materials available, such as EPDM,  NBR, PTFE, etc.

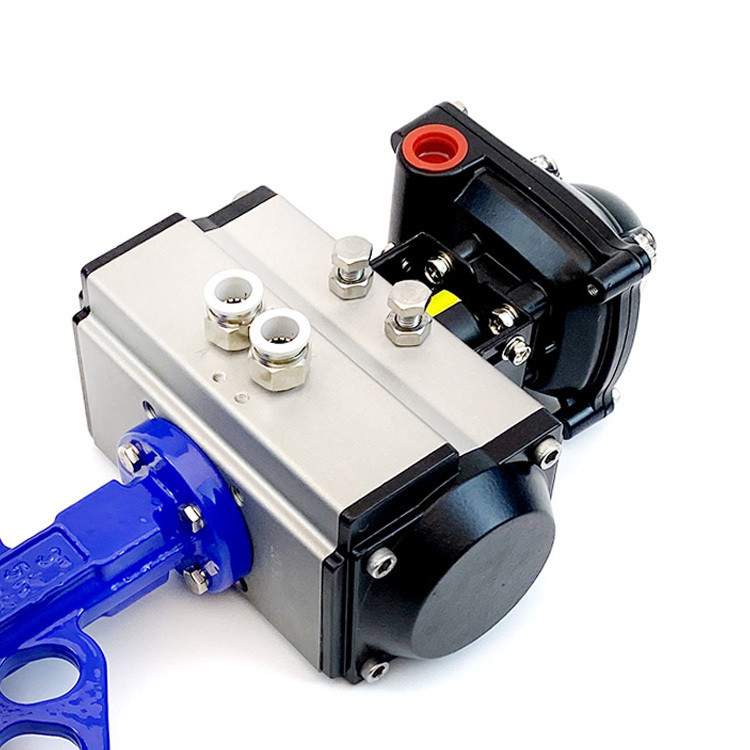

3. NAMUR Standard Pneumatic Actuator with Anodized Aluminum Alloy Cylinder

The pneumatic actuator’s surface is anodized and hardened, with high strength,  high temperature, good wear resistance, resistance and corrosion resistance.

Meet NAMUR standard and ISO5211 standard.

Easy to fit and handle, Low maintenance cost.popular welcomed.



4. Customization is available

Can customize according to working condition and using demands, including different materials, different sizes, different actuating method, different painting colors, etc.



5.The durability test of opening and closing is more than 100,000times.


Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 5
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 6
Product packaging:
export carton,
wooden case,
etc


Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 7



Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 8


Why Choose Us
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 9
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 10
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 11
Company Profile
Customized Pneumatic Actuated Butterfly Valve DN50-DN400 For Water Liquid Media 12
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
