273/219/323 Intermediate Hanger Bearing of Screw Conveyor for Lime and Similar Powder
Product Summary
Product Description: WAM original quality, Alluminum Alloy Intermediate Hanger Bearings for screw conveyor WAM /sicoma Intermediate Hanger Bearing for 168/219/273/323mmc cement screw conveyor Code for ES168 XLR040B015T44 Code for ES193 XLR040B017T44 Code for ES219 XLR040B020T44 Code for ES273 ...
Product Custom Attributes
screw conveyor hanger bearing
,intermediate hanger bearing for lime
,powder conveyor bearing with warranty
Basic Properties
Trading Properties
Product Description
Product Description:

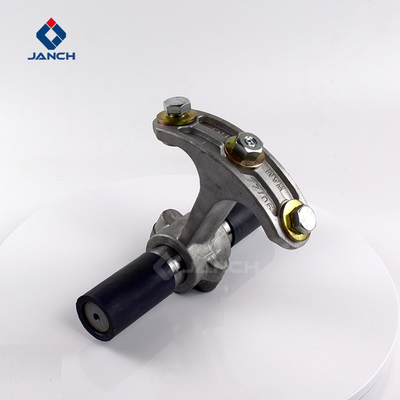

WAM original quality, Alluminum Alloy Intermediate Hanger Bearings for screw conveyor
WAM /sicoma Intermediate Hanger Bearing for 168/219/273/323mmc cement screw conveyor
Code for ES168 XLR040B015T44
Code for ES193 XLR040B017T44
Code for ES219 XLR040B020T44
Code for ES273 XLR040B025T44
Code for ES323 XLR040B030T44
| Code | φ Shaft |
φ Screw |
A | B | C | φD | E | F | G | L | DIN5482 φM |
KG |
| XLR028B010T44 | 028 | 114 | 54 | 35 | 30 | M 10 | 8 | 65 | 40 | 170 | 28x25 | 1.7 |
| XLR028B012T44 | 028 | 139 | 66.5 | 35 | 30 | M 10 | 10 | 65 | 40 | 170 | 28x25 | 1.8 |
| XLR028B015T44 | 040 | 168 | 80 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 3.5 |
| XLR028B017T44 | 040 | 193 | 92.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 3.9 |
| XLR028B020T44 | 040 | 219 | 105.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 4.3 |
| XLR028B025T44 | 040 | 273 | 132.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 4.5 |
| XLR028B030T44 | 040 | 323 | 157.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 5 |

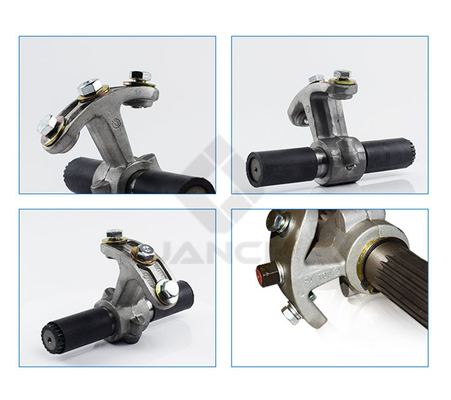

Details of the hanger bearings:
hex bolts, oil nozzle seat, oil nozzle, bearing seat, bearing, bearing cover, etc
