Quality Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin factory

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin

Name: Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin
Brand: Hunan Jiancheng Technology Co., Ltd
Price: 27.00 USD
Availability: InStock

Product Summary

Highly Durable Butterfly Valves For Water Admixture Liquid In Batching Plant Water Bin Products Description: Mandiwi butterfly valves, wafer type, pneumatic actuated. with solenoid valve. DN150 Different sizes available, Normally from DN50 to DN400. Can be customized according to customer's ...

Product Custom Attributes

Application:

General

Port Size:

50~400mm

Power:

Pneumatic

Temperature Of Media:

Low Temperature, Normal Temperature

Structure:

BUTTERFLY

Media:

Water, Liquid, Etc

Customized Support:

OEM, ODM

Product Name:

Pneumatic Actuator Powder Butterfly Valves

DN(Nominal Diameter):

50mm(4")~400mm(16")

Driving Mode:

Pneumatic, Electric, Or Manual

Sealing Material:

NBR, EPDM

Suitable Media:

Powder, Water, Cement, Sewage, Admixture Liquid,etc

Disc Material:

Stainless Steel, Ductile Iron

Body Material:

Ductile Iron

Working Pressure:

1.0-1.6Mpa (10-16bar)

Working Temperature:

-20℃ ~+80℃

Connection:

Wafer Connection

Highlight:

Admixture Liquid Butterfly Valves

Batching Plant Butterfly Valves

Water Bin Butterfly Valves

Basic Properties

Place of Origin:

China

Brand Name:

MDW, Mandiwi, Customized

Trading Properties

Minimum Order Quantity:

5 pieces

Price:

$260.00/pieces 5-49 pieces

Packaging Details:

1pcs per corrugated carton, with foam protection

Delivery Time:

10-15 working days

Payment Terms:

T/T, LC, Trade assurance Order, Western Union

Supply Ability:

3000pcs per month

Tags:

Pneumatic Butterfly Valve

Pneumatic Actuator Valve

Powder Butterfly Valve

Product Description

Highly Durable Butterfly Valves For Water Admixture Liquid In Batching Plant Water Bin

Products Description:

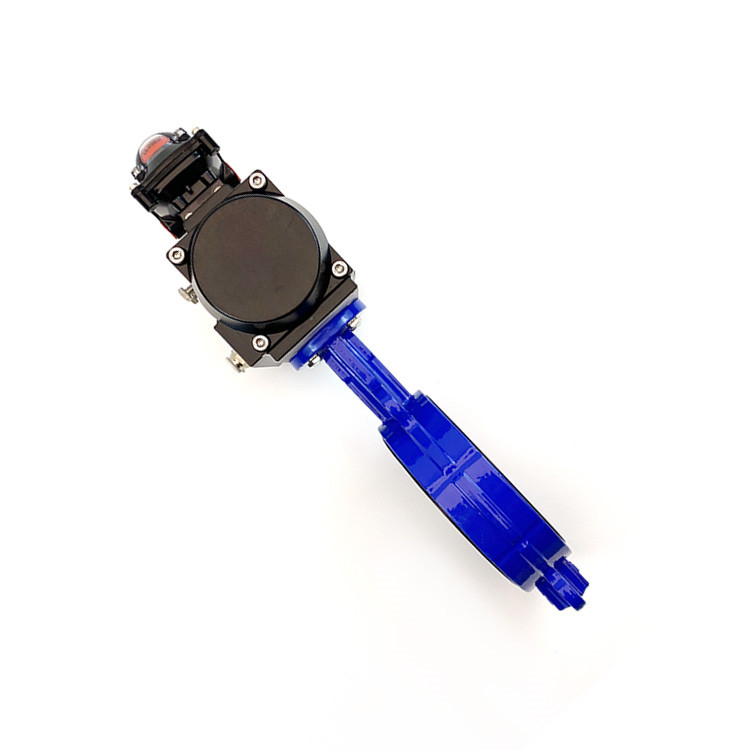

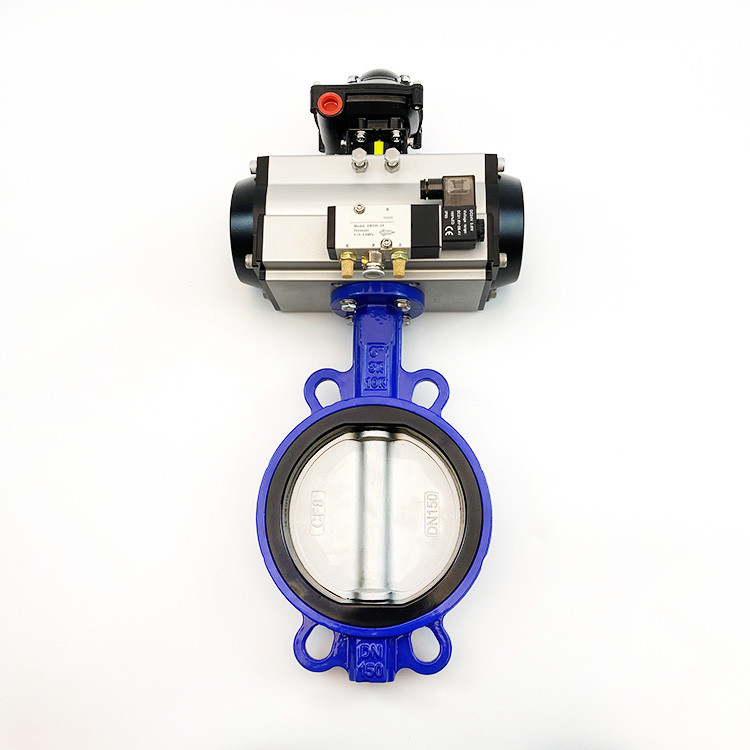

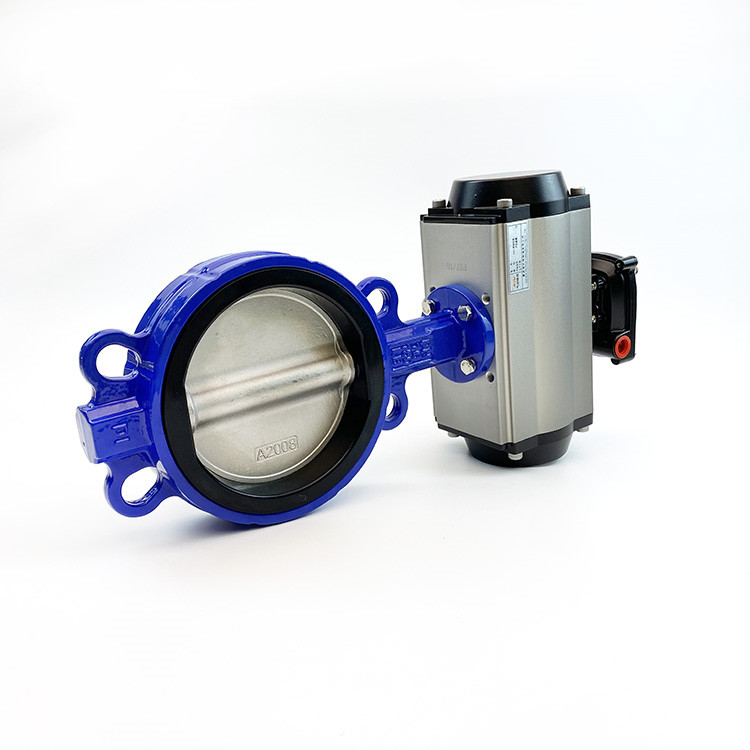

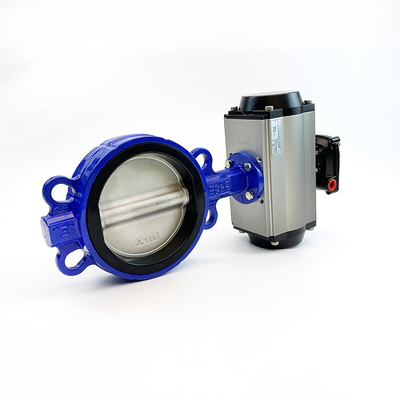

Mandiwi butterfly valves, wafer type, pneumatic actuated.

with solenoid valve. DN150

Different sizes available, Normally from DN50 to DN400.

Can be customized according to customer's requirement.

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin 0

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin 1

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin 2

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin 3

Mandiwi wafer butterfly valve is a control valve commonly used in industrial piping system.

Its working principle is based on the movement of the disc to open and close the valve.

The main components of the water wafr butterfly valve include the valve body, valve disc, valve stem, valve seal, etc.

The durability test of opening and closing is more than 100,000times.

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin 4

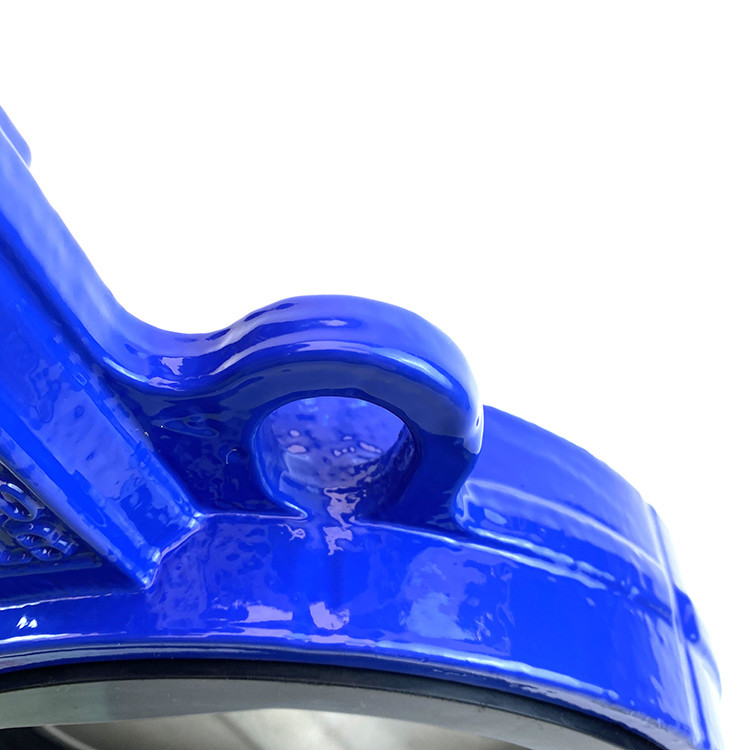

1. Swivel Disc in Ductile Iron or Stainless Steel

Water butterfly valves use stainless steel disc, and VFS series powder butterfly valve choose ductile iron.

Highly abrasion-resistant, corrosion resistant, good toughness, Excellent strength and small flow resistance.

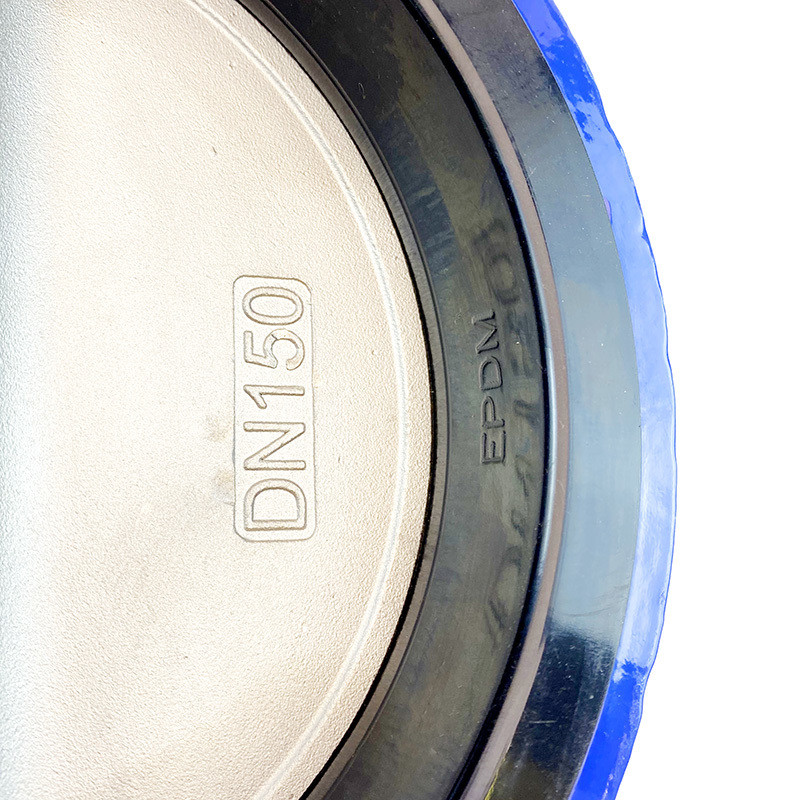

2. Reliable Sealing Performance

Excellent sealing performance, effectively prevent the leakage.

Different materials available, such as NBR, EPDM, PTFE or FDA-grade seal, etc.

3. NAMUR Standard Pneumatic Actuator with Anodized Aluminum Alloy Cylinder

The pneumatic actuator’s surface is anodized and hardened, with high strength, good wear resistance, high temperature resistance and corrosion resistance.

Easy to fit and handle, low maintenance cost.

4. Customization is available

Can customize according to working condition and using demands, including different materials, different colors, etc.

Water Admixture Liquid Butterfly Valves In Batching Plant Water Bin 5
