WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments

5 pieces
MOQ
$119.00/pieces 5-49 pieces
Price
WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM
Product Name: WAM Pneumatic Actuator, Swivel Actuator
Application: Applied On Valves To Control Opening And Closing
Operating Temperature: -20℃~+80℃
Operating Pressure: 2~8 Bar
Highlight:

Pneumatic Butterfly Valve Assembly

,

Powder Butterfly Valve Assembly

,

VFS Butterfly Valve Assembly

Basic Infomation
Place of Origin: China
Brand Name: WAM
Model Number: CP101
Payment & Shipping Terms
Packaging Details: 1pcs per box
Delivery Time: 3-7 working days
Payment Terms: T/T, LC, Trade assurance Order, Western Union
Product Description

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments

Products Description:

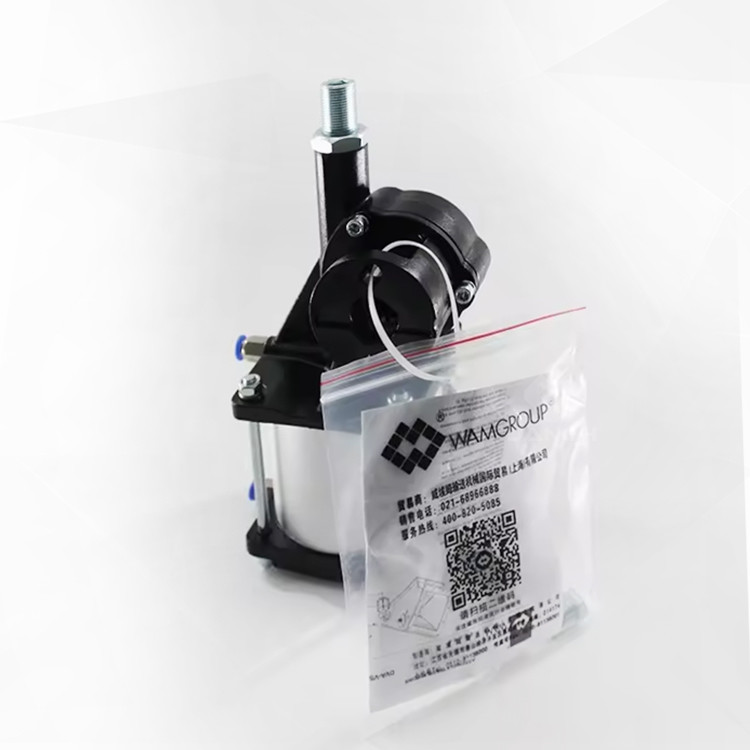

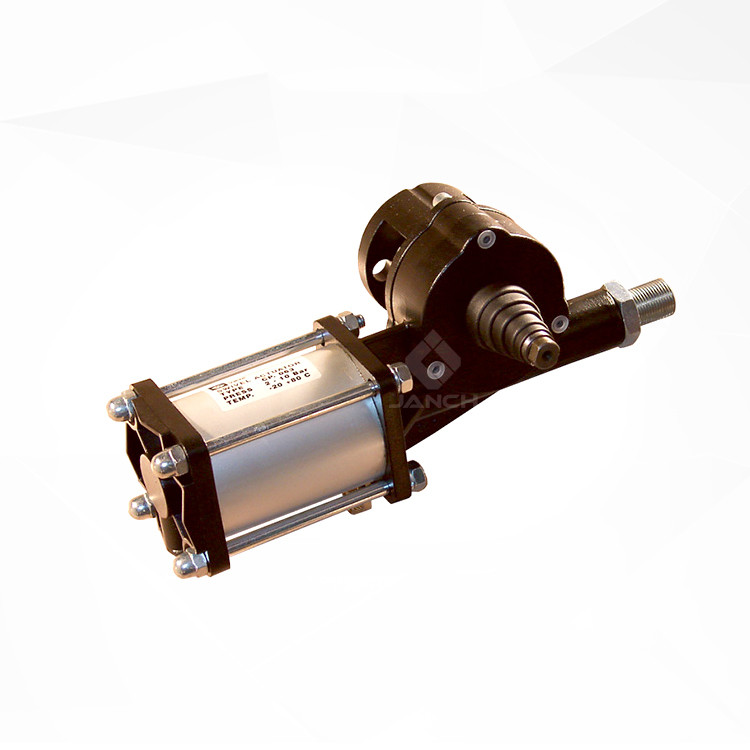

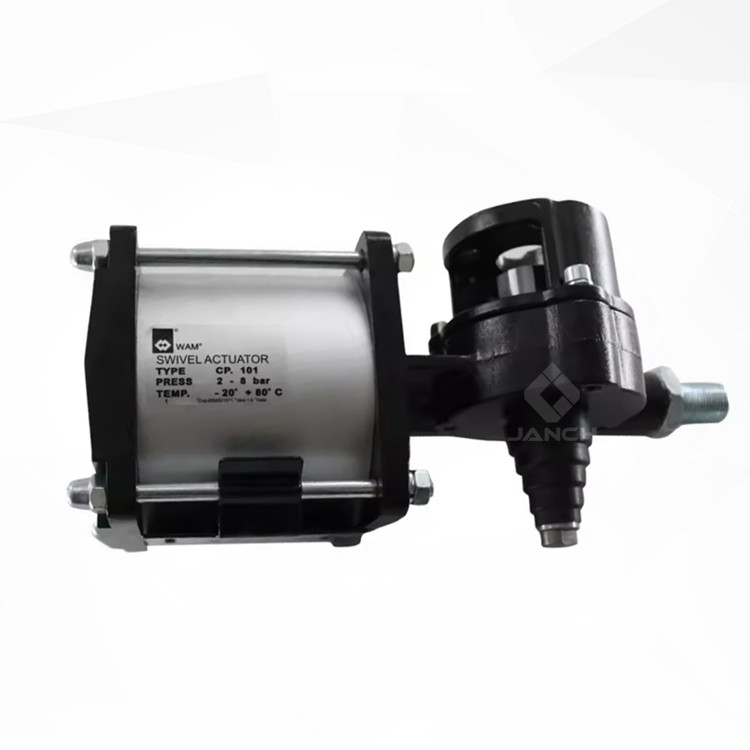

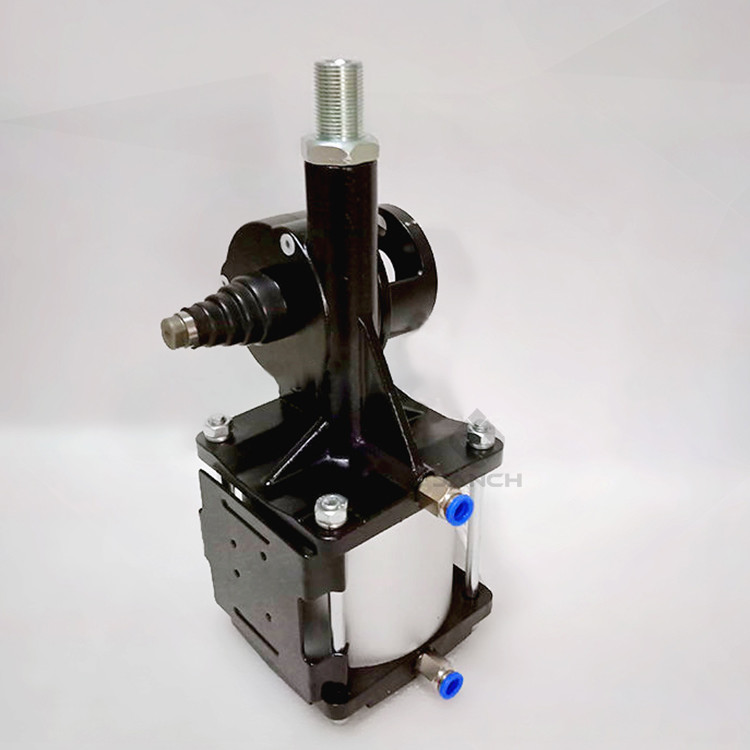

ITALY WAM CP101 Swivel Pneumatic Actuator for VFS Butterfly Valves



WAM CP series Pneumatic Actuators are suitable for 90-degree opening and closing of WAM Butterfly Valves and VFS series butterfly valves
WAM CP actuators come with splined shaft coupling bush according to DIN 5482
Operating pressure : 2 ~ 8 bar (29 ~ 116 PSI).





WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 0

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 1

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 2

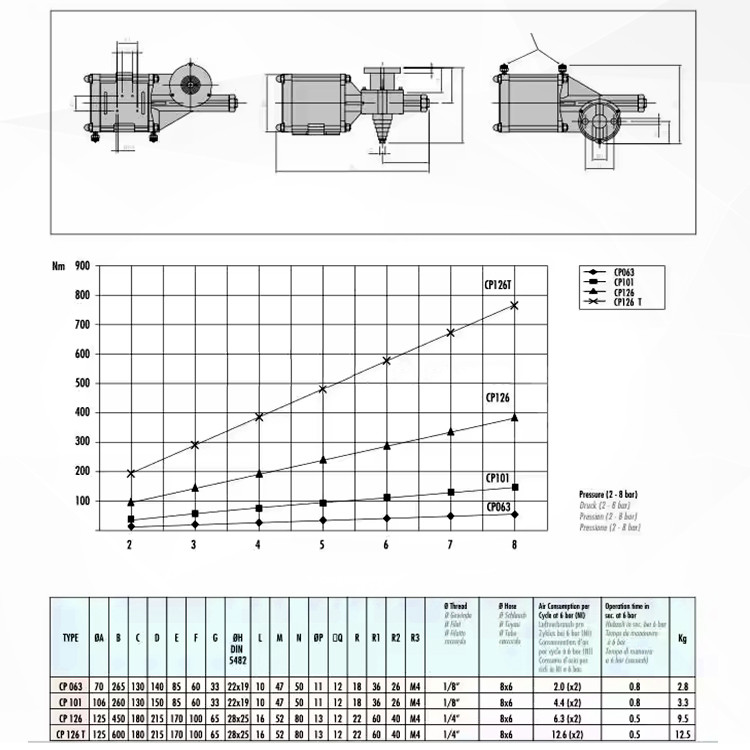

Product Paramenters:



Model Size of butterfly valve (DN) Weight (kg)
CP63 DN100, DN150, 2.8KG
CP101 DN200, DN250, DN300 3.3kg
CP126 DN350, DN400 9.6kg

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 3







Options & Accessories

* Limit switch boxes
* 5/2 solenoid valves
* Solenoid coils

Benefits
* Sturdy, durable compact design
* Perfectly compatible accessories
* Matchless cost effectiveness due to series production

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 4WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 5WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 6



Connection Gear

The connecting gear is used to connect with the valve stem and has a fixed installation size



Limit Switch Box MIC23

The limit switch can indicate the valve switch status, or the electric signal can feedback the valve switch status



Limit screw

The limit screw is used to adjust the valve angle. When the valve is not closed in place, the limit screw can be adjusted





Application:



WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 7

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 8

WAM VFS Powder Drive Pneumatic Butterfly Valve Assembly For -20C- 80C Environments 9
